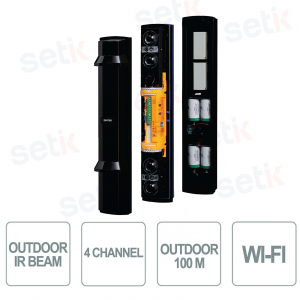

QUAD infrared barrier with low absorption for outdoor use, range 100m - wireless - Optex

QUAD infrared barrier with low absorption for outdoor use, range 100m - wireless - Optex

 
-32%

Quad WI-FI infrared barrier with low power consumption and range up to 100 meters, ideal for reliable security applications. Supplied with 4 SAFT LSH20 lithium batteries, it offers automatic gain control (AGC) for stable and precise performance. 4 beam frequencies IP65. - SL-350QFR

Artikel-Nr.: SL-350QFR

Marke: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Entdecken Sie alle optex-Produkte im umfangreichen Katalog der Außensensoren. Sie finden optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Die ganze Welt der Optex Einbruchmeldeanlagen

[short_description] =>

Optex

OPTEX ist Hersteller und weltweit führend in der Hochleistungs-Sensortechnologie. Seit mehr als 40 Jahren auf dem Markt, hat Optex Tausende von Kunden auf der ganzen Welt, die sie jeden Tag für ihre zuverlässigen Detektionssysteme wählen.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex einbruchsicherungssensoren, optex katalog, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR QUAD LOW CONSUMPTION ACTIVE INFRARED BARRIER WI-FI - 100M RANGE - LONG RANGE - OPTEX

Barriera a raggi infrarossi QUAD Wi-Fi

Product details

  • QUAD infrared barrier low consumption outdoor long range
  • Wi-Fi
  • Range 100 m outdoors
  • Consumption: 745mA
  • Power supply: 3.6V DC
  • Working temperature: -20°C ~ +60°C
  • Dimensions: 452 x 83 x 138 mm

Technical data sheet

Model SL-350QFR
Maximum detection range 100m/350ft.
Maximum distance from arrival 1000m/3500ft
Detection method Quad infrared beam interruption detection
Selectable beam frequency 4 channels
Interruption time Variable between 50/100/250/500 ms (4 steps)
Power source Recommend: 3.6V, 13.0Ah
LSH20 lithium batteries manufactured by SAFT
Operating range: 3.2 V - 4.0 V lithium batteries
Transmitter: 2 or 4 units, Receiver: 2 or 4 units
Current draw 745µA
Transmitter: 420 µA + Receiver: 325 µA (at 25°C, 3.6 VDC)
Battery life Transmitter: Approx. 4 years
Receiver: Approx. 5 years
Output
Alarm output Form C-Solid State Switch: 3.6 VDC, 0.01 A
Alarm period 2 sec (±1) (Nominal)
DQ output Form C-Solid State Switch: 3.6 VDC, 0.01 A
(Receiver only)
Low battery output NC (mechanical switch): 3.6 VDC, 0.01 A
Tamper output (cover, back box, main unit) NC (contact output): 3.6 VDC, 0.01 A Opens when cover, main unit or back box is removed.
Indicator
Alarm indicator (Receiver) Alarm: ON
Light receiving: OFF
Level indicator (Receiver) No light receiving: OFF
Light receiving: Flickering or OFF
Power indicator (Transmitter) Power ON: ON
Power OFF: OFF
Low battery indicator Voltage reduction: Flickering
Operating temperature -20°C - +60°C (-40°F - 140°F)
Operating humidity 95% (max.)
Alignment angle ±90° Horizontal, ±10° Vertical
Dimensions 452 x 83 x 138 mm
Weight 3300 g (Total weight of Transmitter + Receiver, excluding accessories)
International protection IP65
