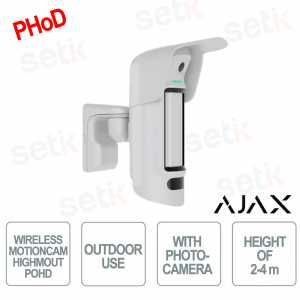

Ajax MotionCam Outdoor HighMount PhOD Jeweler: PIR-Microwave Sensor with HDR Photo Verification and Tamper Protection
99164.282.WH1 #99164 Ajax MotionCam Outdoor HighMount (PhOD) Jeweller is a professional motion detector designed for elevated installations from 2 to 4 meters, combining dual PIR sensors and microwave technology for precise detection with advanced false alarm filtering via SmartDetect. The integrated camera offers HDR photo verification up to 640×480 px with IR illumination, ensuring clear images even in low light conditions. Jeweller & Wings encrypted communication ensures reliable transmission up to 1,700 meters, while robust protection with anti-masking, tamper and magnetometer makes the device resistant to tampering attempts. Designed to last, it offers IP55 construction, a wide operating range from –25°C to +60°C and a battery life of up to 3 years thanks to the pre-installed batteries. Ajax
INSTALLATEUR FINDEN
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
39293.121.WH1 | PIR motion detector with extended photo verification capability - for outdoor installation at a height of 2-4 m
The Ajax MotionCam Outdoor HighMount (PhOD) Jeweller, 99164.282.WH1, is a professional detector designed for elevated installations from 2 to 4 meters, equipped with two PIR sensors and a microwave sensor for stable and intelligent detection with false alarm filtering via SmartDetect. The integrated camera provides HDR photo verification up to 640×480 px with IR illumination, ensuring clear images in any conditions. Encrypted Jeweller & Wings communication offers coverage up to 1,700 m, while advanced protection with anti-masking, tamper and magnetometer prevents tampering and interference. With IP55 construction, operation from –25°C to +60°C and battery life of up to 3 years , this sensor ensures maximum reliability for perimeter security.
Main specifications:
- Dual PIR + microwave for high precision and stable detection
- HDR photo verification 640×480 px with IR illumination and series of up to 5 images
- Encrypted and interference-resistant Jeweller & Wings communication
- Anti-sabotage protection with anti-masking, tamper and magnetometer
- P55 and climate resistance from –25°C to +60°C
- Battery life up to 3 years with pre-installed CR123A batteries
Further details
✅ Jeweler Communication :
The Jeweller protocol ensures secure and stable radio communication up to 1,700 m , using advanced encryption, frequency hopping and regular polling to monitor device status in real time, thus ensuring reliable event transmission even in interference scenarios.
✅ Wings Communication :
Wings is the dedicated photo-verification channel, designed to send HDR images quickly and securely. Thanks to end-to-end encryption and intelligent packet management, it offers fast, consistent transmissions independent of the Jeweller channel, always ensuring image delivery even in difficult radio conditions.
✅ Detection :
The system integrates two PIR sensors and a microwave sensor , enabling highly accurate multi-level detection. This approach dramatically reduces false alarms by only triggering the alarm when both sensors confirm motion. The detection area reaches up to 15 meters , with a 90° vertical and 90° horizontal angle, offering full coverage from installations between 2 and 4 meters high.
✅ Photo verification :
The built-in HDR camera provides images up to 640x480 px , supported by IR illumination for clear shots even in the dark. The device can send series of 1 to 5 photos, allowing for detailed and immediate visual assessment in the event of an alarm, programmed scenario, or manual request, significantly improving the accuracy of intervention.
✅ Anti-sabotage protection:
The sensor incorporates anti-masking , tamper protection, and an advanced magnetometer that detects changes in the device's position. This combination provides active protection against cover-up, removal, or tampering, with immediate notifications to the user and the security system.
✅ Main power supply:
The device works with 6 pre-installed CR123A batteries , ensuring up to 3 years of battery life thanks to optimised energy management that preserves performance even in extreme climate conditions from –25°C to +60°C.
✅ Optional power supply:
It is possible to connect an external 12–24 V power supply, ensuring operational continuity even in contexts where it is preferable to eliminate exclusive dependence on batteries, thus obtaining an even more stable solution for professional installations.
Technical data sheet
| 99164.282.WH1 | |
| Communication | |
| Jeweler communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reaction |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,700 m up to 5,550 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reaction |
| Radio signal range | Up to 1,700 m up to 5,550 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. |
| Detection | |
| Sensitive element | 2 × PIR sensors 1 × K-band microwave sensor Operating frequency: 24 GHz |
| Motion detection distance | up to 15 m up to 49 ft When installed at a height of 2–4 m When installed at a height of 6.6–13.0 ft Depends on the sensitivity level adjusted in the device settings. |
| Motion detection angles | horizontal: 90° |
| Motion detection speed | from 0.3 to 2 m/s from 1 to 6.6 ft/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| Pet immunity | weight: not relevant height: up to 80 cm |
| False alarm prevention | SmartDetect Software algorithm |
| Temperature compensation | Effective movement detection in temperatures from −25 °C to +60 °C. Effective movement detection in temperatures from −13 °F to 140 °F. |
| Photo verification | |
| Photo by alarm | A built-in camera is activated if the detector is armed, and motion is detected. |
| Photo on demand | User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default. |
| Photo by scenario | A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default. |
| Photo by schedule | The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming | The detector automatically takes photos when the security state is changed. |
| Photo resolution |
|
| Camera viewing angles |
|
| IR backlight | For night photography and low light conditions. |
| Pictures in a series |
|
| Photo delivery time |
|
| Recommendations | It is recommended to install the detector at a height of 2–4 m. It is recommended to install the detector at a height of 6.6–13.0 ft. The pet immunity feature is not available for this device. The device is designed for indoor and outdoor use. |
| Anti-sabotage protection | |
| Tamper alarm | Notifications of attempts to remove the detector from the mounting panel. |
| Magnetometer | detects attempts to tilt or shift the detector or detach it from the surface |
| Anti-masking system | detects attempts to block the detector view. |
| Holding screw | to secure the detector on SmartBracket |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweler settings. |
| Main power supply | |
| Battery | 6 × CR123A batteries Pre-installed. |
| Type | type C |
| Calculated battery life | up to 3 years |
| Detector operating voltage range | 3.8−6.5 V⎓ |
| Detector nominal operating voltage | 6 V⎓ |
| Quiescent detector current consumption at nominal voltage | 45 μA |
| Maximum detector current consumption at nominal voltage | 1,200 mA |
| Full battery capacity | 4,800 mAh |
| Low battery voltage | 4.2 V⎓ |
| Low battery recovery voltage | 5.0 V⎓ |
| End-of-life battery voltage | 3.8 V⎓ The device is switched off. |
| End-of-life battery capacity | 300 mAh |
| Manufacturer | Huiderui |
| Optional power supply | |
| External supply operating voltage | 8−24 V⎓ The batteries serve as a backup when an external power supply is connected |
| Enclosure | |
| Color | White |
| Dimensions with the swivel mount | 234 × 98 × 230 mm 9.21" × 3.86" × 9.06" |
| Dimensions without the swivel mount | 234 × 98 × 137 mm 9.21" × 3.86" × 5.39" |
| Weight with the swivel mount | 1,010 g 35.6 oz |
| Weight without the swivel mount | 620 g 21.9 oz |
| Operating temperature range | from −25°C to +60°C from −13 °F to 140 °F |
| Operating humidity | up to 95% |
| Casing protection class | IP55 |
| Complete set | MotionCam Outdoor HighMount (PhOD) Jeweller 6 × CR123A battery (pre-installed) SmartBracket mounting panel Swivel mount Hood Installation kit Quick start guide |
| Warranty | 24 months |
