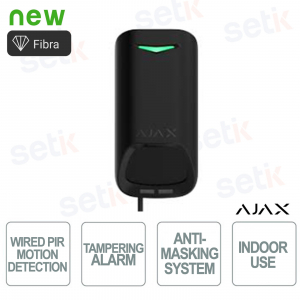

Ajax Superior G3 Anti-intrusion Sensor with Wired Fiber Technology Black

Ajax Superior G3 Anti-intrusion Sensor with Wired Fiber Technology Black

Neu

AJAX FIBRA | 130575.09.BL1 #130575 The Ajax Superior MotionProtect G3 Fibra sensor, available in the black version, is a latest-generation wired motion detector, ideal for advanced protection of indoor environments. Equipped with dual PIR technology with LISA algorithm for precise and reliable analysis, it detects even the smallest movements, reducing false alarms. Thanks to the active IR anti-masking function and tamper protection, it guarantees maximum security. Installation on a Fibra line ensures stable communication and efficient power supply. A device designed for those seeking precision, reliability and high performance in all conditions. Black color.

Technical Data Sheet

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects .
To purchase and install these products you must have completed the certification or be enrolled in a certification course . Find out more



Artikel-Nr.: 130575.09.BL1

Marke: Ajax Systems

EAN: 4823114074462

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

130575.09.BL1 | AJAX SUPERIOR MOTION PROTECT G3 FIBER - WIRED PIR MOTION DETECTOR WITH ANTI-MASKING SYSTEM

Ajax Systems

The Superior MotionProtect Plus G3 Fibra from Ajax is a high-security wired motion detector designed for high-risk indoor environments such as banks, jewelry stores and industrial facilities. It combines PIR and K-band microwave sensors with the SmartDetect algorithm for precise detection and reduced false alarms. Equipped with an anti-masking system and three anti-sabotage tampers, it provides advanced protection. Communication takes place via the Fibra wired protocol, with a range of up to 2,000 meters. Certified EN 50131 Grade 3, it is compatible with Superior Hub Hybrid (2G/4G) and offers remote management via the Ajax app. Color Black

Main specifications:

- Dual detection technology: PIR and K-band microwave sensors for accurate detection and reduced false alarms.

- Advanced anti-masking system: Detects attempts to obstruct or tamper with the lens.

- Wide coverage: Detection up to 15 meters with 90° horizontal and 71° vertical angles.

- Secure communication: Fiber protocol with advanced encryption and range up to 2,000 meters.

- Grade 3 Certification: Complies with EN 50131 for high-security systems

- Remote management: Configuration and control via Ajax app

Further details

The Superior MotionProtect G3 Fibra motion detector from Ajax is a high-performance wired sensor designed to ensure maximum security in critical environments such as banks, offices or industrial facilities. Thanks to communication via the Fibra protocol and an intelligent detection system, it ensures accuracy, reliability and advanced protection against sabotage.

Fiber Communication Technology:
It uses the proprietary Fibra wired communication protocol, which combines the reliability of the wire with the transmission speed typical of wireless systems. It guarantees a range of up to 2,000 meters with advanced data encryption.
Grade 3 EN 50131 Certification:
Compliant with European regulations for security installations in highly critical contexts, such as banks and government infrastructures.
Wired connection:
The sensor integrates seamlessly with the wired infrastructure of the alarm system, minimizing interference and vulnerabilities typical of wireless solutions.
High precision detection:
Equipped with SmartDetect technology, the sensor detects human movements up to 15 meters away and offers 90° horizontal and 71° vertical coverage, drastically reducing false alarms.
Anti-sabotage protection:
It has three tampers to detect opening, removal from the surface and detachment from the base. It also has an anti-masking system compliant with Grade 3 standards.
Power supply:
The device is powered directly from the Fiber bus, eliminating the need for batteries and ensuring continuous and stable operation even in critical situations.

Technical data sheet

130575.09.BL1
Standards compliance
EN 50131 (Grade 3)
PD 6662:2017
SSF
Compatibility
Superior Hub Hybrid (2G)
Superior Hub Hybrid (4G)
Superior Hub Hybrid (4G) (without casing)
Communication with the hub
Fiber Communication Technology
Communication range up to 2,000 m (in open field)
Detection
Sensor type
  • 1 x PIR sensor

Operating frequency 24 GHz

Motion detection distance from 0.5m to 1.5m
If installed at a height of 2.4m
Angle of movement
  • vertical: 72°
  • horizontal: 90°
Motion detection speed from 0.1 to 4 m/s
Diet
Fiber Line 7-30 V up to 90 mW
Installation
Operating temperatures From -10 °C to +40 °C
Maximum permissible humidity Up to 75%
Protection class IP30
Installation height 2.4 m
Custody
Color: Black

Dimensions: 120x62x52

Weight: TBC

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
