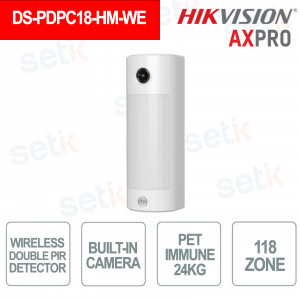

DS-PDPC18-HM-WE – PIR SENSOR WITH BUILT-IN CAMERA - UP TO 18 METERS - 118 ZONES - PET IMMUNE

Hikvision AXPro Alarms

The Hikvision DS-PDPC18-HM-WE is a wireless PIR sensor with a built-in video camera, designed to ensure reliable video alarm verification with real-time images sent to the user or control panel. Thanks to the dual PIR with 18-meter, 90-degree coverage, animal immunity up to 24 kg, and IP65 resistance, the device ensures accurate detection even in challenging outdoor environments. The polarized IR lens improves night-time illumination, while 868 MHz CAM-X technology with AES-128 encryption ensures secure communication up to 800 meters. Easy to install and configure via the app, it integrates tamper protection, a replaceable battery, and a battery life of up to 3 years, making it an ideal solution for advanced perimeter security.

Main features:

- Dual PIR detection with 18m / 90° coverage and 118 zones

- Built-in camera with JPEG images and IR illumination up to 12 m

- IP65 certification and animal immunity up to 24 kg

- CAM-X communication at 868 MHz with AES-128 and 800 m range

- Remote configuration via app and front/rear tamper

- Powered by 4 CR123A batteries with up to 3 years of battery life


Further details

Detection Performance :
It uses dual PIR technology with integrated video verification for extremely accurate detection, ensuring coverage of up to 18 meters with a 90° angle, 118 sensitive zones and pet immunity up to 24 kg; digital temperature compensation and the 20,000 lux white light filter guarantee stable performance even in complex environmental conditions.
Features :
It includes advanced digital processing, sealed optics resistant to external agents, front and rear tamper, ambient temperature indicator and signal strength indicator, ensuring maximum reliability and constant monitoring of the device status.
Video:
Equipped with a built-in camera with a viewing angle of 113°(H) and 60°(V), it supports JPEG images in different resolutions (up to 640×480 ) and IR illumination up to 12 meters, offering clear video verification both day and night thanks to the automatic color/B&W mode.
Interface :
It features a power button with automatic enrollment, a blue LED for alarm indication, and a simple interface that makes it easy to configure and diagnose the device.
Transmission :
It uses CAM-X two-way wireless technology at 868 MHz with AES-128 encryption for secure communication, with a range of up to 800 meters in open field; it supports various addition modes (Power Up, Remote ID, QR code), simplifying installation and system integration.

Technical data sheet

DS-PDPC18-HM-WE
Detection Performance
Detection Method Passive Infrared,Video Verification
Detection Range 18m
Detection Angle 90°
Detection Zones 118
Detectable Speed 0.3~2m/s
Sensitivity Auto, High, Low
Pet Immunity 24kg
White Light Filter 20000lux
Digital Temperature Compensation Support
Feature
Digital Processing Support
Sealed Optics Support
Tamper Protection Front, Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Video
Field Angle 113°(H), 60°(V)
Image Type JPEG
Resolution 640*480,320*240,160*120
Fill Light Infrared Light
Fill Range 12m
Day/Night Switch Color/Black & White
Interface
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology

CAM-X
Wireless

Transmission Method

Two-Way RF Wireless

Transmission Frequency

868MHz

Transmission Security

AES-128 Encryption

Transmission Range(Free Space)

800m

Enrolling Method

Power up, Remote ID, QR Code

Electrical Characteristics
Standard Battery Life Up to 3 years at normal temperature (The battery working time can be significantly reduced at low temperatures)
Power Supply 8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Compression

Battery powered

Battery Type

CR123A × 4

Typical Voltage

3V

General
Operation Temperature

-25 °C to 60 °C (-13 °F to 140 °F)

Storage Temperature

-25 °C to 60 °C (-13 °F to 140 °F)

Operation Humidity

10% to 90%

IP rate

IP65

Dimensions (WxHxD)

67.6mm × 193.4mm × 65mm

With

500 g

Mounting Height

2.5 to 3 m high mount
0.8 to 1.2 m low mount

Mounting Method

Wall

Application Scenario

Outdoor

Bracket

Adjustment bracket included

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
