HY-SA21A-W2-868 The wireless smoke detector offers high sensitivity with a split-spectrum photoelectric sensor, minimizing false alarms. It communicates on 868 MHz frequency with AES128 encryption and frequency hopping for secure transmission. It is battery operated with up to 3 years of battery life and is equipped with status LED, test/silence function and 85–90 dB siren. It covers an area of 20–40 m², ideal for indoor environments such as homes and offices. Dahua
DAHUA: UNTER DEM EINSTANDSPREIS×
UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
Entdecken Sie die Promo jetzt >>
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

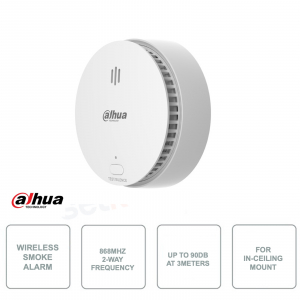

HY-SA21A-W2-868 | WIRELESS SMOKE DETECTOR

The Dahua HY-SA21A-W2-868 wireless smoke detector ensures maximum security in residential and commercial environments. Thanks to two-way communication, compact design and support for advanced 868MHz wireless protocols, it ensures precise smoke detection and reliable integration into Dahua alarm systems. Easy to install and low maintenance, it is ideal for those looking for efficiency, reliability and advanced technology in a single device.
Main specifications:
- 868MHz wireless communication with secure two-way technology
- High sensitivity to smoke for fast and accurate detection
- Compact and modern design suitable for any environment
- Easy installation and long battery life
- Compatible with Dahua alarm systems
- Instant notifications in case of alarm via central system
Further details
✅ Loud sound output:
✅ Battery Powered:

Technical data sheet
HY-SA21A-W2-868 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Principle |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Collection Type |
Smoke |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sampling Period |
10 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensor Type |
Photoelectric |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Type |
Smoke alarm, fault alarm, low battery warning |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Volume |
85dB–90dB(A) at 3 m (9.84 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Mode |
Visual and audible alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Silence Function |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Silence Duration |
About 12 min |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Response Threshold |
0.2dB/m - 0.3dB/m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic Parameters |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light |
Red and green LED indicator |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Led Instructions |
Standby: Green indicator flashes once per minute Low battery warning: Red indicator flashes once per minute |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Coverage Area |
When the height of the space is less than 8 m (3.28 ft), the protection area of a device is 20 m2–40 m2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Life |
3 years |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
3V CR123A lithium battery (replaceable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Current |
Monitoring current: ≤ 35uA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤ 95% RH (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
φ98mm × H43.1mm (φ3.85" × H1.70") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
140g (0.30 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Ceiling Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
TÜV and CE listed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compliance Standard |
EN 14604:2005+AC:2008 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carrier Frequency |
868MHz–868.3MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Distance |
Up to 1000 m (3280.84 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mechanism |
Two way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encryption Mode |
AES128 |
