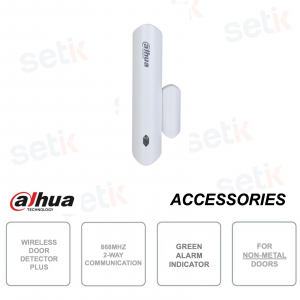

ARD324-W2-868S | WIRELESS CONTACT - DOOR/WINDOW ALARM SENSOR - 868MHz


Dahua

The Dahua Wireless Door Detector Plus ARD324-W2-868S is a wireless security sensor for doors and windows, capable of detecting opening, shock, and tilt, ensuring precise and immediate monitoring. Featuring two-way communication with frequency hopping and AES128 encryption, it ensures stable and secure transmissions up to 1,200 meters. It integrates temperature detection with overheating alarm, anti-jamming protection, and automatic cloud updates, offering maximum reliability for home and professional alarm systems.

Main specifications:

- Detects opening, shocks and tilts up to 25°

- Two-way communication with AES128 encryption

- Wireless range up to 1,200 m in open field

- Overheating alarm and temperature detection

- Long battery life up to 3 years

- Easy setup via App

Further details

Alarm Input::
This sensor supports three alarm input types – Normally Closed (NC), Normally Open (NO), and Pulse Counting – offering maximum flexibility in integration with various wired detectors. This versatility allows it to be easily adapted to multiple security scenarios, ensuring compatibility and reliability in any context .
Functions :
Key features include a green LED alarm status indicator, a power button, remote cloud updates with automatic reset, and low battery detection to prevent service interruptions. It features tamper protection, a temperature detection system from –15°C to +65°C with an overheating alarm and accuracy of ±1°C, and uses sensors such as a three-axis accelerometer and reed switch to monitor movements less than 40 mm, shocks of varying intensity, and tilts up to 25° .

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Product Dimensions

100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" ×

0.80")

Packaging Dimensions

135.0 mm × 98.5 mm × 27.8 mm (5.32" × 3.87" ×

1.09")

Net Weight

70 g (0.15 lb)

Gross Weight

115 g (0.25 lb)

Installation

Bracket mount

Casing Material

PC + ABS

Certifications

THERE IS

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
