63212.166.WH1 | WIRELESS CO DETECTOR WITH REPLACEABLE BATTERIES

Ajax

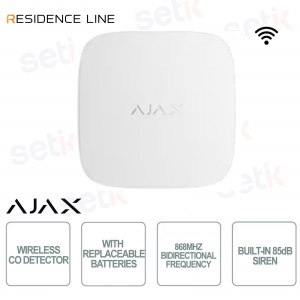

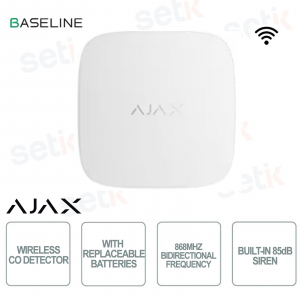

The Ajax FireProtect 2 RB (CO) Jeweler, 63212.166.WH1, white, is a professional wireless detector designed to provide advanced, continuous protection against carbon monoxide in residential and commercial environments. Thanks to Ajax technology, the device ensures rapid and reliable detection, instant notifications, and full integration with the security system, minimizing health risks. Its elegant black design, automatic self-diagnosis, and long-lasting replaceable batteries ensure long-term reliability, easy installation, and minimal maintenance.

Main specifications:

- Highly accurate chemical carbon monoxide sensor with a lifespan of up to 10 years

- Two-way, encrypted Jeweller radio communication with a range of up to 1700 m

- Intelligent interconnected alarms for immediate and coordinated reporting

- Built-in 85 dB siren for effective audible warnings

- Replaceable CR123A batteries with up to 7 years of battery life

- Continuous self-diagnosis and quick installation with SmartBracket support

Further details

✅ Jeweler Communication:
The detector uses two-way, encrypted Jeweller radio technology, designed to ensure stable and secure communication with the Ajax hub, with a range of up to 1700 meters in open areas and constant signal monitoring for reliable alarm transmission.
✅ Carbon Monoxide (CO) Detection:
The high-precision chemical CO sensor continuously monitors carbon monoxide concentrations and triggers an alarm when dangerous levels are reached, offering preventative protection with a sensor lifespan of up to 10 years.
✅ Additional features :
It supports intelligent interconnected alarms , automation scenario activation, real-time notifications via app, status LED indications and a built-in 85 dB siren , improving the responsiveness and overall management of the security system.
✅ Anti-sabotage protection :
It is equipped with anti-tampering and anti-removal systems that detect unauthorized opening or detachment attempts, immediately sending a signal to the hub to maintain a high level of system protection.
✅ Power supply:
It works with replaceable high-efficiency CR123A batteries , designed to guarantee up to 7 years of battery life, with continuous monitoring of the state of charge and preventive warnings in case of low battery.

Technical data sheet

63212.166.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Carbon monoxide (CO) detection
Sensitive element chemical CO sensor
Alarm if accumulated dose of CO is exceeded more than 50 ppm (0.005%) — no more than in 90 minutes
more than 100 ppm (0.01%) — no more than in 40 minutes
more than 300 ppm (0.03%) — no more than in 3 minutes
CO concentration of 400 ppm (0.04%) within 3 hours can be life-threatening. The detector stops notifying about the dangerous level of carbon monoxide when the concentration drops to 50 ppm (0.005%) within one minute.
Sensor life 10 years
After 10 years of operation, the detector must be replaced with a new one.
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm via primary interconnection
If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps.
via fallback interconnection1
At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub.
1 Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.
LED indication green is a power indication
A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291
yellow is an indication of malfunctions
A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life
red is an indication of fire alarms
A LED indicator on the device enclosure lights up when the detector registers a fire alarm
Button on the front panel of the detector In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, pressing turns off the detector sound notification.
Recommendations The device is designed only for indoor installation
SmartBracket mounting panel allows adjusting the position of the detector after installation.
Sabotage protection
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing device authentication
Detection of communication failure within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweler or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
Power supply
For FireProtect 2 RB (CO) 2 × CR123A batteries
Up to 7 years of battery life.
Enclosure
Color White
Dimension 44 × 86 × 86 mm
1.71″ × 3.39″ × 3.39″
Weight 147 g
5.19 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Protection class IP20
Complete set FireProtect 2 RB (CO) Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
