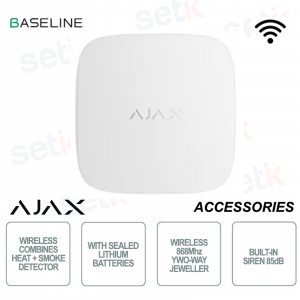

Ajax FireProtect 2 SB White – Wireless Jeweler Smoke and Heat Fire Detector

Ajax FireProtect 2 SB White – Wireless Jeweler Smoke and Heat Fire Detector

 

52254.149.WH1 # 52254 | Ajax FireProtect 2 RB Heat/Smoke Jeweller white is an advanced wireless fire detector designed for reliable protection of residential and professional premises, thanks to the intelligent combination of smoke and heat sensors. It integrates a dual-spectrum optical sensor with HazeFlow 2 algorithm and dual A1R certified thermistors capable of detecting rapid temperature increases or critical thresholds above 64 °C. Jeweller radio communication up to 1700 m , automatic alarm interconnection , built-in 85 dB siren and continuous diagnostics with in-app notifications ensure maximum safety and control. The compact and elegant black design, quick installation with SmartBracket and power supply with replaceable batteries for up to 7 years make it a modern, efficient solution that complies with Ajax European standards.

Technical Data Sheet

Artikel-Nr.: 52254.149.WH1

Marke: Ajax Systems

EAN: 4823114030697

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

52254.149.WH1 | WIRELESS HEAT AND SMOKE DETECTOR WITH SEALED BATTERIES

Ajax

The Ajax FireProtect 2 SB (Heat/Smoke) Jeweler, 52254.149.WH1, white, is an advanced wireless fire detector designed to provide reliable, continuous protection for residential and commercial premises. Thanks to its combination of intelligent sensors and long-range radio communication, the device ensures rapid and accurate fire detection, reducing false alarms and providing immediate notifications. The elegant black design easily integrates into any environment, while automatic self-diagnosis, interconnected alarms, and a long-lasting sealed battery ensure maximum safety, easy installation, and minimal maintenance.

Main specifications:

- Dual-spectrum optical smoke sensor with HazeFlow 2 algorithm

- High-precision heat sensors for detecting dangerous temperatures

- Jeweller radio communication with a range of up to 1700 m

- Interconnected fire alarms with integrated 85 dB siren

- Sealed lithium battery with up to 10 years of battery life

- Continuous self-diagnosis and quick SmartBracket installation

Further details

✅ Jeweler Communication:
The detector uses two-way, encrypted Jeweller radio technology, designed to ensure stable and secure communication with the Ajax hub up to 1700 meters in open terrain, with constant signal supervision and immediate alarm transmission even in complex environments.
✅ Sensor type:
It integrates a combined detection system that combines optical smoke sensors and high-precision heat sensors, offering complete and reliable fire protection without the need for additional components.
✅ Smoke Detection:
The dual-spectrum optical sensor with HazeFlow 2 algorithm effectively distinguishes real smoke from steam and dust, reducing false alarms and ensuring rapid intervention in the event of a fire.
✅ Dangerous temperature detection:
A1R heat sensors constantly monitor the environment and activate the alarm when the temperature exceeds critical thresholds or increases rapidly, ensuring timely warning even in the absence of smoke.
✅ Additional features :
It supports interconnected fire alarms , automation scenario triggering, built-in 85dB siren, LED status indications and instant notifications via app, improving building security management.
✅ Anti-sabotage protection :
It is equipped with anti-tampering and anti-removal systems that detect unauthorized opening or detachment attempts, immediately sending an alert to the system to maintain a high level of security.
✅ Power supply:
It works with a high-efficiency sealed lithium battery , designed to guarantee up to 10 years of maintenance-free autonomy, with continuous status monitoring and preventive low battery warnings.

Technical data sheet

52254.149.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Sensitive elements smoke sensor
CO (carbon monoxide) sensor
Smoke detection
Sensitive element double-spectrum optical sensor
Recognizes smoke by the size of particles in the air
False alarm prevention Does not react to water vapor.
Patented smoke chamber Protects the smoke sensor from dust, dirt, and insects
Dangerous temperature detection
Sensitive element according to the requirements for Class A1R heat detectors Requirements of EN 54-5 and BS 5446-2 standards
High temperature alarm at temperatures above 64 °C
at temperatures above 147 °F
Temperature spike alarm when the temperature rises more than 10°C 50°F in 1 minute or less
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm via primary interconnection
If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps.
via fallback interconnection1
At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub.
1 Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.
LED indication green is a power indication
A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291
yellow is an indication of malfunctions
A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life
red is an indication of fire alarms
A LED indicator on the device enclosure lights up when the detector registers a fire alarm
Button on the front panel of the detector In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, pressing turns off the detector sound notification.
Recommendations The device is designed only for indoor installation
SmartBracket mounting panel allows adjusting the position of the detector after installation.
Sabotage protection
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing device authentication
Detection of communication failure within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweler or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
Power supply
For FireProtect 2 SB (Heat/Smoke/CO) 2 × CR123A batteries
Up to 7 years of battery life.
Enclosure
Color White
Dimension 124 × 124 × 45 mm
4.88″ × 4.88″ × 1.77″
Weight 272 g
9.59 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Protection class IP20
Complete set FireProtect 2 SB (Heat/Smoke) Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick start guide
Warranty 24 months
