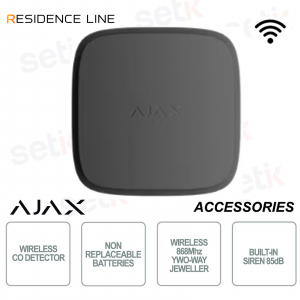

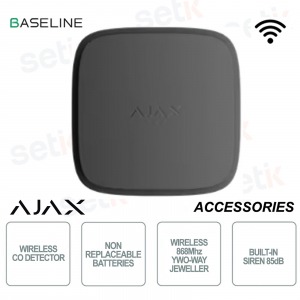

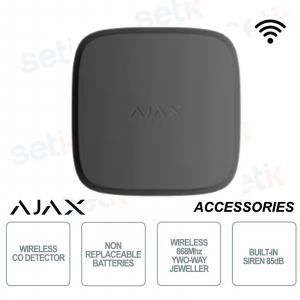

Ajax FireProtect 2 AC Black – Jeweler CO Carbon Monoxide Detector

Ajax FireProtect 2 AC Black – Jeweler CO Carbon Monoxide Detector

 

60827.172.BL1 # 60827 | Ajax FireProtect 2 AC (CO) Jeweller black is a professional mains-powered detector designed to provide continuous and highly reliable protection against carbon monoxide in residential and professional environments. The device integrates a high-precision chemical CO sensor with a lifespan of up to 10 years , capable of triggering the alarm already when dangerous thresholds are reached. The 110–240 V power supply with a sealed backup battery , stable Jeweller radio communication up to 1500 m and intelligent interconnected alarms ensure operation even in the event of a power outage. The elegant black design, built-in 85 dB siren , continuous self-diagnosis and quick installation make the device ideal for advanced and highly reliable security systems. Ajax

Technical Data Sheet

Artikel-Nr.: 60827.172.BL1

Marke: Ajax Systems

EAN: 4823114046971

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

60827.172.BL1 | WIRELESS GRID-POWERED CARBON MONOXIDE FIRE DETECTOR

Ajax

The Ajax FireProtect 2 AC (CO) Jeweler, 60827.172.BL1, black, is a professional mains-powered detector designed to provide continuous and reliable protection against carbon monoxide in residential and commercial environments. The device combines advanced Ajax technology and constant security, ensuring rapid detection, immediate notifications, and full integration with the alarm system even during power outages. Its modern black design, automatic self-diagnosis, and sealed backup battery make the detector ideal for highly reliable permanent installations.

Main specifications:

- Highly accurate chemical carbon monoxide sensor with a lifespan of up to 10 years

- 110–240 V mains power with sealed battery backup

- Two-way Jeweler radio communication with a range of up to 1700 m

- Intelligent interconnected alarms for immediate and coordinated reporting

- Built-in 85 dB siren and LED status indicators

- Continuous self-diagnosis and quick installation with SmartBracket support

Further details

✅ Jeweler Communication:
The detector uses two-way, encrypted Jeweller radio technology, which ensures stable and secure communication with the Ajax hub, with a range of up to 1500 meters in open areas and constant signal supervision for immediate and reliable alarm transmission.
✅ Carbon Monoxide (CO) Detection:
The high-precision chemical CO sensor detects dangerous concentrations of carbon monoxide with extreme accuracy for up to 10 years of use, activating the alarm as low as 50 ppm to protect people before the first symptoms of poisoning appear.
✅ Additional features :
It supports intelligent interconnected alarms with primary and fallback modes, automation scenarios, real-time notifications via the Ajax app, built-in 85 dB siren , LED status indicators and alarm sending to monitoring centers.
✅ Anti-sabotage protection :
Equipped with anti-tampering and anti-removal systems that detect unauthorized opening or detachment attempts, immediately sending a signal to the system to maintain a high level of system security.
✅ Power supply:
It operates on 110–240 V AC power and a sealed backup battery , ensuring operational continuity even in the event of a power outage and ensuring reliable operation for the entire life of the device.

Technical data sheet

60827.172.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Carbon monoxide (CO) detection
Sensitive element chemical CO sensor
Alarm if accumulated dose of CO is exceeded more than 50 ppm (0.005%) — no more than in 90 minutes
more than 100 ppm (0.01%) — no more than in 40 minutes
more than 300 ppm (0.03%) — no more than in 3 minutes
CO concentration of 400 ppm (0.04%) within 3 hours can be life-threatening. The detector stops notifying about the dangerous level of carbon monoxide when the concentration drops to 50 ppm (0.005%) within one minute.
Sensor life 10 years
After 10 years of operation, the detector must be replaced with a new one.
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm via primary interconnection
If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps.
via fallback interconnection1
At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub.
1 Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.
LED indication green is a power indication
A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291
yellow is an indication of malfunctions
A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life
red is an indication of fire alarms
A LED indicator on the device enclosure lights up when the detector registers a fire alarm
Button on the front panel of the detector In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, pressing turns off the detector sound notification.
External power supply 110–240 V~, 50/60 Hz
The phase and neutral cables from the external power supply should be connected to the WAGO terminals on SmartBracket mounting panel. To remove the detector from SmartBracket, there is no need to disconnect the power cables.
Recommendations The device is designed only for indoor installation
SmartBracket mounting panel allows adjusting the position of the detector after installation.
Sabotage protection
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing device authentication
Detection of communication failure within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweler or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
Power supply
Main 110–240 V~, 50/60 Hz
Up to 2W of mains power consumption.
Backup 1 non-replaceable lithium battery
Allows the detector to operate autonomously without the main power source.
Enclosure
Color Black
Dimension 122 × 122 × 54 mm
4.80″ × 4.80″ × 2.13″
Weight 304 g
10.72 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Complete set FireProtect 2 AC (CO) Jeweller
SmartBracket mounting panel
WAGO 221 3-conductor terminal — 2 pcs.
(pre-installed in SmartBracket)
Installation kit
Quick start guide
Warranty 24 months
