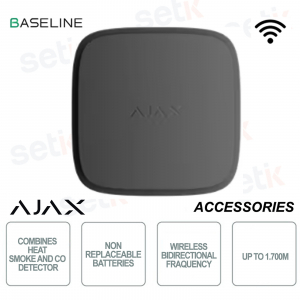

Ajax FireProtect 2 AC Jeweller Black – Smart Fire Detector with Smoke, Heat and Carbon Monoxide Sensor

Ajax FireProtect 2 AC Jeweller Black – Smart Fire Detector with Smoke, Heat and Carbon Monoxide Sensor

 

60835.176.BL1 # 60835 | Ajax FireProtect 2 AC (Heat/Smoke/CO) Black is a professional mains-powered fire detector designed for comprehensive and reliable protection of residential and commercial premises. It integrates a dual-spectrum optical smoke sensor , heat sensors with A1R thermistors and a carbon monoxide sensor with a lifespan of up to 10 years , ensuring fast and accurate detection. Equipped with a sealed backup battery , it continues to function even in the event of a power outage. Jeweller wireless communication up to 1700 m ensures synchronized and stable alarms. The modern black design blends seamlessly into any environment, offering quick installation, automatic self-diagnosis and a built-in 85 dB siren for maximum security. Ajax

Technical Data Sheet

Artikel-Nr.: 60835.176.BL1

Marke: Ajax Systems

EAN: 4823114047046

Disponibilità: 2

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

60835.176.BL1 | WIRELESS GRID-POWERED SMOKE, CARBON MONOXIDE, AND HEAT DETECTOR

Ajax

Ajax FireProtect 2 AC Jeweller, 60835.176.BL1, black is a new-generation intelligent fire detector designed to provide advanced protection against fires and gas leaks in residential and commercial environments. Powered directly from the mains, it integrates highly precise detection technologies for smoke, heat, and carbon monoxide, ensuring timely and reliable interventions. The device communicates via the Jeweller radio protocol, providing stable connections and synchronized alarms even in emergencies. The elegant and compact black design allows for discreet integration into any context, while the self-diagnostics, power backup, and built-in siren functions further enhance the overall level of security.

Main specifications:

- Dual-spectrum optical smoke sensor with anti-false alarm algorithm

- Dual high-precision A1R heat sensors for critical temperature detection

- 110–240 V mains power with sealed battery backup

- Two-way Jeweler radio communication with a range of up to 1700 m

- Intelligent interconnected fire alarms with primary and fallback modes

- Built-in 85 dB siren, status LED and continuous self-diagnosis

Further details

✅ Jeweler Communication:
The device uses two-way, encrypted Jeweller radio technology, which ensures stable and secure communication with the Ajax hub, with a range of up to 1700 meters in open terrain and continuous signal supervision for immediate transmission of fire alarms.
✅ Sensor type:
New generation multi-sensor fire detector that combines smoke, heat and carbon monoxide sensors in a single device, offering comprehensive protection and reducing the need for multiple separate devices.
✅ Smoke Detection:
Equipped with a dual-spectrum optical sensor with advanced software algorithm, it can distinguish real smoke from steam and condensation, drastically reducing false alarms and ensuring high accuracy in fire detection.
✅ Dangerous temperature detection:
It integrates A1R heat sensors with external thermistors that constantly monitor the temperature increase, activating the alarm in case of a rapid increase of 10°C in a minute or if the critical threshold of 64°C is exceeded.
✅ Carbon Monoxide (CO) Detection:
The high-precision CO sensor constantly monitors the concentration of carbon monoxide in the air and provides timely warnings of dangerous situations before the first symptoms of poisoning appear, with an operating life of up to 10 years.
✅ Additional features :
It supports intelligent interconnected fire alarms with primary and fallback modes, automation scenarios, real-time notifications via the Ajax app, built-in 85 dB siren , LED status indicators and alarm sending to monitoring stations.
✅ Anti-sabotage protection :
It integrates anti-tampering and anti-removal systems that detect unauthorized attempts to open or detach from the support, immediately sending a signal to the system to maintain a high level of security of the system.
✅ Power supply:
It operates on 110–240 V AC power and a sealed backup battery , ensuring operational continuity even in the event of a power outage and ensuring reliable operation for the entire life of the device.

Technical data sheet

60835.176.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Sensitive elements smoke sensor
heat sensor
CO (carbon monoxide) sensor
Smoke detection
Sensitive element dual-spectrum optical sensor
Detects smoke by the size of particles in the air.
Protection from false alarms Does not react to water vapor.
Patented smoke chamber Protects the smoke sensor from dust, dirt, and insects.
Dangerous temperature detection
Sensitive element according to the requirements for Class A1 heat detectors
Requirements of EN 54-5 and BS 5446-2 standards
High temperature alarm at temperatures above 64 °C
at temperatures above 147 °F
Temperature spike alarm when the temperature rises more than 10°C 50°F in 1 minute or less
Carbon monoxide (CO) detection
Sensitive elements chemical CO sensor
Alarm if accumulated dose of CO is exceeded over 50 ppm (0.005%) — in 90 minutes or less
over 100 ppm (0.01%) — in 40 minutes or less
over 300 ppm (0.03%) — in 3 minutes
CO concentration exceeding 400 ppm (0.04%) within a span of 3 hours poses a life-threatening risk. The detector will cease notifications regarding hazardous carbon monoxide levels once the concentration decreases to 50 ppm (0.005%) within a 1-minute duration.
Sensor service life 10 years
After 10 years of operation, the detector must be replaced with a new one.
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm via primary interconnection
If one of the fire detectors in the system detects a threat, it sends an alarm to the hub. Within 20 seconds, the hub initiates an interconnected alarm and sends data to Ajax apps.
via fallback interconnection1
At the same time with notifying the hub, the initiating detector sends an alarm directly to other detectors. All connected detectors activate the buzzer within a minute. It will work even in the worst-case scenario of losing connection with the hub.
1 Fallback interconnected alarm is available only for FireProtect 2 detectors with firmware version 5.59.2.ХХ or later. Devices that support the fallback interconnected alarm are marked on the package with a “Fallback interconnect supported” label.
LED indication green is a power indication
A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291
yellow is an indication of malfunctions
A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case of discharged batteries, contamination of the smoke chamber, or end of the service life
red is an indication of fire alarms
A LED indicator on the device enclosure lights up when the detector registers a fire alarm
Button on the front panel of the detector In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, pressing turns off the detector sound notification.
External power supply 110–240 V~, 50/60 Hz
The phase and neutral cables from the external power supply should be connected to the WAGO terminals on SmartBracket mounting panel. To remove the detector from SmartBracket, there is no need to disconnect the power cables.
Recommendations The device is designed only for indoor installation
SmartBracket mounting panel allows adjusting the position of the detector after installation.
Sabotage protection
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing device authentication
Detection of communication failure within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweler or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
Power supply
Main 110–240 V~, 50/60 Hz
Up to 2W of mains power consumption.
Backup 1 non-replaceable lithium battery
Allows the detector to operate autonomously without the main power source.
Enclosure
Color Black
Dimension 122 × 122 × 54 mm
4.80″ × 4.80″ × 2.13″
Weight 318 g
11.22 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Complete set FireProtect 2 AC (Heat/Smoke/CO) Jeweller
SmartBracket mounting panel
WAGO 221 3-conductor terminal — 2 pcs.
(pre-installed in SmartBracket)
Installation kit
Quick start guide
Warranty 24 months
