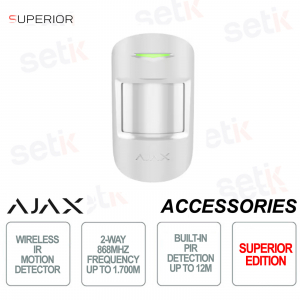

Ajax Superior MotionProtect Jeweler White – Professional Wireless PIR Sensor

Ajax Superior MotionProtect Jeweler White – Professional Wireless PIR Sensor

 
ANKÜNDIGUNGEN

AJAX SUPERIOR | 133218.09.WH1 (formerly 67724.09.WH1) #133218 | Ajax Superior MotionProtect Jeweller white is a wireless PIR motion detector designed for professional security systems that require advanced detection and reliable radio communication . The sensor ensures a detection range of up to 12 meters with an 88.5° angle , maintaining constant accuracy thanks to intelligent temperature compensation . Encrypted Jeweller communication technology up to 1,700 meters ensures stability, protection from interference and continuous supervision. The device also features anti-sabotage protection with tamper and authentication , pet immunity up to 20 kg and a battery life of up to 5 years , making it ideal for reliable and long-lasting professional installations. Ajax

Technical Data Sheet

Artikel-Nr.: 133218.09.WH1

Marke: Ajax Systems

EAN: 4823114075476

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

133218.09.WH1 | WIRELESS IR MOTION DETECTOR

Ajax

Ajax Superior MotionProtect Jeweller, 133218.09.WH1 (ex.67724.09.WH1), white is a wireless PIR motion detector designed for professional security systems that require detection accuracy , advanced radio reliability and long battery life. The sensor guarantees detection up to 12 meters at an 88.5° angle , maintaining high performance thanks to intelligent temperature compensation and SmartDetect algorithms . Jeweller technology encrypted up to 1,700 meters ensures stable and secure communications, while anti-sabotage protection with tamper and device authentication and a battery life of up to 5 years make the device ideal for reliable and long-lasting professional installations.

Main specifications:

- High precision wireless PIR motion detector

- Detection range up to 12 m with an 88.5° angle

- Encrypted Jeweler radio communication up to 1,700 m

- SmartDetect algorithms and advanced thermal compensation

- Pet immunity up to 20 kg

- Anti-sabotage protection with tamper and authentication

- Battery life up to 5 years with CR123A

Further details

✅ Jeweler Communication :
Ajax Jeweller technology ensures secure two-way radio transmission up to 1,700 meters in open terrain , with advanced encryption , jamming detection , frequency hopping and continuous monitoring of the device status for always reliable communication.
✅ Detection :
The PIR sensor with intelligent temperature compensation ensures motion detection up to 12 metres with an 88.5° angle , maintaining high performance even in the presence of temperature variations and reducing false alarms thanks to the SmartDetect algorithms and pet immunity up to 20 kg .
✅ Anti-sabotage protection:
The device integrates anti-spoofing authentication , anti-opening and anti-tear tamper protection and immediate notifications in the event of tampering attempts, ensuring constant security of the sensor and the alarm system .
✅ Power supply:
Ajax Superior MotionProtect Jeweller is powered by pre-installed CR123A battery , offering up to 5 years of battery life , low battery notifications and continuous operation without frequent maintenance , ideal for professional wireless installations.

Technical data sheet

133218.09.WH1
Communication
Jeweler communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,700 m
up to 5,600 ft
Between detector and control panel (or range extender) in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element 1 PIR sensor
Motion detection distance up to 12 meters
up to 39 ft
When installed at the height of 2.4 meters
When installed at the height of 7.9 ft
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
up to 50 cm in height
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Recommendations It is recommended to install the detector at the height of 2.4 meters.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the detector from the surface or remove it from the mounting panel
Holding screw to secure the detector on SmartBracket
Protection against forgery devices authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 1 × CR123A
Pre-installed..
Type Type C
Calculated battery life up to 5 years
Detector's operating voltage range 2.1−3.3 V⎓
Detector's nominal operating voltage 3 V⎓
Quiescent detector's current consumption at nominal voltage 0.019 mA
Maximum detector's current consumption at nominal voltage 2.75 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off
End-of-life battery capacity 300 mAh
Manufacturer Panasonic
Enclosure
Color White
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 97 g
3.42 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP30
Complete set Superior MotionProtect Jeweller
SmartBracket mounting panel with holding screw
CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
