IPC-HUM8241E-E2 - is a WizMind 2MP Pinhole IP camera designed for discreet video surveillance applications and covert installations in environments such as banks, ATMs and advertising screens. Thanks to the 1/2.7" Full HD CMOS sensor, AI H.265/H.264 compression and advanced Artificial Intelligence functions, it offers accurate monitoring with Face Detection , Perimeter Protection , People Counting and Smart Object Detection . It supports MicroSD recording up to 512 GB , PoE power supply, dual power backup and integration with professional video surveillance platforms. Intelligent event management and high video quality make it ideal for advanced security applications and behavioral analysis. Dahua
IPC-HUM8241E-E2 | 2MP Pinhole IP Camera - Artificial Intelligence

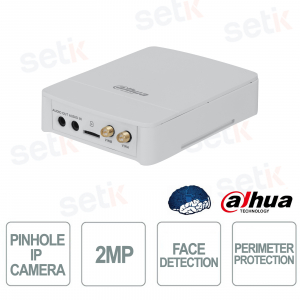

The Dahua IPC-HUM8241E-E2 is a 2MP Full HD WizMind Pinhole IP camera designed for discreet video surveillance applications and covert installations in professional environments. Thanks to the advanced WizMind Artificial Intelligence algorithms, it supports Face Detection , Perimeter Protection , People Counting and Smart Object Detection , ensuring accurate video analysis and false alarm reduction. AI H.265/H.264 compression, MicroSD recording up to 512 GB , PoE support and the dual power backup function ensure high operational reliability. Ideal for banks, ATMs, commercial activities and installations where discreet but high-performance surveillance is required.
Main specifications:
- Full HD 2MP resolution
- WizMind AI Technology
- Face Detection
- Perimeter Protection
- People Counting
- Smart Object Detection
- MicroSD up to 512 GB
- 2 alarm inputs and 2 alarm outputs
- Audio input and output
- PoE 802.3af
- Dual Power Backup
Further details
The Dahua WizMind platform integrates advanced AI algorithms with features such as Face Detection , People Counting , Smart Object Detection , Smart Search , and intelligent people and vehicle classification, improving the effectiveness of video analytics and post-event investigations.
Technical data sheet
| MODEL | IPC-HUM8241E-E2 |
| Room | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) |
| S/N Ratio | >56 dB |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection. |
| Smart Object Detection | Smart abandoned object; smart missing object |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 1920 × 1080@(1–50/60 fps) sub stream: 1920 × 1080@(1–25/30 fps) *High frame rate of main stream is supported under monitoring mode only Note: AI/WDR cannot be enabled at the same time as high frame rate. |
| Streaming Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H264: 3 kbps–8192 kbps; H265: 3 kbps–8192 kbps |
| Day/Night | Color; B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; missingobject; abandoned object; parking detection; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; people counting; people number error detection; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; P2P; Milestones; Genetec |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512GB); NAS |
| Browser | IE: IE8, IE9, and IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS; Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; |
| Port | |
| Audio Input | 1 channel (3.5mm JACK port) |
| Audio Output | 1 channel (3.5mm JACK port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC |
| Power | |
| Power Supply | 12 VDC; PoE (802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 6.1W (12VDC); 8.25W (PoE); Max.: 7.7W (12VDC); 8.85 W (PoE) (High frame rate + Intelligence on + WDR) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") (L × W × H) |
| Net Weight | 210 g (0.46 lb) |
| Gross Weight | 646 g (1.42 lb) |
