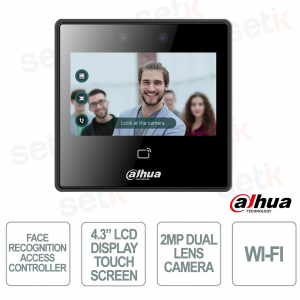

ASI3213A-W Access Control with 2MP Facial Recognition, WiFi, QR Code, and 4.3" Touch Display - Dahua

ASI3213A-W Access Control with 2MP Facial Recognition, WiFi, QR Code, and 4.3" Touch Display - Dahua

 
-56%

ASI3213A-W is an access control system with advanced facial recognition , designed for professional environments that require security and rapid access. Equipped with a 4.3” touch display and a 2MP dual-lens camera with IR and DWDR , it guarantees precise detection even in difficult conditions. It supports multiple unlocking methods such as face, card and password , with 99.9% accuracy and recognition in just 0.2 seconds . It integrates advanced functions such as mask detection, QR code for visitors and video calls , as well as Wi-Fi and TCP/IP connectivity for remote management. With capacity for up to 3,000 users and 300,000 events , it represents a complete solution for intelligent access control. Dahua

Technical data sheet

Artikel-Nr.: ASI3213A-W

Marke: Dahua

EAN: 6923169713434

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

ASI3213A-W | ACCESS CONTROL WITH FACIAL RECOGNITION - 4.3" DISPLAY - 2MP DUAL-LENS CAMERA

Dahua

The Dahua ASI3213A-W is an access control system with advanced facial recognition , designed to ensure security and speed in professional environments. Equipped with a 4.3” touch display and a 2MP dual-lens camera with IR and DWDR , it ensures precise identification even in difficult conditions. It supports face, card and password unlocking, which can be combined with multi-factor authentication , offering an accuracy of up to 99.9% and recognition times of just 0.2 seconds . It integrates smart functions such as mask detection, QR code for visitors and video calls , with remote management via Wi-Fi and TCP/IP . With capacity for up to 3,000 users and 300,000 events , it represents a complete and intelligent solution for access control.

Main specifications:

- Advanced facial recognition: up to 99.9% accuracy with rapid identification in 0.2 seconds

- 4.3” touch display: intuitive interface with capacitive screen and 480×272 resolution

- 2MP dual-lens camera: with IR and DWDR for high performance in any light condition

- Multiple authentication: Supports face, card, password and combinations with multi-factor authentication

- Smart functions: mask detection, visitor QR code and integrated video calls

- Full connectivity: Wi-Fi and TCP/IP for remote management and integration with security systems

- High capacity: up to 3,000 users and 300,000 event records for professional environments

Further details

✅ Display :
Equipped with a 4.3” capacitive touch display with 480×272 resolution, it offers an intuitive and modern interface with customizable voice prompts for simple access management.
✅ Rooms :
It integrates a 2MP dual-lens camera with IR and DWDR , designed to ensure accurate facial recognition even in low light or high contrast conditions.
✅ Function:
It supports unlocking via face, card, password and remote , also combinable with multi-factor authentication , including advanced functions such as mask detection, visitor QR code and video calls .
✅ RFID:
Compatible with IC and DesFire (EV3) cards with 13.56 MHz frequency, it guarantees safe and fast access thanks to advanced contactless technology.
✅ Network :
Full connectivity with Wi-Fi and RJ-45 Ethernet port , support for IPv4, TCP, UDP, RTSP, SIP and P2P protocols, for integration and advanced remote management.
✅ Performance :
High accuracy with 99.9% facial recognition , 0.2 second response time and operating distance of up to 1.5 meters , ideal for quick and secure access.
✅ User:
Management of up to 3,000 users , 3,000 faces , 5,000 cards and 300,000 events , with support for different profiles such as VIP, guest, patrol and blacklist .
✅ Alarm :
Complete system with anti-passback, tamper, duress, intrusion and door timeout , to ensure highly secure and monitored access control.

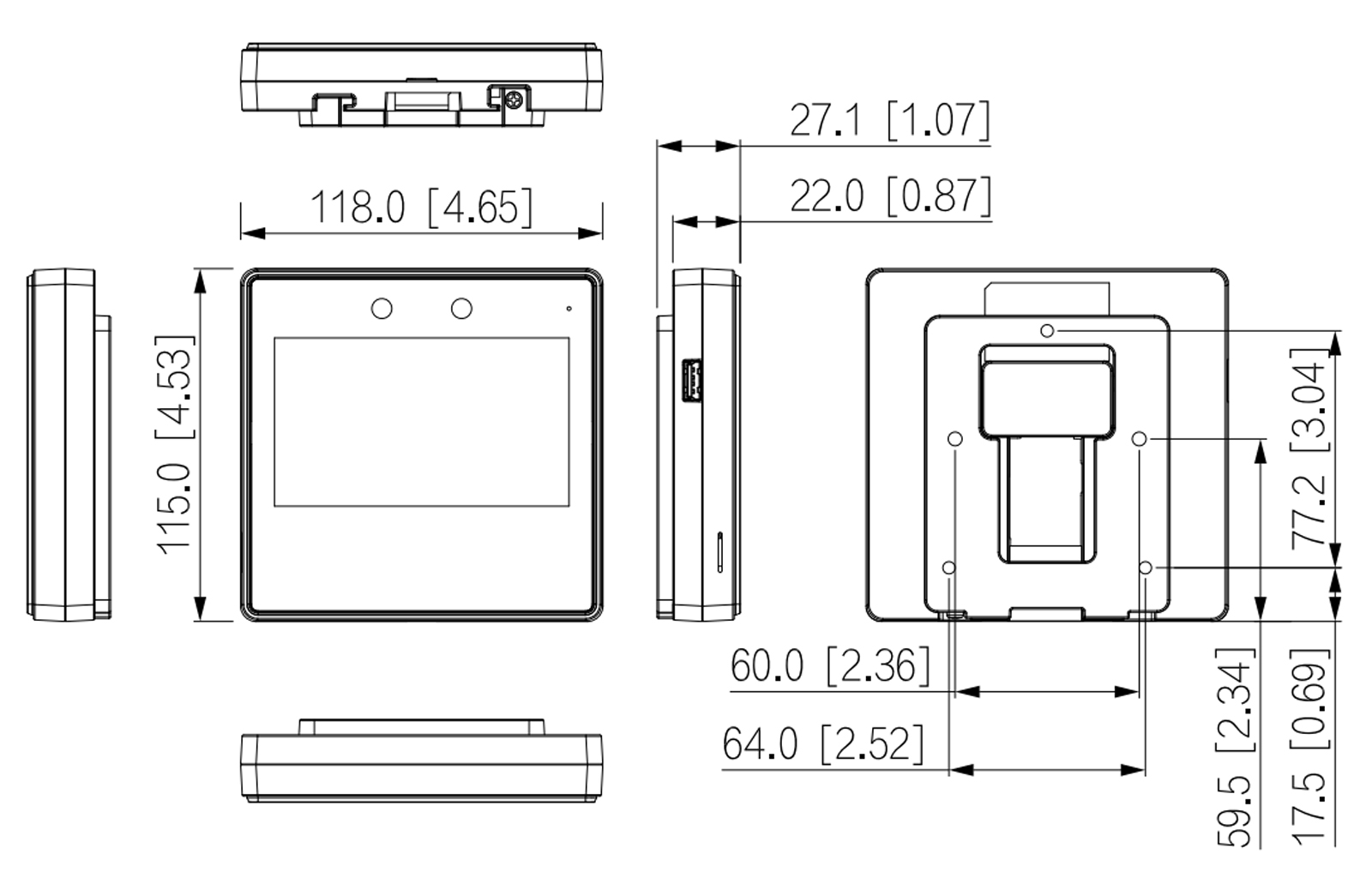

ASI3213A-W dimensions

Technical data sheet

ASI3213A-W
System
Main Processor Embedded Processor
Network Protocol IPv4; RTSP; RTP; TCP; UDP; SIP; P2P
OSDP Protocol Yes
Interoperability ONVIF; CGI
SDK and API Yes
Basic
Product Type Standalone
Display Screen 4.3" LCD
Screen Type Capacitive Touchscreen
Screen Resolution 480 (H) × 272(V)
Room 2-MP CMOS HD dual-lens camera
WDR DWDR
Light Compensation Auto IR
Voice Prompt Yes
Casing PC + ABS
Function
Unlock Mode Password, remote, card, face and combination unlock
Card Type IC cards; Desfire card (EV3,Compatible with Dahua card by default)
Modulation Type AM
Period List 128 periods
Holiday Period 128 periods
Network Update Yes
First User Unlock Yes
Remote Verification Yes
Restricted List/Trusted List Yes
Wi-Fi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4 GHz
Peripheral Card Reader 1 × RS–485 card reader; 1 × Wiegand card reader
Multi-user Authentication Yes
Real-time Monitoring Yes
Web Configuration Yes
Auto Registration Yes
RFID
Modulation Type ASK
Frequency Range 13.56 MHz
Max. Transmission Power 42dBuA/m @10m
Network
Max. Transmission Power ≤[email protected] MHz
Performance
Card Reading Distance 0 cm–3 cm (0"–1.18")
Face Recognition Height Range 1.1 m–2.0 m (3.61 ft–6.56 ft)
Face Recognition Distance 0.3 m–1.5 m (0.98 ft–4.92 ft)
Face Recognition Accuracy 99.9%
Face Recognition Time 0.2 s
Read Speed (QR Code) 500 ms
Code Type Paper; Electronic
User
User (Card) Type Normal user; VIP users; patrol users; guest user; blocklist user; other user
Capacity
User Capacity 3,000
Face Image Capacity 3,000
Card Capacity 5,000
Password Capacity 3,000
Record Capacity 300,000
Port
RS-485 1
Wiegand 1
USB 1 × USB 2.0
Network Port 1 × RJ-45 10/100Mbps self-adaptive Ethernet port
Exit Button 1
Lock Control 1
Door Status Detection 1
Alarm
Anti-pass Back Yes
Tamper Alarm Yes
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
General
Power Adapter Standard
Power Supply 12 VDC, 1.5 A
Power Consumption ≤18 W
Product Dimensions 115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07") (H × W × W)
Packaging Dimensions 190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L × W × H, protection box)
Operating Temperature –10 °C to +40 °C (+14 °F to +104 °F)
Operating Humidity 0%–90% (RH), non-condensing
Operating Environment Indoor
Net Weight 250 g (0.55 lb)
Gross Weight 400 g (0.88 lb)
Accessory Wall mount bracket (included)
Installation Wall mount; 86 case mounts; desk mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
