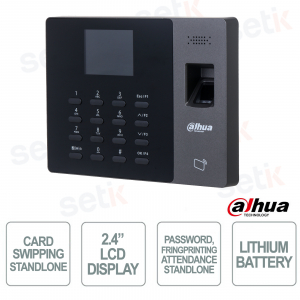

Dahua Fingerprint, RFID, and WiFi Time Attendance Terminal for up to 3,000 Users and 100,000 Records

Dahua Fingerprint, RFID, and WiFi Time Attendance Terminal for up to 3,000 Users and 100,000 Records

-56%

ASA2212GL-MEW is a standalone time and attendance terminal designed for efficient and secure access management, ideal for professional environments such as offices, schools and industries. Equipped with a 2.4” LCD display with 240×320 resolution and a PC+ABS body, it integrates a rechargeable battery for continuous use even in the absence of power. It supports multiple authentication via fingerprint, IC/ID badge and password , ensuring maximum operational flexibility. It offers high capacity with up to 3,000 users, 3,000 fingerprints and 100,000 records , as well as advanced functions such as shift and department management. Connectivity is complete thanks to Wi-Fi and TCP/IP network , with updates via web or USB and integration via API and ONVIF. Dahua

Technical data sheet

Artikel-Nr.: ASA2212GL-MEW

Marke: Dahua

EAN: 6939554934544

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


ASA2212GL-MEW | FINGERPRINT, RFID, AND WI-FI ACCESS CONTROL - 2.4" DISPLAY

Dahua

The Dahua ASA2212GL-MEW is an advanced time and attendance terminal designed for professional environments, equipped with a 2.4” LCD display and a robust PC+ABS structure for reliable use. It supports multiple authentication with fingerprint, RFID IC/ID badge and password , ensuring security and operational flexibility. It integrates complete management with capacity for up to 3,000 users and 100,000 records , as well as configuration of shifts and departments directly from the device. Connectivity is ensured by Wi-Fi and TCP/IP network , with updates via web and USB for simple management. Version equipped with a 1TB SSD for greater storage and optimized performance.

Main specifications:

- 2.4” 240×320 LCD display for clear and intuitive viewing

- Multiple biometric, RFID and password authentication for maximum security

- Capacity of 3,000 users and 100,000 records, ideal for structured companies

- Wi-Fi and TCP/IP connectivity for quick and easy network integration

- Advanced shift and department management directly from the terminal

- 1TB SSD for extended storage and increased operational efficiency

Further details

Display :
The terminal integrates a 2.4” LCD display with 240×320 resolution , designed for clear and immediate display of information, with an intuitive interface and support for voice prompts to facilitate daily use even in dynamic environments.
Function:
Complete device for attendance management with multiple authentication (fingerprint, badge and password) , support for 20 departments and 24 configurable shifts , access lists and network updates, ideal for access control and advanced staff management.
RFID:
Compatible with IC and ID cards on dual frequencies 13.56 MHz and 125 kHz , it guarantees reliable and fast reading thanks to ASK technology, perfect for environments with high user flow .
Network :
Equipped with built-in Wi-Fi and RJ-45 Ethernet port , it supports TCP/IP, IPv4/IPv6, P2P and DHCP protocols, allowing efficient remote management and integration with systems via API and ONVIF .
Performance :
High performance with a response time of 0.2 seconds , fast fingerprint recognition ( 0.5 s ) and 1:N verification mode, ensuring precision and speed even in high-traffic environments .
Attendance :
Advanced detection system with automatic and manual modes , data export via USB , integrated statistics and complete management of shifts, overtime and company calendars .
User:
High capacity with up to 3,000 users, 3,000 fingerprints, 3,000 badges and 100,000 registrations , supporting different profiles such as general users, VIPs and guests for flexible management.
Doors:
Complete interfaces with USB 2.0 port , RJ-45 network port , inputs for exit button, door sensor and lock control , ideal for integration with security systems.
Alarm :
Advanced security features including duress, intrusion, door timeout and unauthorized card use alarms to ensure reliable and secure access control.

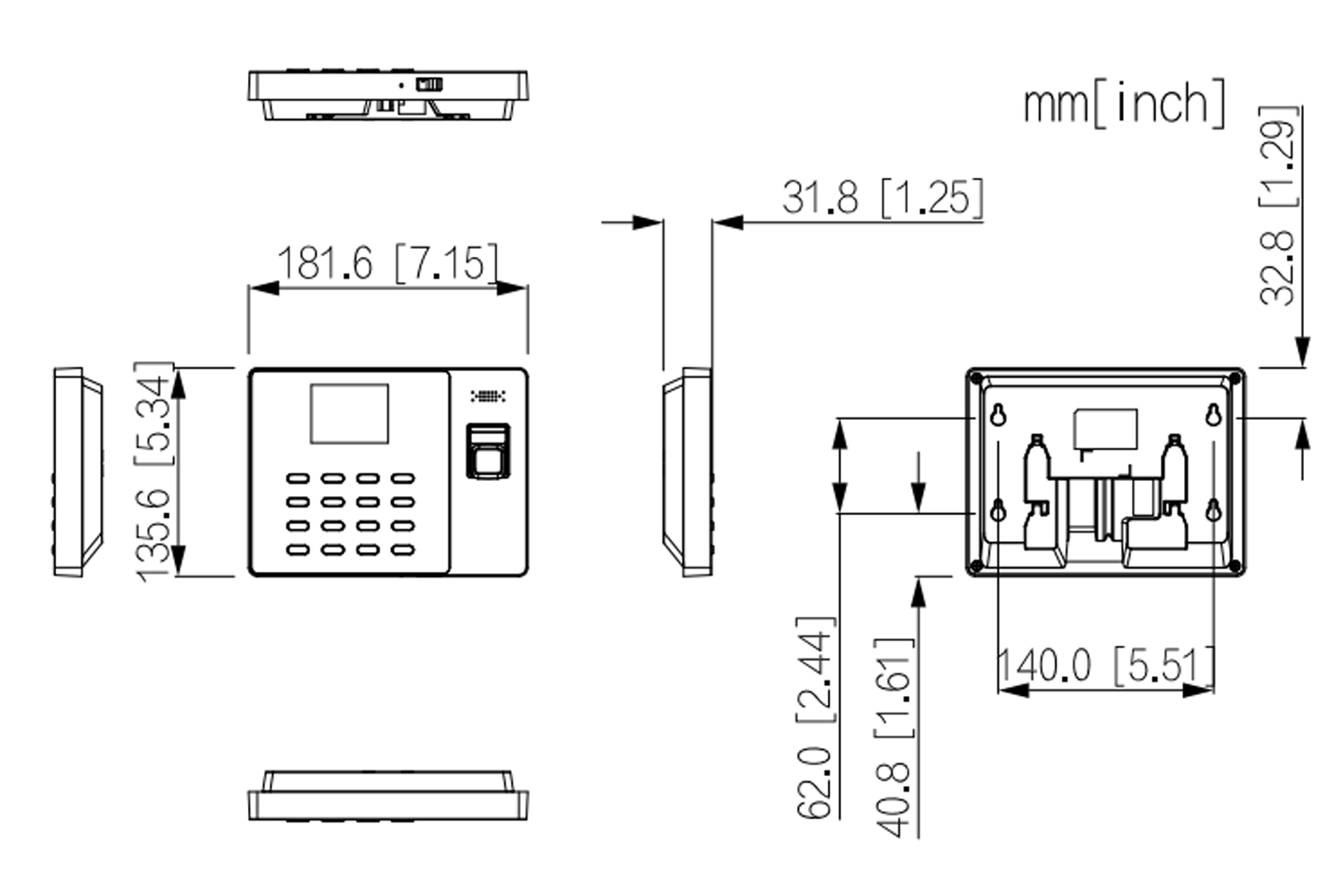

ASA2212GL-MEW dimensions

Technical data sheet

ASA2212GL-MEW
System
Main Processor Embedded Processor
Button Type Mechanical
Network Protocol IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol Yes
Input Method T9
Interoperability ONVIF; CGI
SDK and API Yes
Basic
Display Screen 2.4" LCD
Product Type Standalone Attendance
Screen Type Non-touchscreen
Screen Resolution 240 (H) × 320 (V)
Voice Prompt Yes
Power On/Off Button 1
Casing PC + ABS
RFID
Card Type IC card; ID card
Modulation Type ASK
Frequency Range 13.56 MHz
Max. Transmission Power 13.56MHz:42dBuA/m @10m;125 kHz:66dBuA/m @10m
Function
Period List 128 periods
Holiday Period 128 periods
Network Update Yes
Restricted List/Trusted List Yes
Auto Registration Yes
Network
Max. Transmission Power [email protected] MHz
Wi-Fi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2400-2483.5MHz
Performance
Response Time 0.2 S
Card Reading Distance 3 cm (1.18")
Fingerprint Sensor Type Optical
Fingerprint Verification Mode 1:N
Fingerprint Comparison Time 1.5 S
Fingerprint Recognition Time 0.5 s
Attendance
Export Attendance Record USB flash drive export
Attendance Check Mode Auto/Manual Mode;Auto Mode;Manual Mode;Fixed Mode
Attendance Statistics Yes
Department Setting 20 departments
Schedule Setting 24 shifts
Ring Tone Yes
User
User (Card) Type General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2
Capacity
User Capacity 3,000
Face Image Capacity 3,000
Card Capacity 3,000
Password Capacity 3,000
Record Capacity 100,000
Port
USB 1 × USB 2.0
Network Port 1 × RJ-45 10/100Mbps self-adaptive Ethernet port
Exit Button 1 channel
Lock Control 1 channel
Door Status Detection 1 channel
Alarm
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
General
Power Adapter Included
Power Supply 12 VDC, 1 A
Lithium battery
Power Consumption ≤6 W
Product Dimensions 181.6 mm × 135.6 mm × 32.7 mm (7.15" × 5.34" × 1.29") (L × W × H)
Packaging Dimensions 298 mm × 162 mm × 71 mm (11.73" × 6.38" × 2.8") (L × W × H) (Single device in inner box)
383 mm × 313 mm × 349 mm (15.08" × 12.32" × 13.74") (L × W × H) (Protective case)
Operating Temperature –10 °C to +40 °C (+14 °F to +104 °F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Indoor
Gross Weight 0.61 kg (1.34 lb)
Installation Surface Mount
Certifications THERE IS
Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity 30%–75% (RH), non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
