139676.83.WH1 | WIRELESS KEYBOARD WITH TOUCH BUTTONS SUPPORTING PASS, TAGS, AND CODES AUTHENTICATION

Ajax

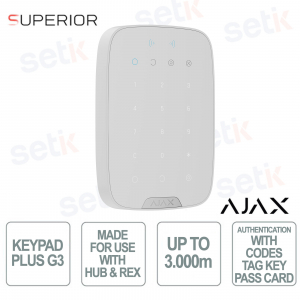

The Superior KeyPad Plus G3 Jeweler, 139676.83.WH1, White, is a professional wireless keypad with touch keys designed to ensure intuitive and secure control of your security system, thanks to advanced authentication via Pass, Tag, and codes based on DESFire® technology, resistant to cloning and unauthorized access. It supports four types of codes, including those for unregistered users and duress codes, and offers intelligent functions such as a panic button, fire alarm silence, and automations that can be activated via security mode. Communication takes place via Superior Jeweler technology, with a range of up to 3,500 m, advanced encryption, and device authentication, while sabotage resistance includes tamper, anti-jamming protection, and immediate disconnection detection. Easy to install via QR code and powered by pre-installed batteries for up to 4.5 years, it guarantees maximum reliability for certified professional systems.

Main specifications:

- Advanced authentication with Pass, Tag and DESFire® codes

- Four types of codes: registered users, non-registered users, keypad code and RRU code

- Coercive codes to send silent alarm in case of threat

- Touch keys, dedicated functions: panic button and fire alarm mute

- Superior Jeweler communication up to 3,500 m with advanced encryption

- Constant supervision: low battery and malfunction notifications

- Anti-sabotage protection: tamper, anti-spoofing and frequency hopping

- Quick installation via QR code and battery life of up to 4.5 years

Further details

✅ Jeweler Connection :
The Superior KeyPad Plus G3 uses Superior Jeweler radio technology, which ensures ultra-stable communications up to 3,500 meters in open space thanks to advanced encryption, constant polling, and device authentication to prevent spoofing. This connection ensures that every arming/disarming command is transmitted securely and immediately, even in large professional security systems.
✅ Authentication methods:
The device supports authentication via Pass, Tag, and codes based on MIFARE DESFire® technology, among the most secure on the market thanks to AES encryption and protection against cloning and unauthorized copies. It also features four types of codes: for registered users, unregistered users, keypad code, and RRU code, as well as coercive codes that send a silent alarm to the control panel in the event of a threat, increasing the level of personal and site protection.
✅ Sabotage Resistance:
The Superior KeyPad Plus G3 features an advanced anti-tamper system that includes a tamper protection against disassembly or detachment , a security screw, immediate detection of communication loss with the hub, protection against code copying and the use of unauthorized devices. Frequency hopping across multiple radio bands effectively counters jamming , ensuring operational continuity even in the event of interference attempts.

Technical data sheet

139676.83.WH1
Wireless communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3,500 m
Up to 11,450 ft
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Key features Sensor type
capacitive
Authentication methods
  • access codes
  • Tag key fobs
  • Pass cards
Access codes
  • keypad code: 1 for each Superior KeyPad Plus G3 Jeweller.
  • user codes: 1 per user. The total number depends on the hub model.
  • unregistered user codes: 1 for user not registered in an Ajax system. The total number depends on the hub model.
  • duress codes: 1 for each Superior KeyPad Plus G3 Jeweler and 1 for each user. The total number depends on the hub model.
Contactless access
DESFire® EV1, EV2, EV3
ISO 14443-A (13.56 MHz)
Arming without entering a code
When enabled, this feature allows users to arm the facility without entering a code or presenting an access device.
Group security management
Users can change the security mode of groups they have access to directly from the keypad.
Authorization confirmation with a passcode
This feature activates two-factor authentication. When enabled, users must first present an access device (Pass or Tag) and then enter a passcode to confirm authorization.
Function button
Operates in one of the following modes:
  • panic: Sends an alarm to the central monitoring station and users. Also activates the sirens connected to the system.
  • mute fire alarm: Mutes alarms triggered by interconnected fire detectors
  • none: The button is disabled.
Indication of malfunctions and security mode
When enabled, the keypad uses LED indicators to show the current security mode, as well as detect malfunctions or loss of communication with the hub.
ACE Type
type B
Sabotage protection Unauthorized access auto-lock
The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock duration can be adjusted by a PRO or user with admin rights in an Ajax app.
Tamper alarm
The system sends notifications about attempts to detach the keypad from the surface or remove it from the mounting panel.
Holding screw
Secures the device on SmartBracket.
Protection against spoofing
Ensures device authentication during communication with a hub.
Communication loss detection
after 36 seconds of no signal
Detection time depends on Jeweler or Jeweler/Fibra settings.
Power supply Battery
4 × AA
Pre-installed.
Type
type C
Calculated battery life
TBC
Operating voltage range
2.25−3.30 V⎓
Nominal operating voltage
3 V⎓
Quiescent current consumption at nominal voltage
130 μA
Maximum current consumption at nominal voltage
10.5 mA
Full battery capacity
6,000 mAh
Low battery voltage
2.5 V⎓
Low battery recovery voltage
2.7 V⎓
End-of-life battery voltage
2.25 V⎓
The device switches off.
End-of-life battery capacity
500 mAh
Manufacturer
Energizer
Enclosure Dimensions dimensions
165 × 113 × 20 mm
6.50" × 4.45" × 0.79"
Weight of the detector
270 g
9.52 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30, IK06
Color White
Complete set Superior KeyPad Plus G3 Jeweller
SmartBracket mounting panel
4 × AA battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
