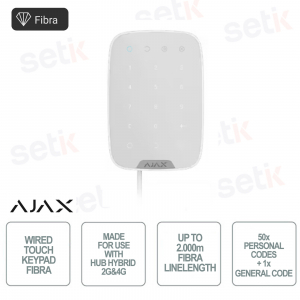

143601.12.WH1 | WIRED TOUCH KEYBOARD

Ajax

The Superior KeyPad Fibra, 143601.12.WH1 (ex. 44401.12.WH1), white , is a wired Ajax keypad designed for secure and intuitive control of security systems, thanks to advanced management via multiple codes for registered and unregistered users. Fiber technology with encrypted communication up to 2,000 m ensures stable and reliable connections even in professional settings. It integrates anti-sabotage protection with tamper, duress code, and panic function for complete security. The touch design with LED indicators ensures simple and immediate use. It supports automation scenarios and remote management via the Ajax app, making it ideal for advanced systems.

Main specifications:

- Fiber technology with encrypted communication up to 2,000 m

- Multiple user code management and advanced access

- Anti-sabotage protection with tamper and duress code

- Integrated panic function for emergencies

- Support for automation and remote control scenarios

- Quick installation with configuration via Ajax app

Further details

✅ Compatibility:
Designed for Ajax wired systems, the device is compatible with Ajax Fibra hubs and LineSupply modules , ensuring full integration and centralized management via the app for professional and scalable installations.
✅ Fiber Communication:
Wired fiber technology with encrypted communication , offering ranges of up to 2,000 meters , high stability and data protection, ideal for high-security environments and structured systems.
✅ Main features :
Keypad with advanced multiple code management for registered and unregistered users, support for automation scenarios, LED status indications and full control of the Ajax security system.
✅ Anti-sabotage protection:
It integrates anti-tampering , protection against unauthorized access attempts, duress code and panic function, guaranteeing maximum operational safety.
✅ Power supply:
Powered directly via Fiber line (5–26 V) with low energy consumption, ensuring operational continuity and constant reliability without the need for frequent batteries.

Technical data sheet

143601.12.WH1
Compatibility
Control panels Hybrid Hub (2G)
Hybrid Hub (4G)
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Connection Superior KeyPad TouchScreen Fibra can be installed after a hub, detector, siren, or other keypad.
Radio signal range Up to 2,000 m
up to 6,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Key features
Sensor type Capacitive
Security mode indication Only when Superior KeyPad Fibra is active.
Duress codes up to 50 personal codes
One for each user.
1 general code
One for Superior KeyPad Fiber
Functional button Panic button
To activate an alarm.
Mute fire alarms
To mute interconnected fire detectors alarms
Codes up to 50 personal codes
One for each user.
1 general code
One for Superior KeyPad Fiber
Recommendations Device is designed for indoor use only
Sabotage protection
Code guessing protection Superior KeyPad Fibra locks for 3-180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app.
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Holding screw To secure the keypad on SmartBracket.
Protection against spoofing device authentication
Power Supply
Fiber line 5−30 V⎓, up to 230 mW
The keypad is powered by the control panel.
Enclosure
Color White
Dimension 150 × 103 × 19 mm
5.90″ × 4.05″ × 0.75″
Weight 148 g
5.22 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Protection class IP50
Complete set Superior KeyPad Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
