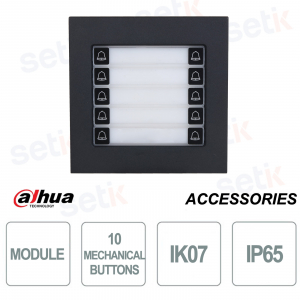

Dahua VTO4202FB-MDB10 Module with 10 IP65 IK07 Buttons for Outdoors, Black Color

Dahua VTO4202FB-MDB10 Module with 10 IP65 IK07 Buttons for Outdoors, Black Color

-57% Neu

VTO4202FB-MDB10 - The video intercom module is equipped with 10 mechanical buttons for optimal management of multi-user access, made of impact-resistant aluminum alloy with IK07 protection and IP65 certification against dust and water; it guarantees flush-mounted or wall-mounted installation, very low power consumption up to 0.6W, 5VDC power supply and a wide operating temperature range from -30°C to +60°C, with CE EMC and CE LVD certifications for maximum safety and reliability in residential and professional contexts. Black color Dahua

Technical Data Sheet

Artikel-Nr.: VTO4202FB-MDB10

Marke: Dahua

EAN: 6939554937156

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VTO4202FB-MDB10 | TEN-KEY MECHANICAL MODULE - BLACK

Dahua

The Dahua VTO4202FB-MDB10 is an intercom module with 10 mechanical buttons ideal for multi-user video intercom systems. Designed for outdoor use, it features IP65 protection against dust and water, and IK07 protection against impact and vandalism. It is constructed of durable aluminum alloy, powered by 5VDC with low power consumption, and is CE EMC and CE LVD certified for maximum security. Compact, versatile, and secure, it is perfect for residential and professional installations. Color: black.

Main specifications:

- 10 sturdy mechanical buttons

- IP65 waterproof and dustproof protection

- IK07 impact resistance

- Low-power 5VDC power supply

- CE EMC and CE LVD certifications

- Operating temperature from -30°C to +60°C

Further details

Buttons:
It is equipped with 10 mechanical buttons, ideal for managing access in multi-user contexts in a practical and intuitive way, ensuring a precise and long-lasting response even after prolonged use.
IP65 protection :
The IP65 certification guarantees high protection against dust and water jets from any direction, making the device perfect for outdoor installations without the risk of malfunctions due to atmospheric agents.
IK07 protection :
The aluminum alloy body offers IK07 protection, ensuring excellent resistance to impact and vandalism, ideal for high-traffic environments.
CE EMC and CE LVD certifications:
The module complies with European regulations with CE EMC (Electromagnetic Compatibility) and CE LVD (Low Voltage Directive) certifications, ensuring safe, stable performance compatible with the main safety standards.

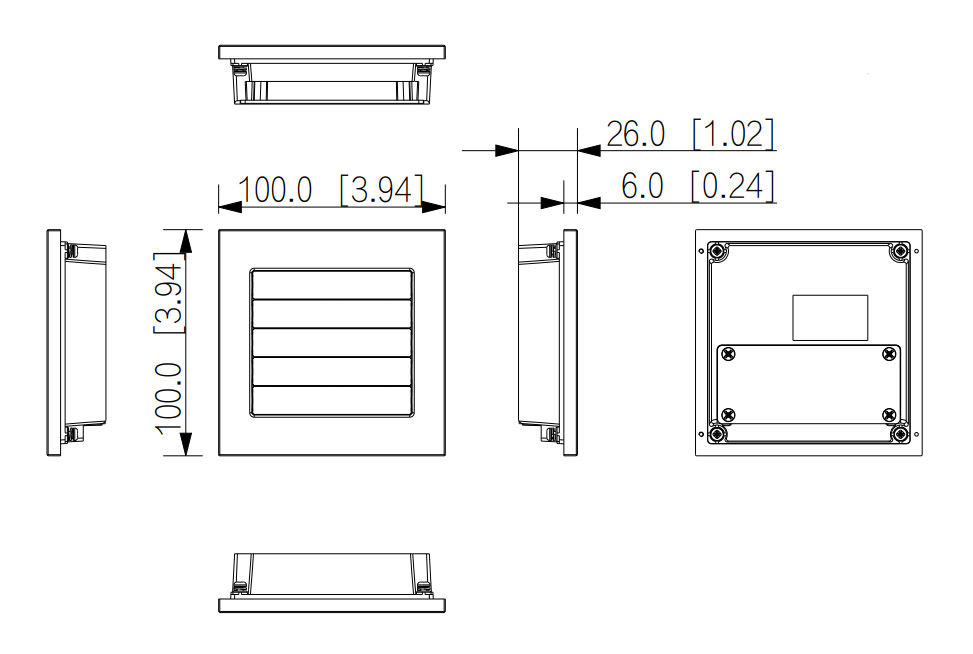

VTO4202F-MDB10 dimensions

Technical data sheet

Model VTO4202FB-MDB10
System
Button Type Mechanical
Number of Buttons 10
Performance
Casing Material Aluminum alloy
Port
Power Output

5 VDC (provides power for other modules)

General
Appearance Color Black
Power Supply 5 VDC (provided by other modules)
Certifications CE EMC; CE LVD
Product Dimensions 100.0 mm × 100.0 mm × 26 mm (3.94" × 3.94" × 1.02")
Protection IK07; IP65(silicone sealant is needed for installation)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude 0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption ≤0.2W (standby), ≤0.6W (working)
Gross Weight 0.33 kg (0.73 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75% (RH)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
