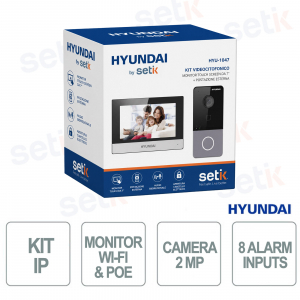

HYU-1047 | IP KIT WITH INDOOR Wi-Fi IP MONITOR AND IP VIDEO INTERCOM

The Hyundai HYU-1047 IP video intercom kit is an advanced access control solution, featuring a 7" touchscreen monitor with WiFi and PoE for intuitive, connected management. The 2MP camera with a 131° viewing angle and IR night vision up to 3 meters ensures clear images in any situation. The system supports live viewing of up to 16 IP cameras and configuration via a web interface for maximum flexibility. It integrates two-way audio with noise and echo cancellation for smooth, professional communications. Thanks to IP connectivity with TCP/IP, SIP, and RTSP protocols and access via a mobile app , it allows complete and secure remote control.
Main specifications:
- 7” WiFi touch screen monitor with PoE support
- 2MP camera with 131° viewing angle and IR up to 3m
- Live viewing of up to 16 IP cameras
- Two-way audio with noise and echo cancellation
- IP connection with TCP/IP, SIP and RTSP protocols
- 8 alarm inputs and 2 outputs for security integration
Further details
Advanced IP technology that allows remote management and integration with security systems via TCP/IP, SIP and RTSP protocols , ensuring scalability and complete control of the system.
8 configurable alarm inputs and 2 configurable alarm outputs ideal for integration with security systems, automations and real-time event management.
Technical data sheet
| HYU-1047 |
| Specifications |
| 1x modular IP video intercom |
| HYUNDAI IP video intercom suitable for outdoor use |
| 1x call button |
| 2MP camera with 131° (H), 78° (V) viewing angle |
| H.264 video format |
| Night vision with infrared supplement up to 3 meters |
| Image modes: BLC, True WDR, DNR |
| Stream 1: 1080P at 30fps, 720P at 25fps |
| Stream 2: D1 at 25 fps |
| Video sensor |
| Built-in omnidirectional microphone and speaker |
| Noise suppression and echo cancellation |
| Tamper-proof tamper |
| 4 alarm inputs |
| 1 RS485 port |
| 1 RJ45 port (10/100 Mbps) |
| TCP/IP, RTSP protocols |
| Power supply: 12V DC / PoE (802.3af) |
| Power consumption: ≤10W |
| Operating temperature from -40°C to +60°C |
| Operating relative humidity 10% ~ 95% (non-condensing) |
| IP65 protection rating |
| Dimensions: 65 (W) x 138 (H) x 27 mm |
| Ceiling installation |
| 1x WIFI IP monitor |
| 7" TFT capacitive touch screen (1024x600) |
| Built-in omnidirectional microphone and speaker |
| G.711u audio compression |
| Noise suppression and echo cancellation |
| 8 alarm inputs / 2 alarm outputs |
| 1 RS485 port |
| 1 RJ45 port (10/100Mbps) |
| TCP/IP, SIP, RTSP protocols |
| Integrated WiFi 802.11 b/g/n |
| 1 power port |
| Power consumption: ≤6W |
| Operating temperature from -10°C to +55°C |
| Operating relative humidity 10% ~ 90% (non-condensing) |
| Internal installation environment |
| Dimensions: 200 (W) x 140 (H) x 15.1 mm |
| Surface mount |
