HYU-826 - The main station is an advanced solution for video intercom systems, equipped with a 7" capacitive color touchscreen (1024x600) that guarantees an intuitive and modern interface. It integrates a 1.3 MP CMOS camera with H.264 compression , offering smooth and high-quality images, as well as supporting live viewing of video intercoms and IP cameras. Thanks to the high-performance SOC processor with Linux operating system , it ensures high stability and responsiveness. The presence of two-way audio with echo cancellation and noise reduction , together with RJ45 Gigabit ports, RS485, USB and configurable inputs/outputs , makes the system complete and versatile. Ideal for professional installations, it also allows remote door unlocking and alarm management . Hyundai

Technical Data Sheet

Artikel-Nr.: HYU-826

Marke: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Die in Korea gegründete Hyundai Corporation ist ein führender Hersteller von digitalen Produkten und zeichnet sich auf dem Weltmarkt durch eine breite Palette von industriellen, elektrischen und elektronischen Produkten aus. Die Hyundai Corporation ist in die Welt der Videoüberwachung eingetreten, indem sie Sicherheitssysteme wie Kameras und Aufnahmegeräte von hoher Technologie und Design entwickelt und konstruiert hat. Das Hauptziel des koreanischen Unternehmens besteht darin, den Schutz und die Sicherheit von Menschen in Wohnungen, Büros und Verkehrsmitteln zu gewährleisten.

Alle Videoüberwachungssysteme von Hyundai werden von den Fachleuten der Branche geschätzt und empfohlen, vor allem, weil sie größtenteils auf der Hikvision-Technologie basieren und daher voll kompatibel sind.

Es gibt nur wenige offizielle Vertriebspartner von Hyundai Security, da es nur wenige Realitäten wie Setik gibt, die zum Vertrieb autorisiert sind. Grundlage dieser Politik ist der Wille, die Marke zu schützen und zu sichern und so aggressive Kanalwahlen zu vermeiden.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security-Produkte für den Schutz und die Sicherheit von Personen, die in Wohnungen, Büros und Verkehrsmitteln installiert werden sollen.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Die Hyundai Security entwirft und entwickelt Videoüberwachungssysteme, die innovative und fortschrittliche Lösungen sowohl in der Technologie als auch im Design bieten. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

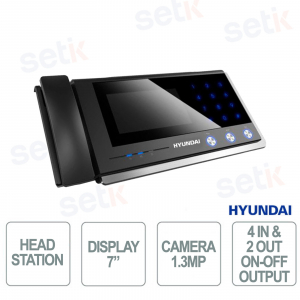

HYU-826 | MAIN STATION WITH 7" CAPACITIVE COLOR TOUCHSCREEN


Hyundai Security

The HYUNDAI HYU-826 main station is designed for professional video intercom systems, equipped with a 7" (1024x600) capacitive color touchscreen that offers an intuitive and modern interface. It integrates a 1.3 MP CMOS camera with H.264 compression , ensuring smooth images and support for live viewing of video intercoms and IP cameras. Thanks to the high-performance SOC processor with Linux operating system , it ensures high stability and responsiveness. The presence of two-way audio with echo cancellation and noise reduction , together with RJ45 Gigabit ports, RS485, USB and configurable inputs/outputs , makes the system complete and versatile. Ideal for advanced installations, it also allows remote door unlocking and alarm management .

Main specifications:

- 7" capacitive color touchscreen (1024x600)

- 1.3 MP CMOS camera with H.264 compression

- Two-way audio with noise and echo reduction

- Advanced RJ45 Gigabit, RS485 and USB connectivity

- Configurable inputs/outputs and integrated relays

- Support for video intercom, IP cameras and remote door unlocking

Further details

7" Display:
7" capacitive color touchscreen display (1024x600) designed to offer a clear, fluid and intuitive display , improving the user experience in managing video intercoms and video monitoring.
Camera :
Built-in 1.3MP CMOS camera that ensures sharp and detailed video recording , ideal for live viewing and access control in advanced video intercom systems.
Microphone & Speakers :
Built-in omnidirectional microphone and speaker for clear, interference-free two-way audio communication , also thanks to echo cancellation and noise reduction.
Gigabit RJ45:
Alarm processing via Gigabit RJ45 port that allows advanced and fast management of security events , integrating the device into high-performance IP networks .
USB Interface:
Integrated USB interface designed to offer greater flexibility in connection and data management , facilitating system configurations and updates .
Configurable outputs :
4 configurable On-Off inputs and 2 outputs ideal for versatile management of external devices and automations , allowing direct control of different elements of the system.
Relay :
2 built-in relay outputs that ensure reliable management of electromechanical devices , such as locks or gates, improving access control and overall security .

Technical data sheet

HYU-826
Specifications
Characteristics
Glass panel and aluminum alloy bracket
Supports video intercom
Supports live viewing of video intercoms and IP cameras
Noise suppression and echo cancellation
Alarm processing function
Support remote door unlock function
Supports hands-free mode
Supports video intercom systems between main stations
Specifications
Embedded high-performance SOC processor
Embedded Linux operating system
1.3MP CMOS camera
H.264 compression format
Resolution: 720P (1280x720), D1 (704x576)
Frames per second: 25 ips, 12.5 ips
7" TFT color screen (1024x600)
Operation method: physical buttons, touch buttons and capacitive touch screen
Includes an omnidirectional microphone
Includes speaker
External earphone
G.711U audio compression
Noise suppression and echo cancellation
Self-adaptive 10/100/1000Mbps RJ45 Ethernet port
Network Protocols: TCP/IP, RSTP
2 Half-Duplex RS485 ports
USB interface
4 On-Off inputs
2 On-Off outputs
2 relay outputs
Power: 12V DC, 1A
Consumption: ≤10 W.
-10°C ~ +55°C operating temperature
10% ~ 90% operating humidity
Plastic case
Dimensions: 436 (W) x 67 (H) x 215 mm
