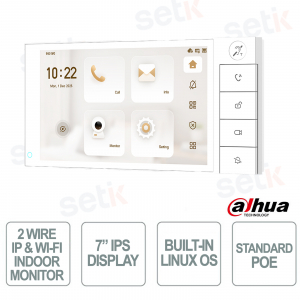

VTH5722BW-IWP 7" Touch Screen WiFi IP Monitor with Two-Way Audio and 2-Wire PoE - Dahua

VTH5722BW-IWP 7" Touch Screen WiFi IP Monitor with Two-Way Audio and 2-Wire PoE - Dahua

 
-56% Neu

VTH5722BW-IWP is an IP and Wi-Fi indoor monitor designed for advanced video intercom systems, equipped with a 7” IPS touchscreen display with 1024×600 resolution for a smooth and intuitive visual experience. Based on an integrated Linux system , it offers full digital and 2-wire communication, with Wi-Fi and PoE support for flexible installations. It integrates two-way audio with noise and echo suppression , ensuring clear and professional communications. Thanks to advanced functions such as elevator control, messaging and DND mode , it improves access management. The presence of a brightness sensor, automatic wake-up and microSD memory up to 512GB complete a modern and high-performance device. Dahua

Technical data sheet

Artikel-Nr.: VTH5722BW-IWP

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

VTH5722BW-IWP | INDOOR MONITOR IP & 2 WIRE WI-FI

Dahua

The Dahua VTH5722BW-IWP is a next-generation IP and Wi-Fi indoor monitor designed for advanced video intercom systems, equipped with a 7” IPS touchscreen display with 1024×600 resolution that guarantees clear images and a smooth interface. Based on an integrated Linux system , it supports full digital and 2-wire communication with Wi-Fi and PoE connectivity, ensuring simple and flexible installation. It integrates two-way audio with noise and echo reduction for clear and professional communications. It offers advanced features such as elevator control, messaging, automatic wake-up and brightness sensor , improving the user experience. The device is completed by microSD support up to 512GB and an elegant full-screen design.

Main specifications:

- 7” 1024×600 IPS display for clear and interactive viewing

- Integrated Linux system for stability and high performance

- IP, Wi-Fi and 2-wire communication for maximum installation flexibility

- Two-way audio with echo and noise cancellation for clear communications

- Advanced smart functions such as elevator control, DND and messaging

- Light sensor and automatic wake-up for optimized user experience

- MicroSD support up to 512GB for large data storage

Further details

✅ Display :
The monitor integrates a 7” IPS touchscreen display with 1024×600 resolution , designed to offer a smooth visual experience with up to 178° viewing angles , accurate colors and an intuitive interface, ideal for simple and immediate daily use .
✅ Functions:
Advanced system with full digital and 2-wire communication , message management, elevator control , Do Not Disturb mode and video recording, offering complete access control and intelligent environment management.
✅ Network:
Full connectivity with integrated Wi-Fi and Ethernet TCP/IP port , support for protocols such as RTSP, SIP and UDP , ensuring perfect integration into IP video intercom systems and efficient remote management .
✅ Doors :
Equipped with professional interfaces such as RS-485, alarm inputs (8 channels) and alarm output , as well as RJ-45 network port and power output , for complete integration with security and automation systems.
✅ Performance :
Built with PC + ABS materials , it guarantees reliability and durability, with low consumption ( ≤10W ) and microSD memory support up to 512GB , ensuring high performance and efficient data management .

Technical data sheet

VTH5722BW-IWP
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Network Protocol IPv4;RTSP;UDP;DNS;RTP;TCP;SIP
Basic
Screen Type Capacitive Touchscreen
Display Screen 7-inch display screen
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16KHz，16Bit
Function
Communication Mode Full digital; Digital 2-wire
Information Release Receive and view the published information from the management center
Elevator Control Residents can call the elevator through this device to their desired floor.
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
DND Mode Do not disturb period can be set
Number of Extensions Villa: 1 main VTH and 9 extensions. Apartment: 1 main VTH and 4 extensions
Storage Supports micro SD card storage (up to 512 GB)
Network
Wi-Fi Yes
Standard Wi-Fi IEEE 802.11b/g/n/ax
Wireless Frequency Range 2.4 GHz
Max. Transmission Power ≤20dBm@2400-2483.5 MHz
Port
RS-485 1
Alarm Input 8 channels
Alarm Output 1 channel
Power Output 1 port (12 V, 200 mA)
Door Bell Yes (use the alarm input port)
Network Port 1 × 10Mbps/100Mbps Ethernet port
Performance
Casing Material PC + ABS
General
Appearance Color White
Power Supply 48 VDC 0.4 A Standard PoE
Power Adapter Optional
Installation Surface Mount
Certifications THERE IS
Accessory Included: RS-485 and power output cable, power cord， bracket and alarm cable.
Product Dimensions 210.2mm × 103.1mm × 18.6mm (8.28" × 4.06" × 0.73") (H × W × D)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Below 3,000 m (9,842.52 ft)
Power Consumption ≤ 3.8 W (standby), ≤ 10 W (working)
Gross Weight 0.6 kg (1.32 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75%
Operating Environment Indoor
