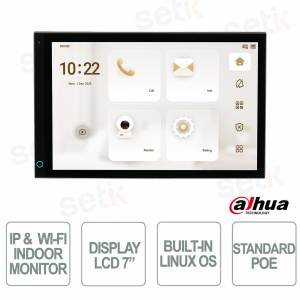

VTH5721A-WP 7" Wi-Fi IP Indoor Monitor with Touchscreen, PoE, and Two-Way Audio - Dahua

VTH5721A-WP 7" Wi-Fi IP Indoor Monitor with Touchscreen, PoE, and Two-Way Audio - Dahua

 
-56%

VTH5721A-WP is an IP & Wi-Fi indoor monitor designed for advanced video intercom systems, equipped with a 7" IPS touchscreen display with 1024×600 resolution for clear images and smooth interaction. Based on an embedded Linux system , it supports IP and Wi-Fi connections for flexible and integrated management. It integrates two-way audio with digital noise reduction and smart functions such as elevator control, video messaging and DND mode. The elegant full-screen design with brightness sensor ensures an optimal user experience. Thanks to PoE support and compatibility with multi-extension systems, it represents a complete solution for residential and professional environments. Dahua

Technical data sheet

Artikel-Nr.: VTH5721A-WP

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

VTH5721A-WP | IP & WI-FI INDOOR MONITOR

Dahua

The Dahua VTH5721A-WP is an IP & Wi-Fi indoor monitor designed for advanced video intercom systems, equipped with a 7" IPS touchscreen display with 1024x600 resolution and wide viewing angle for a smooth and detailed visual experience. Based on an embedded Linux system , it supports IP and Wi-Fi connections for flexible and integrated management. It integrates two-way audio with digital noise reduction and smart functions such as elevator control, video messages and DND mode. The full-screen design with brightness sensor and automatic activation improves user interaction. Thanks to PoE support and multi-extension management, it is ideal for residential and professional environments.

Main specifications:

- 7" IPS touchscreen display with 1024×600 resolution

- Embedded Linux system with IP and Wi-Fi support

- Two-way audio with digital noise reduction

- Smart functions: video messages, elevator control and DND

- Micro SD support up to 512 GB

- Full ports with RS-485, alarm inputs and Ethernet

- PoE power supply for easy installation

Further details

✅ Display :
The monitor integrates a 7" IPS touchscreen display with 1024×600 resolution and up to 178° viewing angle , designed to offer sharp images, accurate colors and fluid interaction thanks to capacitive technology and full-screen design.
✅ System :
Based on an embedded processor with a Linux operating system , it ensures stability and reliable performance, supporting advanced protocols such as IPv4, SIP, RTSP and TCP/IP for complete integration into IP video intercom systems.
✅ Functions:
It offers complete digital communication , notification management, audio/video messages , elevator control and Do Not Disturb mode, with intelligent sensors such as automatic activation and brightness adjustment for an advanced user experience.
✅ Network:
It supports advanced connectivity with wired IP network and 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n/ax) , ensuring installation flexibility and stable communication between system devices.
✅ Doors :
It features comprehensive interfaces including RS-485, 8 alarm inputs, alarm output, Ethernet port and 12V DC output , allowing integration with security systems, doorbell and home automation.
✅ Performance :
Built with PC + ABS materials, it ensures reliability and durability, with low power consumption ( ≤3.7W standby / ≤9.45W operating ) and optimized performance for continuous use in indoor environments.

Technical data sheet

VTH5721A-WP
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Network Protocol IPv4;RTSP;UDP;DNS;RTP;TCP;SIP
Basic
Screen Type Capacitive Touchscreen
Display Screen 7-inch display screen
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16KHz，16Bit
Function
Communication Mode Full digital
Information Release Receive and view the published information from the management center
Elevator Control Residents can call the elevator through this device to their desired floor.
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
DND Mode Do not disturb period can be set
Number of Extensions Villa: 1 main VTH and 9 extensions. Apartment: 1 main VTH and 4 extensions
Storage Supports micro SD card storage (up to 512 GB)
Network
Wi-Fi Yes
Standard Wi-Fi IEEE 802.11b/g/n/ax
Wireless Frequency Range 2.4 GHz
Max. Transmission Power ≤[email protected] MHz
Port
RS-485 1
Alarm Input 8 channels
Alarm Output 1 channel
Power Output 1 port (12 V, 200 mA)
Door Bell Yes (use the alarm input port)
Network Port 1 × 10Mbps/100Mbps Ethernet port
Performance
Casing Material PC + ABS
General
Appearance Color Gray
Power Supply 12 VDC 1 A Standard PoE
Power Adapter Optional
Installation Surface Mount
Certifications THERE IS
Accessory Included: RS-485 and power output cable, power cord， bracket and alarm cable.
Product Dimensions 176.2 mm × 103.1 mm × 18.6 mm (6.94" × 4.06" × 0.73") (H × W × D)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Below 3,000 m (9,842.52 ft)
Power Consumption ≤ 3.7 W (standby), ≤ 9.5 W (working)
Gross Weight 1.2 kg (2.65 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75%
Operating Environment Indoor
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
