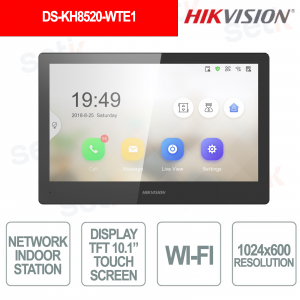

DS-KH8520-WTE1 - is the ideal IP internal station for advanced video intercom systems, equipped with a 10.1” TFT touch display with 1024×600 resolution for intuitive and professional access management. Thanks to compatibility with the Hik-Connect APP , it allows you to receive calls, open doors and view cameras remotely directly from your smartphone. It integrates Wi-Fi 802.11 b/g/n , two-way audio with noise suppression and echo cancellation , support for up to 16 connected IP cameras and elevator access control. Quick PC-free configuration, PoE support and alarm inputs make this Hikvision internal monitor perfect for smart homes, offices and condominiums. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-KH8520-WTE1

Marke: Hikvision

EAN: 6954273691608

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-KH8520-WTE1 – NETWORK INDOOR STATION

Hikvision

Hikvision DS-KH8520-WTE1 is a latest-generation IP indoor monitor designed for smart video intercom systems, ideal for modern homes and offices. Thanks to the 10.1” TFT touch display with 1024×600 resolution , it allows intuitive management of calls, door opening and live viewing of cameras directly remotely via the Hik-Connect app. The device supports integrated Wi-Fi , SIP/RTSP communication and IEEE802.3af PoE power supply, offering simplified installation and maximum integration with Hikvision security systems. Compatible with advanced functions such as voice messaging, elevator control and integrated alarm management.

Main features:

- 10.1” TFT capacitive touch screen

- HD resolution 1024 × 600

- Remote control via Hik-Connect

- Integrated Wi-Fi 802.11 b/g/n

- IEEE802.3af PoE support

- Two-way audio with echo cancellation

- Supports up to 16 IPCs and 17 external stations

- 8-channel alarm input

Further details

✅ 10.1” TFT Touch Screen:
The capacitive color display offers a modern and intuitive user experience, ideal for managing the Hikvision IP video intercom, with quick control of calls, cameras and smart functions directly from the internal monitor.
✅ 1024 × 600 HD Resolution:
 High-definition video quality ensures sharp, detailed images during live view of cameras and outdoor stations, improving security and access control.
✅ Integrated Wi-Fi 802.11 b/g/n :
Wireless connectivity allows for easier installation without complex wiring, ensuring stable communication with the video intercom system and remote management via the Hik-Connect app.
✅ IEEE802.3af PoE Power Supply :
Thanks to Power over Ethernet technology, the device transmits data and power via a single network cable, reducing installation time and professional cabling costs.
✅ 8-Channel Alarm Input :
Support for connecting sensors and intrusion detection systems allows the monitor to be integrated with advanced security systems, receiving notifications and managing alarms in real time directly from the internal panel.

Technical data sheet

DS-KH8520-WTE1
Display parameters
Size 10.1-inch
Operation method Capacitive touch screen
Type Colorful TFT screen
Video parameters
Lens Not supported.
FOV /
Pixel /
Audio parameters
Audio quality Noise suppression and echo cancellation
Network parameters
Communication protocol TCP/IP, SIP, RTSP
Wired network 10/100 Mbps self-adaptive
Wi-Fi Wi-Fi 802.11 b/g/n
Bluetooth /
Zigbee /
Device interfaces
Network interface 1 RJ-45 10/100 Mbps self-adaptive
Power interface 1
General
Button 0
Installation Surface mounting
Indicator 0
Wheight 1118 g (with packaging)
660 g (without packaging)
Protective level /
Power supply method IEEE802.3af, PoE standard
12 VDC/1 A
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions 254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89")
Battery /
Application environment Indoor
Power consumption ≤ 6 W
Language English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
