DS-KV8413-WME1 - The video intercom external unit is the ideal solution for villas and detached homes thanks to its aluminum alloy structure with IP65 and IK08 protection, designed to withstand atmospheric agents and impacts. It integrates a 2 MP Full HD 1080p camera with IR illumination up to 3 meters , two-way audio with omnidirectional microphone and noise cancellation for always clear communications. Equipped with 4 call buttons , integrated 13.56 MHz badge reader and support for up to 10,000 cards , it guarantees advanced and professional access control. 2.4 GHz Wi-Fi connectivity, standard PoE support and remote management via Hik-Connect APP make installation simple and monitoring convenient wherever you are. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-KV8413-WME1

Marke: Hikvision

EAN: 6931847179427

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

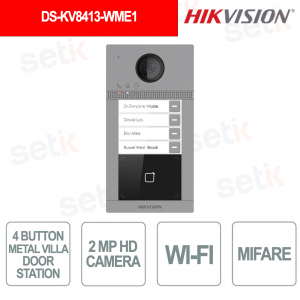

DS-KV8413-WME1 – 4 BUTTONS METAL VILLA DOOR STATION

Hikvision

The Hikvision DS-KV8413-WME1 outdoor IP video intercom is designed for villas and detached homes, offering advanced access management with a 2 MP Full HD camera , IR night vision up to 3 meters and two-way audio with noise cancellation. Thanks to the 4 customizable call buttons , the integrated 13.56 MHz badge reader and compatibility with the Hik-Connect app, it allows remote control directly from your smartphone. The IP65 and IK08 aluminum alloy structure guarantees high resistance to dust, rain and impacts, while the standard PoE power supply simplifies installation and wiring. It also supports 2.4 GHz Wi-Fi connection, ONVIF protocols and management of up to 10,000 cards for a professional and reliable security system.

Main features:

- 2 MP Full HD 1080p camera with 124° wide angle view and integrated IR up to 3 m

- Advanced two-way audio with omnidirectional microphone, built-in speaker and echo cancellation

- 4 physical call buttons for multi-user management in villas and independent homes

- 13.56 MHz RFID badge reader with support for up to 10,000 user cards

- IP65 and IK08 protection with weather-resistant aluminum alloy body

- PoE and 2.4 GHz Wi-Fi connectivity for easy installation and remote control via Hik-Connect

- ONVIF and TCP/IP compatibility for integration with video surveillance and security systems

- Support for up to 16 secondary external units and 4 main internal monitors for advanced systems

Further details

✅ System Parameters:
Hikvision IP Video Intercom integrates a Linux operating system with a high-performance processor , 256MB RAM and 32MB ROM , ensuring operational stability, rapid response to commands and reliable management of access control and communication functions in advanced residential environments.
✅ Video Parameters:
 Equipped with a 2 MP Full HD camera with a resolution of up to 1920×1080 , it offers clear and detailed images thanks to H.264/H.265 video compression. The wide 124° horizontal viewing angle, the Digital WDR system and IR illumination up to 3 meters ensure optimal visibility even in low light conditions.
✅ Audio Parameters :
The two-way audio system includes a built-in omnidirectional microphone and high-quality speaker with Opus, AAC, and G.711 codec support, providing clear and smooth communications. Noise reduction and echo cancellation features improve the audio experience during remote conversations.
✅ Network Parameters :
Thanks to TCP/IP, RTSP, IPv6, and ONVIF support, the device easily integrates into professional video surveillance and security networks. The 2.4 GHz IEEE802.11 b/g/n Wi-Fi connection and standard PoE power supply allow for quick installation, remote management via app, and maximum configuration flexibility.
✅ Authentication :
The authentication module with integrated 13.56 MHz RFID reader allows secure access management with support for up to 10,000 badges and 2,000 users , ideal for villas, condominiums and residential structures requiring advanced access control.
✅ Device interfaces :
The outdoor station has numerous professional interfaces including a 10/100 Mbps RJ45 port , alarm inputs, door contacts, relay outputs for lock control and an RS-485 port. The presence of 2 door opening relays , TAMPER inputs and exit buttons guarantees complete integration with security and automation systems.

Technical data sheet

DS-KV8413-WME1
System parameters
Operation system Linux
Processor Embedded high performance processor
ROM 32 MB
RAM 256 MB
Video parameters
Lens 3
Resolution Main stream: 1920 × 1080p, and 1280 × 720p
Substream: 640 × 480p
FOV Horizontal: 124° Vertical: 75°
Wide dynamic range (WDR) Digital WDR/76.9 dB
Supplement light IR light, up to 3 m
WDR True WDR
Field of view Horizontal: 129° Vertical: 75°
Video compression standard H.264; h.265; MJPEG
Audio parameters
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1、
Audio output built-in loudspeaker
Audio compression bitrate 64 Kps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Capacity
User capacity 2000
Card capacity 10000
Linked indoor station capacity 4 (main indoor station)
Sub-door station capacity 16
Network parameters
Network protocol TCP/IP, RTSP, IPv6, Onvif
Wi-Fi IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth /
3G/4G /
Received frequency 2.4 to 2.4835 GHz
Transmitted frequency 2.4 to 2.4835 GHz
Bandwidth 20/40 MHz
Frequency power 802.11b:15 dBm +/- 1.5 dBm
802.11g: 15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
Authentication
Card reading frequency 13.56 MHz
Device interfaces
Alarm input 4
Network interface 1 RJ-45,10/100 Mbps self-adaptive
TAMPER 1
Exit button 2
RS-485 1
USB /
Wiegand /
TF card Reserved
Alarm output /
Lock control 2 relays, Max. 30 VDC 2 A
Door contact input 2
General
Button 4 physical buttons
Installation Surface mounting
Indicator 3
Weight Net weight: 0.400 kg
Gross weight: 0.658 kg
Protective level IP65, IK08
Working temperature -40° C to 53° C(-40° F to 127.4° F)
Working humidity 10% to 95% (no condensation)
Dimensions 174 mm × 91 mm × 29 mm
Battery /
Application environment Outdoor
Power consumption ≤ 10 W
Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
