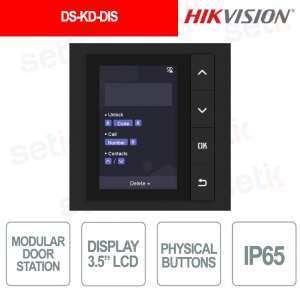

DS-KD-DIS 3.5” IP65 LCD Display Module for KD8 Pro Modular Video Intercom - Hikvision

DS-KD-DIS 3.5” IP65 LCD Display Module for KD8 Pro Modular Video Intercom - Hikvision

 
-35%

DS-KD-DIS - The KD8 Pro Modular Door Station series display module is designed for professional modular video intercom systems, offering a practical 3.5" TFT LCD display with display of numbers, contact list and PIN code opening. Thanks to the capacity to store up to 2000 contacts , it allows simple and efficient access management in residential and condominium contexts. The IP65 protected structure ensures reliability even in outdoor environments, while backlight compensation improves display readability in all lighting conditions. Equipped with 4 physical buttons , multilingual support and flush-mounted or surface installation, it represents a modern and versatile solution for Hikvision video intercom systems. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-KD-DIS

Marke: Hikvision

EAN: 6941264011590

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-KD-DIS – KD8 PRO MODULAR DOOR STATION SERIES

Hikvision

The Hikvision DS-KD-DIS display module for KD8 Pro series modular video intercoms offers modern and intuitive access management thanks to the 3.5" TFT LCD display with advanced display of numbers, contacts, and PIN code opening. Designed for outdoor installation, it integrates IP65 protection against dust and water, ensuring reliability and long-lasting durability. The memory can store up to 2000 contacts , while the 4 physical buttons ensure simple and immediate use. Compatible with flush-mounted or surface installation and featuring multilingual support, it is the ideal solution for professional Hikvision video intercom systems in residential and condominium contexts.

Main features:

- 3.5” TFT LCD display with 320×480 resolution and adjustable brightness up to 250 cd/m²

- Advanced display of numbers, contact list and opening via PIN code

- Capacity up to 2000 contacts for professional and organized access management

- IP65 protection ideal for outdoor installations resistant to water and dust

- 4 physical buttons for easy navigation and intuitive use

- Multilingual support for versatile management in international environments

- Flush or surface installation for maximum mounting flexibility

- Built-in RS-485 interface compatible with Hikvision KD8 Pro modular systems

Further details

✅ System Parameters:
Hikvision display module integrates a Linux operating system with a high-performance embedded processor , supported by 64MB RAM and 8MB ROM , ensuring fast operation, system stability and smooth management of professional modular video intercom functions.
✅ Display Parameters:
 The device is equipped with a 3.5-inch TFT LCD display with 320x480 resolution, adjustable brightness up to 250 cd/m² , and an intuitive interface with physical buttons. The advanced display allows for contact management, dialing, and door opening via PIN code, with excellent readability even in outdoor environments.
✅ Device interfaces :
The module features a built-in RS-485 interface, ideal for integration with Hikvision KD8 Pro modular systems and professional security systems. The structure is designed for flush-mounted or surface-mounted installations and ensures compatibility with advanced video intercom configurations.
✅ Capacity :
Thanks to the internal memory, the system supports the storage of up to 2000 contacts , allowing for organised and fast call management in residential, condominium and commercial contexts with a high number of users.
✅ 4 physical buttons :
The 4 multifunctional physical buttons ensure simple and immediate navigation within the video intercom menu, improving the user experience when searching for contacts, dialing numbers and managing access functions.

Technical data sheet

DS-KD-DIS
System parameters
Operation system Embedded Linux operation system
CPU Embedded MCU Processor
ROM 8 MB
RAM 64 MB
Display parameters
Screen size 3.5-inch
Operation method Physical buttons
Type TFT LCD screen
Resolution 320 × 480p
Brightness 250 cd/m2
Device interfaces
Alarm input /
Network interface /
TAMPER /
Exit button /
RS-485 1
USB /
Wiegand /
TF card /
Alarm output /
Door contact input /
Power interface 1
General
Button 4(Up, Down, OK, Back)
Installation Flush mounting, surface mounting
Indicator /
Weight /g
Protective level IP65
Working temperature 20° C to +60° C(-4° F to 140° F)
Working humidity 10% to 95%
Dimensions 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Battery /
Application environment Outdoor
Power consumption ≤ 2.5 W
