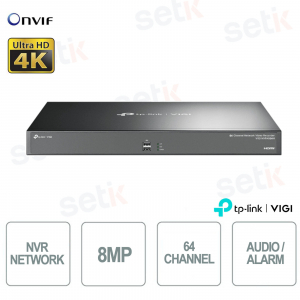

VIGI NVR4064H TP-Link VIGI NVR IP network 64 channels (16 channels 2MP / 8 channels 4MP / 16 channels Synchronous Playback), 320Mbps input and output bandwidth. H265+ compression, maximum resolution 8MP - 2x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 16 in alarm 4 out alarm, 1x RS232, 2x HDMI, 1x VGA - supports 4 SATA HDD up to 16TB - Motion detection, abandoned object detection, vehicle and person detection, smart frame. Dimensions: 440 × 330 × 44 mm
3 Years Warranty
TOTALER AUSVERKAUF ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

 VIGI NVR4064H NVR NETWORK TP LINK VIGI 64 CHANNELS 4K HDMI 8MP |

TP-Link VIGI 8MP IP network NVR 64 channels - VIGI NVR4064H
 Max Resolution 8MP - 64 channels (16 channels 2MP / 8 channels 4MP / 16 channels Synchronous Playback) - H.265+ Compression - Support 4HDD up to 16TB - 320Mbps in/out - 1 Audio in/out - 16 in & 4 alarm out
 2x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 16 in alarm 4 out alarm, 1x RS232, 2x HDMI, 1x VGA
 Motion Detection - Abandoned Object Detection - Vehicle and Person Detection -Smart Frame
 Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
 - 64 Channel 4K HDMI 16 Channel 2MP / 8 Channel 4MP / 16 Channel Synchronous Playback
 - 320 Mbps incoming bandwidth and 320 Mbps outgoing bandwidth
 - Maximum resolution 8MP
 - Ports: 2x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 16 in alarm 4 out alarm, 1x RS232, 2x HDMI, 1x VGA
 - Supports 4HDD up to 16TB
 - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection -Smart Frame
 - Remote monitoring
 - 3 years warranty

TECHNICAL DATA SHEET
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260Mbps Extended Bandwidth Mode: 320Mbps  |
| Outgoing Bandwidth | Default: 180Mbps Extended Bandwidth Mode: 320Mbps  |
| HDMI Output Resolution | 2 Channels HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz  |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI1/HDMI2 Independent output HDMI1/VGA Independent output Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.  |
| Multi-View Display | 1,4,6,8,9,16,25,32,36,49,64 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: 16-ch@2MP、32-ch@720P、64-ch@D1 30fps: 4-ch@8MP、6-ch@5MP、8-ch@4MP  |
| RECORD MANAGEMENT | |
| Record Mode |
  |
| Playback Mode |
  |
| Backup Mode |
  |
| Playback Function |
  |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 2, RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| HARD DISK | |
| SATA | 4 SATA Interfaces |
| ALARM | |
| General Alarm |
  |
| Anomaly Alarm |
  |
| Alarm Linkage |
  |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90%RH Non-Condensing |
| Package Contents |
  |
| Working Temperature | NVR: -10–55 °C |
| Working Humidity | 10%~90%RH Non-Condensing |
| Dimensions (L x W x H) | 440 × 330 × 44 mm |
| External power supply | 100-240VAC, 50-60HZ, 1.5A |
| Net Weight | 4.0 Kg |
| Gross Weight | 5.0 Kg |
| Power Supply | 100-240VAC, 50-60Hz, 1.5A |
| Power Consumption | 6.95W (Without Disk) 48.38 W (With Disk)  |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
![]()  |

  |
|
 Feature-rich ports for SMB surveillance
  |
|
|
 Dual Ethernet Port Design
  |
|
|
 One-click system initialization VIGI NVRs allow you to quickly add cameras, initialize HDDs and schedule storage with just one click, reducing installation costs.
  |
|
|
 3 year warranty The following product is covered by a 3 year warranty  |
|
