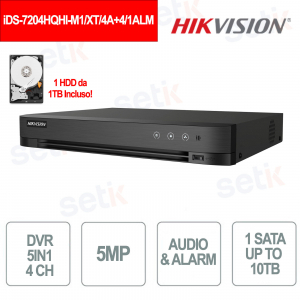

Hikvision AcuSense 5MP H.265 Pro+ 4-Channel DVR with AI and Audio + 1TB HDD Included

Hikvision AcuSense 5MP H.265 Pro+ 4-Channel DVR with AI and Audio + 1TB HDD Included

 
BEST PRICE -35%

iDS-7204HQHI-M1/XT/4A+4/1ALM - 4-channel DVR supports analog HD cameras up to 5MP and integrates AcuSense technology for intelligent person and vehicle detection, reducing false alarms. Compatible with TVI, AHD, CVI, CVBS, and IP, it guarantees maximum installation flexibility. Supports H.265 Pro+ encoding for bandwidth and storage savings, coaxial audio, and up to 6 IP channels. 1 TB HDD included. Perfect for professional, smart, and AI-ready video surveillance systems. Hikvision

Technical Data Sheet

Artikel-Nr.: iDS-7204HQHI-M1/XT/4A+4/1ALM

Marke: Hikvision

EAN: 6942160473796

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

iDS-7204HQHI-M1/XT/4A+4/1ALM – 4-CHANNEL DVR WITH AUDIO SUPPORT 5MP AND AI

Hikvision

The iDS-7204HQHI-M1/XT/4A+4/1ALM - DVR is a 4-channel hybrid video recorder, part of the AcuSense series, designed for security systems requiring reliability, artificial intelligence, and high compatibility. It supports analog HDTVI cameras up to 5MP and up to 6 IP channels, allowing flexible integration with existing or mixed systems. Integrated AcuSense technology enables intelligent detection of people and vehicles, improving video surveillance efficiency and drastically reducing false alarms. H.265 Pro+ compression optimizes storage space and bandwidth without compromising video quality. 1 x 1 TB HDD included. Thanks to coaxial audio, multi-standard compatibility (TVI, AHD, CVI, CVBS, and IP), and remote management, this DVR is a perfect solution for smart installations in residential, commercial, and corporate environments, also with an AI-ready perspective.

Further details

✅ 4 Video Channels + 1 Panoramic View Channel : Supports up to 4 analog and 6 IP cameras for complete flexibility.
✅ Resolution up to 5MP on HDTVI : High definition recording for detailed images.
✅ AcuSense Technology (AI Deep Learning) : Intelligent detection with classification of people and vehicles.
✅  Advanced false alarm filter : Eliminate unnecessary notifications caused by animals, lights or irrelevant motion.
✅ H.265 Pro+ Video Encoding : Greater compression to save disk space and network bandwidth.
✅ Audio over Coax (AoC) : Transmit audio using the same coaxial video cable, simplifying installation.
✅ Compatibility with TVI, AHD, CVI, CVBS and IP : Manage hybrid systems or upgrade existing systems without replacing cameras.
✅ Simultaneous HDMI and VGA Outputs : Local viewing on multiple screens simultaneously.
✅ Remote control via app (Hik-Connect), browser or iVMS-4200 software : Simple management from PC, smartphone or tablet, even remotely.
✅ Advanced security features : Area masking, password protection, multi-level user management.
✅ 24/7 Continuous Operation with SATA HDD Support : Secure and continuous storage up to 10TB.
iDS-7204HQHI-M1-XT-4A+4-1ALM dimensions

Technical data sheet

Model iDS-7204HQHI-M1/XT/4A+4/1ALM
Facial Recognition
Face Picture Comparison Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
Face Picture Library Up to 16 face picture libraries
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis Up to 2-ch
Video and Audio
IP Video Input 2-ch (up to 6-ch), Up to 6 MP resolution
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 3K(2880×1620)@25fps, 5MP(2592×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode is not enabled:
3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network
Remote Connection 32
Total Bandwidth 72 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface 1, RJ45 10/100Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA 1 SATA interface, up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out N/A (optional to support);4/1
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 18 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16 kg (2.6 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
