AcuSense 5MP 16-Channel DVR with AI, H.265 Pro+, Vehicle/People Detection and Remote Access - Hikvision

AcuSense 5MP 16-Channel DVR with AI, H.265 Pro+, Vehicle/People Detection and Remote Access - Hikvision

BEST PRICE -35% Neu

iDS-7216HUHI-M2/X 4A+16IN/4ALM - AcuSense Series DVR is a 16-channel hybrid video recorder with IP support and resolution up to 5MP. Thanks to artificial intelligence, it detects people and vehicles with precision, reducing false alarms. It supports TVI, AHD, CVI, CVBS and IP signals, with H.265 Pro+ compression to optimize bandwidth and space. Includes HDMI/VGA outputs, audio on all channels and remote access via Hik-Connect. Ideal for professional video surveillance systems.

Technical Data Sheet



Artikel-Nr.: iDS-7216HUHI-M2/X 4A+16IN/4ALM

Marke: Hikvision

EAN: 6942160459608

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

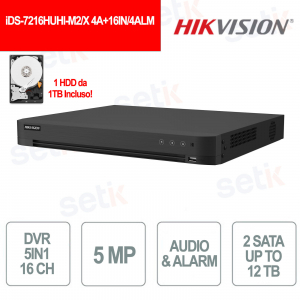

iDS-7216HUHI-M2/X 4A+16IN/4ALM – 16 CHANNEL DVR WITH 5MP AUDIO AND AI SUPPORT

Hikvision

iDS-7216HUHI-M2/X 4A+16IN/4ALM -  AcuSense Series DVR is a 16-channel BNC hybrid video recorder, expandable with IP channels, designed for highly reliable professional video surveillance systems. It supports resolutions up to 5MP and integrates AcuSense artificial intelligence for accurate detection of people and vehicles, drastically reducing false alarms. Compatible with TVI, AHD, CVI, CVBS and IP technologies, it guarantees maximum flexibility. It includes H.265 Pro+ video compression for space and bandwidth savings, HDMI and VGA outputs, audio on all channels, intelligent search functions and remote access via Hik-Connect. A complete solution for residential, commercial and industrial systems.


Further details

16 BNC channels + 8 IP channels (up to 24 total video channels)
Resolution supported up to 5MP on analog
AcuSense technology with advanced AI for people and vehicle detection
Compatible with TVI, AHD, CVI, CVBS, IP signals (5-in-1)
 H.265 Pro+ video compression for storage and bandwidth optimization
H.265 Pro+ compression for bandwidth and storage optimization
Simultaneous HDMI (up to 4K) + VGA video outputs
Audio on all BNC channels, with RCA input/output
2 SATA slots for hard drives up to 12TB
Intelligent AI-based event search
Motion detection, signal loss, video masking
Support P2P, DDNS and cloud management
Fast backup via USB 2.0 and USB 3.0
User-friendly and multilingual graphical interface
Remote access via Hik-Connect, browser and iVMS-4200 software
Ideal for large scale security installations
iDS-7216HUHI-M2-X 4A+16IN-4ALM dimensions

Technical data sheet

Model iDS-7216HUHI-M2/PXT/4A+4/1ALM
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library
has been backed up by HDD and flash.
Face Picture Comparison

4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0
Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture Face picture detection, face picture search:
4-ch face image capture
Video and Audio
IP Video Input 16-ch (up to 32-ch), each up to 8MP
Analog Video Input 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 16-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Input 4-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32Kbps to 10Mbps
Dual stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Total Bandwidth 256 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 128
Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA 2 SATA interfaces,
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half duplex)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
Alarm In/Out 4/1
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
consumption ≤ 20W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimensions 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight ≤ 2.1kg (4.6lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
