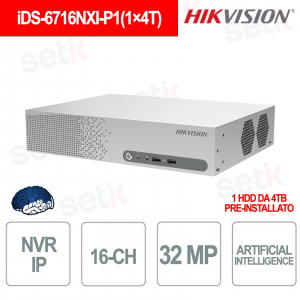

iDS-6716NXI-P1(1×4T) 16-Channel 8K AI NVR with 4TB HDD, ANPR and Facial Recognition - Hikvision

iDS-6716NXI-P1(1×4T) 16-Channel 8K AI NVR with 4TB HDD, ANPR and Facial Recognition - Hikvision

 
-35%

iDS-6716NXI-P1(1×4T) - DeepinMind Pro NVS is a professional recorder with support for up to 16 IP cameras and resolution up to 32 MP , designed for advanced video surveillance systems with Guanlan AI Models . It integrates advanced facial recognition , perimeter protection , ANPR , AcuSearch and AcuSeek functions for high-precision intelligent video analytics. It supports video output up to 8K , H.265+ compression and 16-channel synchronized playback, ensuring high recording and monitoring performance. Equipped with a pre-installed 4TB HDD with 1 SATA interface and expandability up to 20TB, it offers ample storage capacity for professional and corporate systems. Hikvision

Technical Data Sheet

Artikel-Nr.: iDS-6716NXI-P1(1×4T)

Marke: Hikvision

EAN: 6936422168568

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

iDS-6716NXI-P1(1×4T) – 16-CHANNEL NVR - 32MP RESOLUTION - ARTIFICIAL INTELLIGENCE - 4TB HDD INCLUDED

Hikvision

The Hikvision iDS-6716NXI-P1(1x4T) DeepinMind Pro NVS is a professional video surveillance recorder designed for advanced systems with support for up to 16 IP cameras and resolution up to 32 MP . Thanks to the Guanlan Large-Scale Models AI platform, it integrates intelligent functions such as facial recognition , perimeter protection , ANPR , AcuSearch and AcuSeek for advanced video analytics and rapid event search. It supports video output up to 8K , H.265+ compression, simultaneous playback on 16 channels and has a pre-installed 4TB SATA HDD for reliable and immediate storage in business and professional security environments.

Main features:

- Support up to 16 IP cameras

- Video resolution up to 32 MP

- HDMI 8K Ultra HD video output

- Guanlan Large-Scale Models AI Technology

- Advanced facial recognition

- Intelligent perimeter protection

- AcuSearch and AcuSeek functions

- ANPR with license plate recognition

- H.265+ video compression

- 16-channel synchronized playback

- 1 x 4TB SATA HDD pre-installed

- Support up to 20TB per HDD

- Dual Gigabit Ethernet ports

- ONVIF, RTSP and HTTPS compatibility

Further details

✅ Number of Channels:
 The recorder supports up to 16 IP channels for simultaneous management of professional high-definition cameras, ideal for advanced video surveillance systems in commercial, industrial and corporate environments.
✅ Resolution :
 Compatible with recording up to 32 MP and video output up to 8K Ultra HD , it guarantees extremely detailed images and high performance for professional monitoring and playback.
✅ AcuSearch:
 The AcuSearch AI function enables fast intelligent search of subjects and targets in recorded videos, with support for up to 600,000 targets per day , optimizing investigation and security operations.
✅ AcuSeek:
 Powered by AcuSeek technology, the system uses advanced deep learning algorithms to detect and track people and vehicles in video, improving the speed and accuracy of intelligent video searches.
✅ Perimeter Protection :
The intelligent perimeter protection function uses Guanlan AI models to distinguish people and vehicles from irrelevant events, dramatically reducing false alarms and increasing the reliability of the security system.
✅ Facial Recognition :
 The system integrates advanced AI facial recognition with image comparison, face capture and management of up to 100,000 facial images , ideal for access control and subject identification.
✅ ANPR :
 ANPR technology allows for the automatic recognition of vehicle license plates by analyzing the license plate number, color, make, and vehicle type , supporting numerous European and international countries.
✅ Video & Audio :
The recorder supports H.265+ compression, dual 8K/4K HDMI output, two-way RCA audio and 16-channel synchronized playback, offering high video quality and professional audio management.
✅ Network :
 Equipped with dual RJ-45 Gigabit Ethernet ports, it supports advanced protocols such as ONVIF, RTSP, HTTPS, IPv6 and iSCSI , ensuring complete system integration and secure remote management.
✅ Disk Capacity :
 It supports hard drives with capacities up to 20TB , providing ample storage space for continuous high-resolution recording and professional video surveillance applications.
✅ Pre-installed HDD :
 The recorder comes with a pre-installed 4TB SATA HDD , ready to use to ensure immediate and reliable storage without the need for additional configuration.

Technical data sheet

iDS-6716NXI-P1(1×4T)
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, video structuralization, AcuSearch, AcuSeek
AI by Camera Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine 1 GPU Engine, only for AcuSeek and OVD
2 GPU Engines, each GPU engine can run an intelligent algorithm, engine mode is adjustable, performance of each GPU engine (choose 1 from 4):
Facial recognition: 8-ch (4MP) video target capture or 16-ch image comparison
Perimeter prevention: 12-ch (2MP) video analysis or 16-ch image analysis
Video Structuralization: 8-ch (2MP) video structured analysis
AcuSearch: support 16-ch (2MP) by NVR
Note: To enable AcuSeek, at least one engine must be enabled in AcuSearch mode.
AcuSearch
AI by Camera All channels, up to 600,000 targets/day
The camera should enable AcuSearch function
AI by NVR Up to 16ch-2MP/8ch-4MP/4ch-8MP normal IP camera access to achieve AcuSearch.(1 GPU engine for target capture, 1 GPU engine for AcuSearch modeling)
AcuSeek
Performance The NVR supports 16ch-2MP/8ch-4MP/4ch-8MP normal IP camera access to achieve AcuSeek.(1 GPU engine for target capture, 1 GPU engine for AcuSearch modeling,1 GPU engine for AcuSeek modeling)
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 600,000 targets/day.
Search Language English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish
Perimeter Protection
By NVR Perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP. 1 GPU engine for live video analysis, 1 GPU engine for lager model algorithm secondary analysis, capable of secondary analysis is 2 events/s) perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
By Camera Perimeter protection powered by Large Model with AcuSense cameras: All channels
Video Structuralization
Structured Analysis 16-ch 2 MP
12-ch 4 MP
6-channel 8 MP
Facial Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Face Picture Library Up to 32 face picture libraries, up to 100,000 face pictures in list library
Face Picture Comparison
(Captured from Camera)		 16-ch; (32-ch for each engine);
Comparison speed: 32 pictures per second
Facial Detection and Analytics Performance 16-ch(2MP-8ch./4MP-8ch./8MP-4ch. for each engine face pictures captured by NVR)
ANPR
By Camera All channels
Support Countries & Regions:
1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia
2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, The United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland, Liechtenstein
3. Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia, Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Cote d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal, Algeria, Cameroon
4. Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt, Libya
Vehicle Attributes Vehicle brand, vehicle color, vehicle type
Plate Attributes Plate number, license plate color, license plate type
Video and Audio
IP Video Input 16-ch
Up to 32 MP resolution
*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI 1 Output 8K（7680×4320）/30Hz，4K（3840×2160）/60Hz，4K（3840×21 60）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
HDMI 2 Output 4K（3840×2160）/60Hz，4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output 1080P (1920 × 1080)/60Hz
Video Output Mode HDMI1/VGA simultaneous output
HDMI2/VGA independent output
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
Decoding Format H.265/H.265+/H.264/H.264+
Decoding Capability 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@16 MP (30 fps)/8-ch@8 MP (30 fps)
Synchronous playback 16-ch
Recording Resolution 32MP/24MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP
API ONVIF (profile S/G); SDK; ISAPI
Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface 2, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface（Pre-installed 4TB HDD)
eSATA 1 eSATA interface
Capacity up to 20 TB capacity for each disk
Serial Interface 1 RS-232, 1 RS-485 (half-duplex)
Alarm In/Out 16/4
USB Interface Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
General
GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian, Hebrew
Power Supply 12 VDC, 5A
Consumption ≤ 50 W
Working Temperature -10 °C to 55 °C (14 to 131° F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 320 × 244 × 65 mm (12.6" × 9.6" × 2.6")
Weight ≤ 3 kg (without HDD, 6.6 lb.)
Certification
Obtained Certification CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA
THERE IS EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
