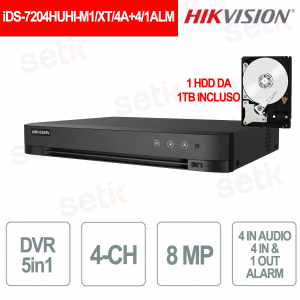

iDS-7204HUHI-M1/XT/4A+4/1ALM 4-Channel AcuSense AI DVR, Alarms, Face Recognition + 1TB HDD Included - Hikvision

iDS-7204HUHI-M1/XT/4A+4/1ALM 4-Channel AcuSense AI DVR, Alarms, Face Recognition + 1TB HDD Included - Hikvision

 
-35%

iDS-7204HUHI-M1/XT/4A+4/1ALM - AcuSense DVR is a professional 4-channel HDTVI/AHD/CVI/CVBS/IP video recorder designed for intelligent video surveillance systems with AI Deep Learning technology. It supports advanced functions such as facial recognition , perimeter protection , AcuSearch and Motion Detection 2.0 with human/vehicle classification to reduce false alarms. Compatible with cameras up to 8 MP , it offers H.265 Pro+ compression, 2K HDMI video output, two-way audio and management of up to 8 IP cameras . 1 TB HDD included. The presence of 4 inputs and 1 alarm output makes the DVR ideal for professional integrations with intrusion detection and advanced security systems. Hikvision

Technical data sheet not available

Artikel-Nr.: iDS-7204HUHI-M1/XT/4A+4/1ALM

Marke: Hikvision

EAN: 6942160403786

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

iDS-7204HUHI-M1/XT/4A+4/1ALM – 4-CHANNEL ACUSENSE DVR - 8MP RESOLUTION - 4 AUDIO INPUTS - 4 INPUTS & 1 ALARM OUTPUT

Hikvision

Hikvision iDS-7204HUHI-M1/XT/4A+4/1ALM AcuSense DVR is a professional video recorder designed for intelligent video surveillance systems with support for up to 4 HDTVI/AHD/CVI/CVBS channels and up to 8 IP cameras . Thanks to AcuSense Deep Learning AI technology, it integrates advanced functions such as facial recognition, perimeter protection, AcuSearch and Motion Detection 2.0 with human/vehicle classification to reduce false alarms. It supports cameras up to 8 MP , H.265 Pro+ compression, 2K HDMI video output and two-way audio for efficient and professional video management. 1 TB HDD included. The presence of 4 inputs and 1 alarm output allows integration with intrusion systems and advanced security automations, making it ideal for residential, commercial and corporate environments.

Main features:

  • AcuSense 4-channel HDTVI/AHD/CVI/CVBS DVR
  • Support up to 8 IP cameras
  • AI Deep Learning AcuSense technology
  • Advanced facial recognition
  • Intelligent perimeter protection
  • Motion Detection 2.0 human/vehicle
  • AcuSearch AI Feature
  • H.265 Pro+ video compression
  • Camera compatibility up to 8 MP
  • HDMI 2K video output
  • Two-way audio
  • 4 input / 1 output alarm interface
  • ONVIF compatibility and Hik-Connect remote management
  • 1 x 1TB HDD included

Further details

✅ Number of Channels:
 Hikvision DVR supports up to 4 analog HDTVI/AHD/CVI/CVBS channels with expansion up to 8 IP cameras , offering a versatile solution for professional video surveillance systems in residential, commercial and corporate environments.
✅ Resolution :
 Compatible with cameras up to 8MP Ultra HD , the recorder ensures detailed images and high-definition recordings with 2K HDMI video output, ideal for professional monitoring and playback.
✅ Perimeter Protection :
The intelligent perimeter protection function uses AI Deep Learning algorithms to distinguish people and vehicles from irrelevant movements, dramatically reducing false alarms and improving the security of sensitive areas.
✅ Facial Recognition :
 The system integrates advanced facial recognition functions with face capture and comparison for intelligent subject identification, ideal for access control, corporate security and rapid event search.
✅ AcuSense Technology :
 Powered by Hikvision AcuSense technology, the DVR uses AI deep learning algorithms to improve alarm accuracy and reliability by automatically classifying people and vehicles in video streams.
✅ Motion Detection 2.0 :
 Intelligent technology based on human/vehicle analysis on all channels , capable of filtering irrelevant events and improving the effectiveness of motion detection.
✅ Video and Audio :
It supports H.265 Pro+ video compression, 2K HDMI video output, two-way audio and high-efficiency recording, ensuring high audio-video performance and storage space optimization.
✅ Network :
 Equipped with a Gigabit Ethernet network interface, it supports advanced protocols such as ONVIF, TCP/IP, RTSP and Hik-Connect , allowing secure remote management and complete integration with IP video surveillance systems.
✅ Interfaces :
The presence of 4 inputs and 1 alarm output allows integration with sensors, sirens and intrusion systems, improving automation and advanced management of professional security.
✅ 5in1 Technology :
 The 5in1 technology guarantees compatibility with HDTVI, AHD, CVI, CVBS and IP signals, offering maximum installation and upgrade flexibility without modifications to the existing infrastructure.

Technical data sheet

iDS-7204HUHI-M1/XT/4A+4/1ALM
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Facial Detection and Capture Face picture detection, face picture search
2-ch face picture comparison alarm (HD analog camera)
Video and Audio
IP Video Input 4-ch (up to 8-ch), Up to 8 MP resolution
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network
Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 32
Network Interface 1, RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
Alarm In/Out 8/4
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 3.0
Alarm In/Out 4/1
General
Power Supply 48 VDC, 1.5 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16 kg (2.6 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
