iDS-7204HTHI-M1/XT DVR AcuSense 4CH 8MP 4K AI Face Recognition H.265 Pro+ + 1 TB HDD Included - Hikvision

iDS-7204HTHI-M1/XT DVR AcuSense 4CH 8MP 4K AI Face Recognition H.265 Pro+ + 1 TB HDD Included - Hikvision

 
-35%

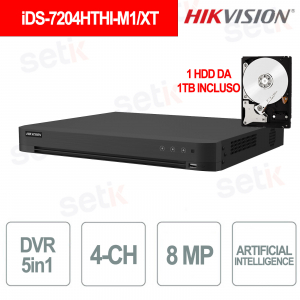

iDS-7204HTHI-M1/XT - AcuSense DVR is a professional 4-channel HDTVI/AHD/CVI/CVBS/IP video recorder with support for up to 8 8MP 4K IP cameras , ideal for intelligent and high-performance video surveillance systems. Thanks to AcuSense Deep Learning AI technology, it integrates advanced facial recognition , perimeter protection and AcuSearch functions for fast and precise video search. H.265 Pro+ compression optimizes storage space and bandwidth. 1 TB HDD included. HDTVI two-way audio support improves real-time security management. Compatible with 5in1 HDTVI/AHD/CVI/CVBS/IP technology, it offers maximum installation flexibility and recording up to 4K Ultra HD . Hikvision

Technical Data Sheet

Artikel-Nr.: iDS-7204HTHI-M1/XT

Marke: Hikvision

EAN: 6942160408521

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

iDS-7204HTHI-M1/XT – 4-CHANNEL ACUSENSE DVR – 8MP RESOLUTION – TWO-WAY AUDIO

Hikvision

The Hikvision iDS-7204HTHI-M1/XT AcuSense DVR is a professional 4-channel HDTVI/AHD/CVI/CVBS/IP video recorder with support for up to 8 8MP 4K IP cameras , ideal for intelligent and high-performance video surveillance systems. Thanks to AcuSense Deep Learning AI technology, it integrates advanced facial recognition , perimeter protection and AcuSearch functions for fast and precise video search. H.265 Pro+ compression optimizes storage space and bandwidth. 1 TB HDD included. HDTVI two-way audio support improves real-time security management. Compatible with 5in1 HDTVI/AHD/CVI/CVBS/IP technology, it offers maximum installation flexibility and recording up to 4K Ultra HD .

Main features:

- AcuSense Professional 4-Channel DVR

- Support up to 8 IP cameras

- Camera compatibility up to 8MP 4K

- AI Deep Learning AcuSense technology

- Facial recognition up to 2 channels

- Intelligent perimeter protection

- AcuSearch AI Technology

- H.265 Pro+ video compression

- Recording up to 4K Ultra HD

- HDTVI two-way audio

- Support Intelligent Motion Detection

- SATA interface up to 12TB

- HDTVI/AHD/CVI/CVBS/IP 5in1 compatibility

- Remote management via Hik-Connect and ONVIF

- 4K HDMI port and simultaneous VGA output

Further details

✅ Number of Channels:
 The Hikvision DVR supports 4 analog HDTVI/AHD/CVI/CVBS channels with expansion up to 8 IP cameras , offering a versatile and professional solution for advanced video surveillance systems.
✅ Resolution :
 Compatible with up to 8MP 4K Ultra HD recording, it ensures detailed images and high video quality with HDMI 4K 3840×2160 support, ideal for professional monitoring and advanced recording analysis.
✅ Perimeter Protection :
Intelligent perimeter protection technology based on AI Deep Learning algorithms enables accurate detection of people and vehicles, significantly reducing false alarms caused by irrelevant environmental elements or movements.
✅ Facial Recognition : The system integrates advanced AI facial recognition functions with image comparison and face search, supporting up to 2 channels of Face Recognition to improve access control and subject identification.
✅ Video and Audio :
It supports H.265 Pro+ video compression, simultaneous audio/video recording and HDTVI two-way audio function, ensuring real-time communication and storage space optimization.
✅ Network :
 Equipped with 10/100 Mbps RJ45 network interface, it supports advanced protocols such as ONVIF, Hik-Connect, HTTPS, DDNS and TCP/IP , allowing secure remote management and integration with professional IP systems.
✅ Interfaces :
The DVR features simultaneous 4K HDMI and VGA outputs, USB 2.0/3.0 ports, RS-485 interface and complete audio/video connections for professional installations and advanced system management.
✅ 5in1 Technology :
 5in1 HDTVI/AHD/CVI/CVBS/IP compatibility ensures maximum flexibility in configuring and updating video surveillance systems without replacing existing infrastructure.

Technical data sheet

iDS-7204HTHI-M1/XT
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Facial Detection and Capture Face picture detection, face picture search
2-ch face picture comparison alarm (HD analog camera)
Video and Audio
IP Video Input 4-ch (up to 8-ch), Up to 8 MP resolution
Analog Video Input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 × 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
AHD Input 5MP(2560×1944)@20fps, 4MP(2560×1440)@25/30fps,1080P@25/30fps, 720P@25/30fps
HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream:
8 MP@12/15 fps/3K@25/20 fps/5 MP@20 fps/4MP/1080P@25 fps (P)/30 fps (N)
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 16 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network
Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection 32
Network Interface 1, RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
Alarm In/Out 8/4
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 3.0
General
Power Supply 48 VDC, 2 A
Consumption ≤ 15 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight ≤ 1.16 kg (2.6 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
