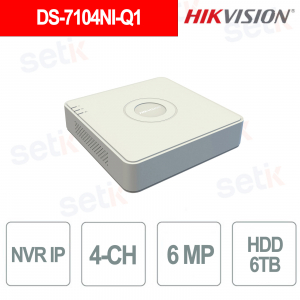

DS-7104NI-Q1 – 4-CHANNEL IP NVR - 6MP RESOLUTION

Hikvision

USE CODE SIGCH886 FOR FREE SHIPPING!

The Hikvision DS-7104NI-Q1 NVR is a 4-channel IP network video recorder designed for compact video surveillance systems, supporting cameras up to 6 MP and input bandwidth up to 40 Mbps. It integrates H.265+/H.265/H.264+/H.264 compression, with storage space reduction of up to 75% , and supports recording up to 4 MP . It offers simultaneous HDMI and VGA outputs , synchronous playback of up to 4 channels and 1 SATA interface for HDDs up to 6 TB . Smart functions include line crossing detection, intrusion detection, smart search and smart playback , while remote management is simplified via Hik-Connect.

Main features:

  • IP Channels: 4
  • Resolution: up to 6 MP
  • Compression: H.265+/H.265/H.264+/H.264
  • Bandwidth: 40 Mbps in / 60 Mbps out
  • Video Outputs: HDMI + VGA
  • Storage: 1 SATA, HDD up to 6 TB
  • Smart functions: line, intrusion, smart search
  • Remote Management: Hik-Connect

Further details

✅ Number of Channels:
 The Hikvision DS-7104NI-Q1 NVR supports up to 4 channels of IP video , allowing the simultaneous connection and management of up to 4 network cameras for compact video surveillance systems.
✅ Resolution :
 It supports IP cameras with resolution up to 6MP and offers decoding capabilities of up to 1 channel 6MP at 30fps, 2 channels 4MP at 30fps or 4 channels 1080p at 30fps , ensuring detailed video playback.
✅ Band :
It has an input bandwidth of up to 40 Mbps and an output bandwidth of up to 60 Mbps , optimizing the management of video streams from IP cameras and network connections.
✅ Storage :
It integrates 1 SATA interface compatible with an HDD up to 6 TB and uses H.265+ compression, a technology that can reduce the required storage space by up to 75% compared to less efficient solutions.
✅ Smart Functions :
It supports line crossing detection and intrusion detection , as well as Smart Search and Smart Playback to quickly locate events in selected areas and make video recording review more efficient.

Technical data sheet

DS-7104NI-Q1
Video and Audio
IP Video Input 4-channel Up to 6 MP resolution
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Decoding
Decoding Format H.265+/H.265/ H.264+/H.264
Recording Resolution 6MP/4MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 4-ch
Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type Video, Video & Audio
Network
Remote Connection 16
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 6 TB capacity for each disk
Alarm In/Out N/A
USB Interface Rear panel: 2 × USB 3.0
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
Weight ≤ 1 kg (2.2 lb)
Certification
THERE IS EN50130-4, EN 61000-3-2,EN 61000-3-3
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
