AJAX FIBRA | 146384.181.BL1 (ex. 82132.181.BL1) # 146384 | Ajax Superior LineSupply (45 W) Fibra is an additional power supply module for Ajax wired devices, designed to extend and boost the Fibra line with a total power of 45 W. It provides 30 W to connected devices and 15 W for charging the backup battery , maintaining power even in the event of a power outage. It supports a wired range of up to 2,000 meters , encrypted Fibra communication and a 24 V output with a maximum current of 1.25 A. It integrates short circuit, overvoltage, tamper and anti-spoofing protection , with configuration and diagnostics via the Ajax app. The black version measures 160 × 85 × 53 mm , weighs 269 g and complies with EN 50131 Grade 3, PD 6662:2017 and INCERT standards.

Technical Data Sheet

Artikel-Nr.: 146384.181.BL1

Marke: Ajax Systems

EAN: 4823114080517

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

146384.181.BL1 (ex. 82132.181.BL1) | MODULE FOR PROTECTING DEVICES ON THE FIBER LINE FROM COUNTERCIRCUITS AND SABOTAGE

Ajax

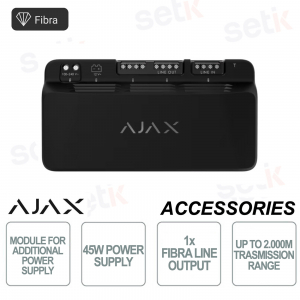

Ajax Superior LineSupply (45 W) Fiber, 146384.181.BL1 (ex. 82132.181.BL1) , black is an additional power supply module for Ajax wired devices, designed to extend the Fiber line and ensure greater operational continuity. It offers 45 W of total power , of which 30 W for connected devices and 15 W for charging the backup battery , keeping the system powered even in the event of a power outage. It supports encrypted Fiber communication up to 2,000 m , 24 V output with maximum current of 1.25 A and protections against short circuits, overvoltages, sabotage and spoofing . The black version measures 160 × 85 × 53 mm , weighs 269 g and complies with EN 50131 Grade 3, PD 6662:2017 and INCERT .

Main specifications:

  • Power: 45W total
  • Output: 24V, max 1.25A
  • Fiber: up to 2,000 m
  • Backup: dedicated battery charging
  • Protection: short, overvoltage, tamper
  • Color: black
  • Certifications: Grade 3, PD 6662, INCERT

Further details

✅ Power :
Ajax Superior LineSupply (45 W) Fibre offers a total power of 45 W , divided into 30 W for powering connected wired devices and 15 W dedicated to charging the backup battery , ensuring reliable additional power supply to the Fibre line.
✅ Exit :
It has 1 output line with a nominal voltage of 24 V⎓ and a maximum current of 1.25 A , designed to provide power to compatible wired devices connected to the Ajax system.
✅ Fiber Technology :
It uses proprietary Ajax Fibra technology for encrypted wired communication with the hub, regular device status polling, and a connection range of up to 2,000 meters with suitable U/UTP Cat. 5 cable.
✅ Backup:
It supports a 12V backup battery with a capacity of 7 to 18 Ah , allowing you to continue powering your connected devices in the event of a main power failure ; the battery is not included in the package.
✅ Certifications:
Ajax Superior LineSupply (45 W) Fibra complies with EN 50131 Grade 3 , PD 6662:2017 and INCERT standards, specific requirements for professional security and intrusion systems.

Technical data sheet

146384.181.BL1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Connection to any point of the Fiber line
Superior LineSupply (45 W) can be installed after a hub, detector, keypad, siren, or another Superior LineSupply. The module provides additional power to Fibra devices installed between the Superior LineSupply (45 W) and the end of the line.
Wired connection range
  • between the module and the hub — up to 2,000 m; 6,500 ft;
  • between the module and the last Fiber device on the line — up to 2,000 m. 6,500 ft.
The maximum line length is relevant when using the U/UTP cat.5 twisted pair.
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Lines connection
Number of output lines 1
Superior LineSupply (45 W) can be connected after any Fiber device.
Number of input lines 1
Fiber devices with a total power consumption of up to 30 W can be connected to the output line. Superior LineSupply (75 W) Fibra version is also available, featuring greater output power and two output lines instead of one.
Cable length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Galvanic isolation Ensures that devices connected between the Superior LineSupply (45 W) and the end of the line do not consume power from the hub.
Power supply
Main 100–240 V~, 50/60 Hz
Backup 12 V⎓ battery with a capacity from 7 to 18 Ah
Not included. When the main power is available, the backup battery is charged from the mains.
Power output
  • of the output line — 30 W
  • to charge the backup battery — 15 W
Recommendations Power supply 100–240 V~.
The device is designed for indoor use only. Installation in Case (260×210×93) or Case (430×400×133) is recommended. The casing is sold separately.
Sabotage protection
Tamper alarm Superior LineSupply (45 W) has a connector to fasten the tamper board to the module. The tamper board is in Case that is sold separately.
Protection against short circuit on line
Protection against overvoltage on the Fibra signal lines
The module protects devices when voltage is applied to the signal terminals A, B
Protection against spoofing device authentication
Communication loss detection in 36 seconds
Between the hub and Superior LineSupply (45W). It can be changed in hub settings
Enclosure
Dimension 160 × 85 × 53 mm
6.3" × 3.35" × 2.09"
Weight 456 g
16.05 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Electric shock protection Class III
Complete set Superior LineSupply (45W) Fiber
Power supply cable
Battery connection cable
Terminal adapter — 2 pcs.
Quick start guide
Warranty 24 months
