140412.11.BL1 | WIRELESS SIREN WITH ADVANCED SABOTAGE PROTECTION AND ONE LED CONNECTOR

Ajax

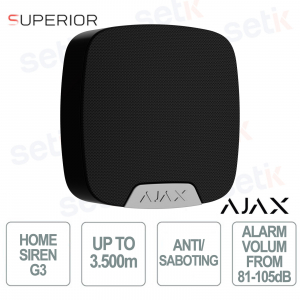

The Ajax Superior HomeSiren G3 Jeweller, 140412.11.BL1, is a professional wireless siren designed to provide highly effective audible and visual signaling, thanks to an adjustable alarm from 85 to 105 dB, a built-in LED, and notifications for entry/exit, chime, and post-alarm events. Superior Jeweler communication offers a range of up to 3,500 m, advanced encryption, and device authentication, while anti-sabotage protection ensures maximum reliability. With self-diagnosis, malfunction notifications, a long battery life of up to 2.5 years, and SmartBracket installation, it is an ideal solution for professional security systems.

Main specifications:

- Adjustable alarm volume 85–105 dB and duration 3–3 min

- Integrated LED for status, security and post-alarm

- Superior Jeweler radio communication up to 3,500 m

- Tamper, anti-jamming, frequency hopping and connection loss detection

- Self-diagnosis, low battery and malfunction notifications

- QR code installation, SmartBracket and battery life up to 2.5 years

Further details

✅ Jeweler Connection :
It leverages Superior Jeweler radio technology with a range of up to 3,500 m in open terrain , ensuring stable communications, advanced encryption, and device authentication to prevent spoofing. The system uses frequency hopping to prevent interference and includes constant monitoring of device status through regular updates sent to the hub.
✅ Audible and visual alarm :
It integrates an adjustable alarm from 85 to 105 dB , designed to attract immediate attention in the event of an intrusion. The front LED indicates system status, inputs/outputs, post-alarms and security events, offering a dual alert mode (audible + LED) that maximizes visibility even from a distance or in low-light conditions.
✅ Sabotage Resistance:
Equipped with a complete anti-tampering system, it includes an active tamper to detect unauthorized opening or removal attempts, anti-tear SmartBracket fixing screws, connection loss detection, anti-jamming protection and dynamic frequency hopping to counteract radio interference attempts, ensuring maximum system reliability.

Technical data sheet

140412.11.BL1
Communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3,500 m
Up to 11,4500 ft
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Key features Alarm type
acoustic and visual
Buzzer and LED.
Type of warning device
type W
Internal, self-powered
Alarm volume
from 81 to 105 dB at a distance of 1 m
Adjusted by a PRO or a user with admin rights in an Ajax app.
94 dB at a distance of 1 m
Default settings
Alarm duration
from 3 s to 3 min
Adjusted by a PRO or a user with admin rights in an Ajax app.
Siren sound frequency
3.4 ± 0.5 kHz
Ability to connect an additional LED
3 V⎓
An additional LED works in parallel with the built-in LED of the siren and fully mirrors its indication.
Event indication
  • Alarms.
  • Entry/exit delays
  • Security mode state
  • Security mode change
  • After-alarm indication

Chime
The siren emits a special sound to indicate the following events

  • opening detectors are triggered when the system is disarmed;
  • the doorbell button is pressed.
Recommendations The siren is designed for indoor use only. Recommended installation height is 2.5 m 8.2 ft or higher
Sabotage protection Tamper alarm
The system sends notifications about attempts to detach the siren from the surface or remove it from the mounting panel.
Holding screw
Secures the device on SmartBracket.
Protection against spoofing
Ensures device authentication when it communicates with a hub.
Jamming detection
The siren detects jamming and then sounds an alarm.
Communication loss detection
if there is no signal for 36 seconds or more
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power supply Battery
2 × CR123A 3V⎓ lithium battery
Pre-installed.
Type
type C
Calculated battery life
up to 4 years in standby mode
up to 2.5 years with one 90-second alarm per day
Operating voltage range
1.9−3.3 V⎓
Nominal operating voltage
3 V⎓
Quiescent current consumption at nominal voltage
TBC
Peak current consumption at nominal voltage
1.1A
When the siren sounds at the Very loud volume level.
Average current consumption at nominal voltage
50 mA
When the siren sounds at the default volume level. Regardless of the security mode.
Full battery capacity
3,200 mAh
Low battery voltage
2.1 V⎓
End-of-life battery voltage
1.9 V⎓
The device switches off
End-of-life battery capacity
366 mAh
Manufacturer
Panasonic
Enclosure Dimensions dimensions
75 × 76 × 27 mm
2.95″ × 2.99″ × 1.06″
Weight
92 g
3.25 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30, IK07
Color Black
Complete set Superior HomeSiren G3 Jeweller
SmartBracket mounting panel
2 × CR123A battery (pre-installed)
Connector for LED indicator
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
