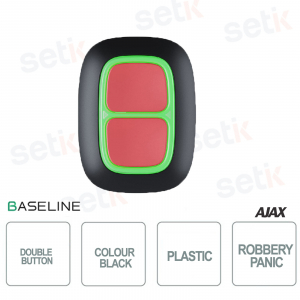

Ajax DoubleButton Jeweller Black: Wireless Anti-Robbery Device with Advanced Security and 5-Year Battery Life

Ajax DoubleButton Jeweller Black: Wireless Anti-Robbery Device with Advanced Security and 5-Year Battery Life

 
BEST PRICE

38102.79.BL1 # 38102 | Ajax DoubleButton Jeweller black is a wireless anti-robbery device designed to ensure maximum security thanks to zero accidental activation , achieved by double pressing the buttons and plastic divider. Jeweller technology ensures radio communications up to 1,300 meters with encryption and frequency hopping against interference, while the CR2032 battery with up to 5 years of battery life makes the product reliable and maintenance-free. With IP55 protection , compact dimensions and quick installation without disassembly, the device is ideal for immediate and safe control in any context. Ajax

Technical Data Sheet

Artikel-Nr.: 38102.79.BL1

Marke: Ajax Systems

EAN: 4823114014901

Disponibilità: 55

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38102.79.BL1 | WIRELESS EMERGENCY BUTTON

Ajax

The Ajax DoubleButton Jeweller, 38102.79.BL1, black is a wireless anti-robbery device designed to ensure extremely secure activation thanks to the double press of the buttons , avoiding false alarms even when carried in a pocket or bag. Jeweller technology ensures encrypted communications up to 1,300 meters , resisting interference through frequency hopping, while the power supply with a CR2032 battery with a 5-year battery life allows for reliable and maintenance-free use. With IP55 protection , compact dimensions and immediate installation via app without the need for disassembly, the device offers a professional and ready-to-use solution for personal and corporate security.

Main specifications:

- Double pressure anti-false alarms

- Jeweler technology with range up to 1,300 m

- CR2032 battery with up to 5 years of battery life

- IP55 protection

- Quick installation without disassembly

- CR2032 battery included with long battery life

Further details

✅ Jeweler Communication:
The device uses Jeweller technology to ensure secure and stable radio transmission up to 1,300 meters, with built-in encryption and frequency hopping that protects communication from interference and jamming attempts, thus ensuring constant operation even in critical scenarios.
✅ Main features :
Designed to prevent accidental activation, the DoubleButton Jeweller requires double button presses and features a physical divider for maximum reliability. It's also compact, lightweight, and can also be used as a remote control thanks to its dedicated app configuration.
✅ Anti-sabotage protection:
The IP55-rated enclosure provides resistance to dust, splashes, and varying operating conditions, while the tamper-proof design and encrypted radio communication prevent tampering or unauthorized use, making it ideal for professional environments.
✅ Power supply:
Powered by a pre-installed CR2032 battery, the device offers up to 5 years of battery life, eliminating the need for frequent maintenance and ensuring long-term operational continuity without technical intervention.

Technical data sheet

38102.79.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,300 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Key features
Number of buttons 2
Accidental press protection

both buttons pressing protective plastic divider
Alarm confirmation with one DoubleButton or several
To raise a confirmed alarm (hold-up event), you need to perform the selected action.
LED backlight indicating command delivery The LED brightness is adjusted in Ajax apps
Alarm scenario by pressing the DoubleButton
The control mode for automation devices is not supported
Recommendations Use Holder to fix DoubleButton Jeweler on surfaces.
Sabotage protection
Protection against spoofing device authentication
Power Supply
Battery 1 × CR2032
Pre-installed.
Calculated battery life up to 5 years
Button's operating voltage range 1.8−3.3 V⎓
Button's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 0.54 μA
Maximum device's current consumption at nominal voltage 34.8 mA
Full battery capacity 235 mAh
Low battery voltage 2.2 V⎓
Low battery recovery voltage 2.3 V⎓
End-of-life battery voltage 1.8 V⎓
Device is switched off.
End-of-life battery capacity 40 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 47 × 35 × 16 mm
Weight 17 g
Operating temperature range from −10 °C to +40 °C
Operating humidity up to 75%
Protection class IP55
Complete set DoubleButton Jeweler
CR2032 battery (pre-installed)
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
