133207.11.BL1 #133207 (formerly 67731.11.BL1) | Ajax Superior HomeSiren Jeweller black is a professional wireless siren designed for advanced security systems, featuring powerful acoustic signaling up to 105 dB and LED indicators for system status and alarms. Thanks to encrypted Jeweller radio technology with a range of up to 2000 meters , it guarantees reliable and secure communications. It offers comprehensive notifications for events, arming/disarming and door opening (chime) , improving system control. It integrates anti-sabotage protection with tampering and jamming detection , ensuring maximum security. The battery life reaches up to 5 years with pre-installed batteries , with quick installation via the Ajax app. Ideal for residential and professional environments, it guarantees effective and immediate protection. Ajax

Technical Data Sheet

Artikel-Nr.: 133207.11.BL1

Marke: Ajax Systems

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

133207.11.BL1 | WIRELESS SIREN

Ajax

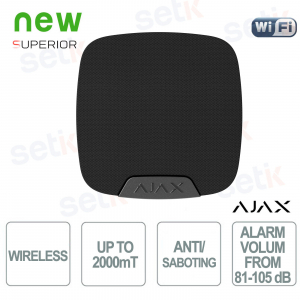

The Superior HomeSiren Jeweller, 133207.11.BL1 (formerly 67731.11.BL1), black Ajax is a professional wireless siren designed for advanced security systems, with sound power up to 105 dB and integrated LED signaling for immediate visual and audible notifications. Thanks to encrypted Jeweller radio technology with a range of up to 2000 meters , it ensures reliable and secure communications. It supports comprehensive notifications for alarms, arming/disarming and chime function , improving system control. It integrates anti-sabotage protection with jamming and tamper detection , ensuring high security standards. It offers up to 5 years of battery life with pre-installed batteries and easy installation via the Ajax app. Ideal for residential and professional environments.

Main specifications:

- Sound power up to 105 dB for effective alarms

- Integrated LED for visual indication and system status

- Encrypted Jeweler communication up to 2000 meters

- Full notifications for alarms and door chime function

- Anti-sabotage protection with jamming detection

- Up to 5 years of battery life with pre-installed batteries

- Quick installation and management via Ajax app

Further details

✅ Jeweler Communication:
It uses the encrypted two-way Jeweler radio protocol, which ensures secure and reliable transmissions up to 2000 meters , with continuous status polling and interference protection for stable communication.
✅ Main features :
Siren designed for powerful acoustic signaling up to 105 dB and LED visual notifications , with event management such as alarms, arming/disarming and chime function for complete system control.
✅ Anti-sabotage protection :
It integrates anti-tampering , jamming detection and device authentication , ensuring protection against sabotage attempts and unauthorized access.
✅ Power supply:
Powered by 2 pre-installed CR123A batteries with up to 5 years of battery life, it ensures continuous operation and low maintenance for reliable installations over time.

Technical data sheet

133207.11.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range up to 2,000 m
up to 6,600 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Key features
Alarm type acoustic and LED
Buzzer and LED frame
Type of warning device type W
External, self-powered.
Alarm volume from 85 to 113 dB at a distance of 1 m
from 81 to 105 dB at a distance of 3.3 ft
Adjusted by PRO or user with admin rights in the Ajax app
94 dB at a distance of 1 m
94 dB at a distance of 3.3 ft
Default settings.
Alarm duration from 3 s to 3 min
Adjusted by PRO or user with admin rights in the Ajax app
Siren sound frequency 3.4 ± 0.5 kHz
Ability to connect an additional LED 3 V⎓
Events indication
  • Alarms
  • Delays when entering/leaving
  • Security mode
  • Security mode changing
  • After-alarm indication
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed
Recommendations The siren is designed for indoor and outdoor use. Recommended installation height is 2.5 m and higher.
Customized branded faceplate
Brandplate Security service providers can print their logo and contact information on the siren's front panel.
Recommendations Brandplate is sold separately from street sirens. To place an order, reach out to your regional Ajax partner. You can also compose a faceplate design in the Brandplate constructor.
Sabotage protection
Tampering alarm Notifications on attempts to open the siren's enclosure.
Accelerometer alarm Notifications on attempts to move or shake the siren, or detach it from the surface
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 4 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 5 years
Siren's operating voltage range 1.9−3.3 V⎓
Siren's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 42 μA
Peak siren's current consumption at nominal voltage 1.1 A
When the siren sounds at the Very Loud volume level
Average siren's current consumption at nominal voltage 50 mA
When the siren sounds at the default volume level. Regardless of the arming mode.
Full battery capacity 3,200 mAh
Low battery voltage 2.1 V⎓
End-of-life battery voltage 1.9 V⎓
Device is switched off
End-of-life battery capacity 366 mAh
Manufacturer Panasonic
Enclosure
Color Black
Dimension 75 × 76 × 27 mm
2.95″ × 2.99″ × 1.06″
Weight 92 g
3.25 oz
Operating temperature range from −10°C to +40°C
from 14°F to 104°F
Operating humidity up to 75%
Protection class IP50, IK06
IP30 tested by CNPP according to NFa2P.
Complete set Superior HomeSiren Jeweler
SmartBracket mounting panel with holding screw
2 CR123A batteries (pre-installed)
Connector for LED indicator
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
