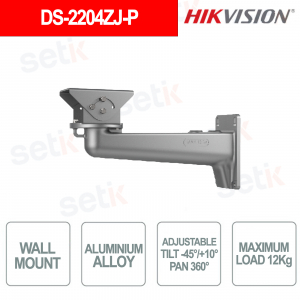

DS-2204ZJ-P 360° Adjustable Aluminum Wall Bracket Load 12 kg - Hikvision

DS-2204ZJ-P 360° Adjustable Aluminum Wall Bracket Load 12 kg - Hikvision

 
-35% Neu

DS-2204ZJ-P - is a professional wall bracket for video surveillance systems, made of aluminum alloy with a high-strength die-cast structure. It is suitable for indoor and outdoor installations and integrates cable outlets to hide and protect wiring. It offers tilt adjustment from -45° to +10° and pan from 0° to 360° , with dimensions of 413.5 × 228.7 × 97.9 mm . It supports a maximum load of 12 kg , ensuring solidity and installation flexibility. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2204ZJ-P

Marke: Hikvision

EAN: 6931847168025

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-2204ZJ-P – WALL BRACKET

Hikvision

The Hikvision DS-2204ZJ-P is a professional wall bracket for video surveillance systems, made of aluminum alloy with a high-strength die-cast structure. It is suitable for indoor and outdoor installations and integrates practical cable outlets to keep wiring hidden and tidy. It offers tilt adjustment from -45° to +10° and pan from 0° to 360° , with dimensions of 413.5 × 228.7 × 97.9 mm . It supports a maximum load of up to 12 kg , ensuring robustness and installation flexibility.

Main features:

  • Material: Aluminum alloy
  • Installation: indoor/outdoor
  • Adjustment: tilt -45°/+10°, pan 360°
  • Cable gland: integrated
  • Maximum load: 12 kg

Further details

✅ Material :
 The Hikvision DS-2204ZJ-P is made of aluminum alloy with a high-strength die-cast structure , designed to ensure robustness and reliability in professional video surveillance installations.
✅ Installation :
Designed for wall mounting , the bracket can be used both indoors and outdoors and features dedicated cable outlets that allow cables to be hidden inside the support; installation must be carried out on a flat surface .
✅ Regulation :
 The mount offers high orientation flexibility thanks to the Tilt adjustment from -45° to +10° and Pan from 0° to 360° , allowing the camera to be positioned according to the needs of the area to be monitored.
✅ Maximum load:
The bracket supports a maximum load of 12 kg , while the wall chosen for mounting must be able to support at least 3 times the combined weight of the camera and the bracket , ensuring installation in accordance with the manufacturer's recommendations.

Technical data sheet

DS-2204ZJ-P
Parameters
Appearance Platinum gray
Material Aluminum alloy
Angle Adjustment Tilt: -45° to 10°; Pan: 0° to 360°; Rotation: 0°
Dimensions 413.5mm × 228.7mm × 97.9mm (16.28" × 9.00" × 3.85")
Weight Approx. 2.12 kg (4.67 lb.)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
