Hikvision DS-K1T670MWX-QR: Advanced facial recognition terminal for secure and fast access control

Hikvision DS-K1T670MWX-QR: Advanced facial recognition terminal for secure and fast access control

 
-35% Neu

DS-K1T670MWX-QR - The facial recognition terminal is an advanced access control solution, ideal for businesses, schools, factories, and stations thanks to its 7" touch display and dual 2MP camera that guarantees over 99% accuracy. It supports up to 6,000 faces, 50,000 cards, and 150,000 events, with ultra-fast recognition in less than 0.2 seconds and a range of up to 3 meters. Equipped with smart features such as mask detection, anti-spoofing, two-way audio, QR code reading, and TCP/IP, IPv6, and Wi-Fi connectivity, it offers maximum security and flexibility. With an IP65 rating and operating range of -30°C to +60°C, it ensures reliability even in harsh environments, ensuring intuitive control and management via the web interface and Hik-Connect app. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-K1T670MWX-QR

Marke: Hikvision

EAN: 6942160450124

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

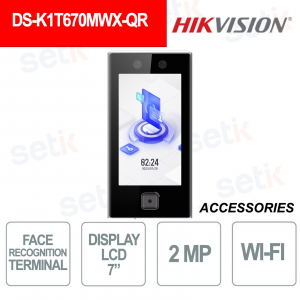

DS-K1T670MWX-QR – FRONT ACCESS TERMINAL WITH 7" TOUCH SCREEN, 2MP RESOLUTION

Hikvision

The Hikvision DS-K1T670MWX-QR facial recognition terminal is designed for access control in companies, schools, factories and high-traffic environments, offering maximum security and speed with face recognition in less than 0.2 seconds and accuracy over 99%. Equipped with a 7" touch screen, dual wide-angle cameras and advanced functions such as mask detection, QR code, anti-spoofing and two-way audio, it supports up to 6000 faces, 50,000 cards and 150,000 events, TCP/IP, IPv6 and Wi-Fi connectivity .

Main features:

- 7" touch display with dual 2MP camera

- Capacity: 6000 faces, 50,000 cards, 150,000 events

- Fast recognition: <0.2s with="" accuracy="" 99="" span="">

- Mask support, QR code, anti-spoofing

- Connectivity: TCP/IP, IPv6, Wi-Fi

- IP65 certification for indoor/outdoor use

Further details

✅ Display :
 7-inch LCD touch screen with 600 × 1024 resolution, designed to ensure an intuitive interface, sharp images and ease of use in any context .
✅ Interface :
 Equipped with multiple alarm inputs and outputs, USB Type-A port, RS-485 network, Wiegand, lock output, exit button and door contact input, ensuring maximum integration with security and automation systems.
✅ Video :
 Dual 2MP cameras with wide-angle viewing angle (HFOV 88°, VFOV 44°), WDR support and PAL/NTSC compatibility, ensuring reliable recognition even in difficult lighting conditions.
✅ Two-way audio :
 It supports full-duplex communication with clear audio, allowing real-time interaction between user and control center.
✅ Network:
 Advanced connectivity with support for 2.4 GHz Wi-Fi (802.11 b/g/n) and 10/100/1000 Mbps wired networking, as well as TCP/IP (IPv4 and IPv6), ISAPI and ISUP 5.0 protocols, for maximum compatibility and flexibility.
✅  Authentication :
 Ultra-fast facial recognition (<0.2s) with ≥99% accuracy, M1 card support (reading <1s), QR code and mask detection. Capacity of up to 6,000 faces , 50,000 cards and 150,000 events , with anti-spoofing functions to ensure advanced protection.

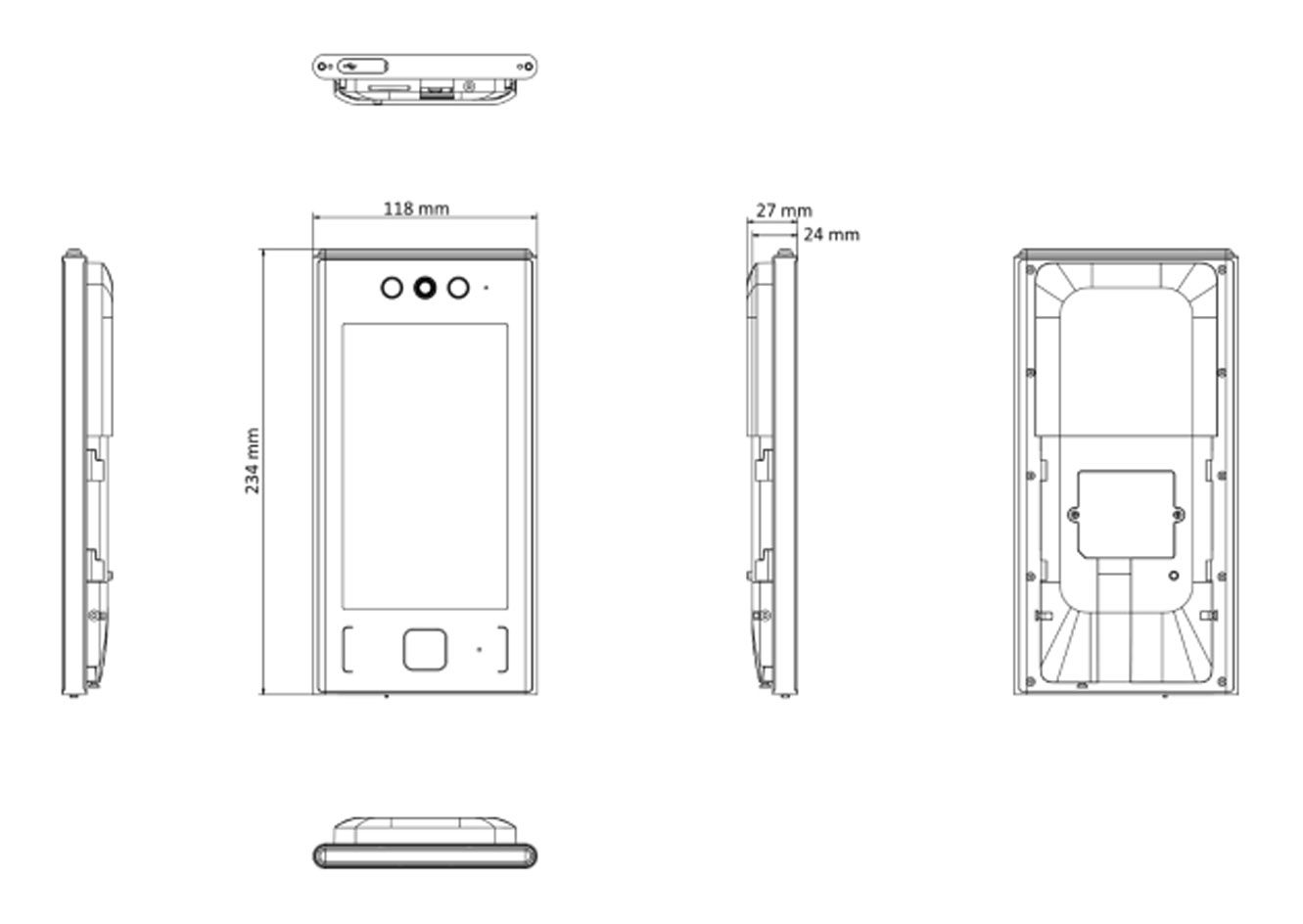

DS-K1T670MWX-QR dimensions

Technical data sheet

DS-K1T670MWX-QR

System
Operation system Linux

Display

Resolution

600 × 1024

Screen size

7-inch

Type

Touch screen

Video

FOV

HFOV= 88°; VFOV= 44°

Pixel

2 MP

Lens

Dual-lens

WDR

Support

Standard video

PAL (Default) and NTSC

Network

Wired network

Support 10/100/1000 Mbps self-adaptive

Wi-Fi

Support, 2.4G, 802.11b/g/n

Interface

Alarm input

2

Alarm output

1

USB

1 Type-A (For Module)

Network interface

1

RS-485

1

Wiegand

1

Lock control

1

Exit button

1

Door contact input

1

TAMPER

1

Capacity
Card capacity 6,000
Face capacity 50,000
Fingerprint capacity 6,000
Event capacity 150,000

Authentication
Face recognition accuracy rate ＞99%

Card type

M1 card
Face recognition distance 0 to 5 cm

Card reading duration

＜ 1 s
Face recognition duration ＜ 0.2 s per person
Face recognition distance 0.3 to 3 m

General

Power supply

12 VDC/2 A

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

10 to 90% (no condensation)

Power consumption

≤ 10 W
Protective level IP65
Dimensions 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
Installation Wall Mounting
Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Weight Gross weight: 1.06 kg (2.34 lb)
Net weight: 0.57 kg (1.26 lb)
Function
Face anti-spoofing Support
Hik-Partner Pro Support
Face recognition Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
