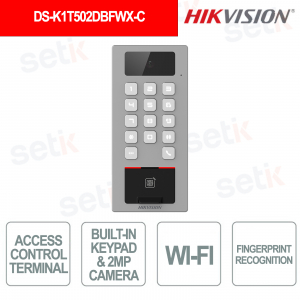

DS-K1T502DBFWX-C IP65 Access Control Terminal with Fingerprint, PIN, and IP Video Intercom - Hikvision

DS-K1T502DBFWX-C IP65 Access Control Terminal with Fingerprint, PIN, and IP Video Intercom - Hikvision

 
-35%

DS-K1T502DBFWX-C - The access control terminal integrates access control and IP video intercom in a single rugged device with IP65 and IK09 protection , ideal for professional indoor and outdoor installations. It supports multi-factor authentication with card, fingerprint, PIN and Bluetooth , management from the Hik-Connect app, SIP, Wiegand and RS-485 communication, 2 MP H.264/H.265 camera and two-way audio. With capacity for up to 10,000 fingerprints, 100,000 cards and 300,000 events , 2.4 GHz Wi-Fi, SD memory up to 256 GB and operation from -40 °C to 70 °C , it is an advanced solution for security, corporate access and building automation. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-K1T502DBFWX-C

Marke: Hikvision

EAN: 6931847103910

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-K1T502DBFWX-C – ACCESS CONTROL TERMINAL

Hikvision

The Hikvision DS-K1T502DBFWX-C access control terminal is a professional solution for access control and IP video intercom in a single device, ideal for companies, offices, condominiums and outdoor environments. Thanks to the zinc alloy structure, IP65 and IK09 protection and operation from -40 °C to 70 °C , it guarantees reliability even in harsh conditions. It supports fingerprint, card, PIN and Bluetooth , remote management via Hik-Connect , 2 MP H.264/H.265 camera, two-way audio and communication via SIP, Wiegand, RS-485, Wi-Fi and RJ-45 . With capacity for up to 10,000 fingerprints, 100,000 cards and 300,000 events , it is designed for advanced security systems and intelligent access.

Main features:

- Integrated functions: access control and IP video intercom

- Authentication: Fingerprint, card, PIN and Bluetooth

- Protection: IP65 against dust/water and IK09 vandalism

- Connectivity: Wi-Fi 2.4 GHz, RJ-45, SIP, Wiegand and RS-485

- Video and audio: 2 MP video camera, H.264/H.265 compression and two-way audio

- Capacity: up to 10,000 fingerprints, 100,000 cards and 300,000 events

- Remote management: compatible with Hik-Connect app

Further details

✅ System:
Hikvision DS-K1T502DBFWX-C access control terminal uses Linux operating system, 4GB ROM memory, 256MB RAM and 960MHz CPU , providing a stable and reliable platform for professional access management, IP video intercom and security in corporate, condominium and commercial environments.
✅ Video:
 The video section integrates 1 lens with 2 MP resolution, H.264/H.265 compression, PAL/NTSC standard, F2.0 aperture and wide field of view HFOV 110°, VFOV 81°, DFOV 122° , ensuring clear images for user identification, video calls and access control with IP video intercom.
✅ Network :
Network connectivity supports IPv4 and IPv6 protocols with SADP, SIP 2.0, SIP, RTSP, ISAPI and ISUP 5.0 , wired network, Wi-Fi 2.4 GHz 802.11b/g/n , Bluetooth BT 2.1/4.2 , AP mode and configurable priority between wired and wireless network, making the device flexible for modern installations and IP integrations.
✅ Interface :
Interfaces include self-adaptive 10/100 Mbps RJ-45 port, lock control, exit button, door contact input, alarm input and output, tamper protection, Hikvision half duplex RS-485 port, Hik 26/34 bit Wiegand connection and SD card slot, so as to integrate external readers, access controllers, elevators and security systems.
✅ Capacity :
The device offers high capacity for professional installations, managing up to 10,000 fingerprints , 100,000 cards and 300,000 events , allowing use in contexts with many users, advanced access history and complete traceability of entrances.
✅ Authentication :
Authentication supports capacitive fingerprint recognition, M1 and DESfire cards, card reading from 0 to 3 cm with a duration of less than 1 second , as well as multiple methods such as PIN, card, fingerprint and Bluetooth , for secure, fast and customizable access control.
✅ Function :
Key features include Hik-Connect , IP video intercom , live view , two-way audio , multi-factor authentication , call to management center, indoor station or app, as well as IP65 and IK09 protection, 12-24 VDC power supply, consumption ≤ 12 W and operation from -40 °C to 70 °C , making it suitable for outdoor environments and high-security applications.

Technical data sheet

DS-K1T502DBFWX-C
System
Operating system Linux
Video
Lens 1
Video compression standard H.264 and H.265
Resolution 2 MP
FOV HFOV = 110°; VFOV = 81°; DFOV = 122°
Standard video PAL (Default) and NTSC
Network
Wired network 10M/100M self-adaptive
Wi-Fi Support
Interface
Network interface 1
Lock control 1
Exit button 1
Door contact input 1
Alarm input 1
Alarm output 1
TAMPER 1
RS-485 1
Wiegand 1 (output)
SD Card Slot 1
Capacity
Fingerprint capacity 10,000
Card capacity 100,000
Event capacity 300,000
General
Power supply 1 A (12 VDC to 24 VDC)
Power consumption ≤12 W
Working temperature -40 °C to +70 °C (-40 °F to +158 °F)
Protective level IK09, IP65
Language Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
Function
Two-way audio Support
Video intercom Support
Hik-Connect Support
