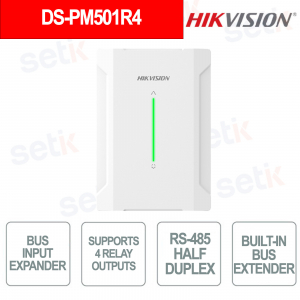

Hikvision 4-Output SPDT Relay Expansion Module with RS-485 Bus Extender for Intrusion Detection Systems

Hikvision 4-Output SPDT Relay Expansion Module with RS-485 Bus Extender for Intrusion Detection Systems

 
-35% nuevo

DS-PM501R4 - The module is a bus relay expander designed for professional intrusion detection systems, ideal for controlling external devices thanks to 4 high-capacity SPDT relay outputs (16A up to 250VAC) that guarantee maximum operational reliability. It integrates a half-duplex RS-485 bus with bus extender function , allowing communication to be extended over long distances and ensuring greater system stability. Powered directly by the bus and designed for indoor installation, it offers a compact, safe solution that can be easily integrated into advanced systems. Hikvision

Technical Data Sheet

referencia : DS-PM501R4

brand : Hikvision

EAN: 6942160496528

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-PM501R4 – EXPANSION MODULE

Hikvision

The Hikvision DS-PM501R4 expansion module is designed for professional intrusion detection systems, offering 4 high-capacity SPDT relay outputs up to 16A (24VDC/250VAC) for the reliable control of external devices and automations. Thanks to the half-duplex RS-485 bus with integrated bus extender function , it allows you to extend communication and improve system stability even over long distances. Powered directly by the bus and designed for indoor installation, it represents a compact, safe and high-performance solution for advanced integrations.

Main features:

- 4 high capacity SPDT relay outputs up to 16A for device control

- Half-duplex RS-485 bus with extender function for greater coverage

- Direct bus power supply for simplified installation

- Compatibility with Hikvision professional intrusion systems

- Wall installation for indoor environments

Further details

✅ Output:
The module integrates 4 high-capacity SPDT relay outputs up to 16A (24VDC/250VAC) , designed for the reliable control of external devices and automations , ensuring high performance even in high-load professional applications.
✅ Bus interconnection :
Communication via half-duplex RS-485 bus with built-in bus extender function , which allows to extend the connection distance and improve the system stability , using 4-wire wiring for safe and high-performance installations.

Technical data sheet

DS-PM501R4
Outputs
Max. outputs 4
On-board PGM outputs 4

Bus interconnection
Bus extender Yes
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 200 mA @12VDC
Max. current 300 mA @12VDC
Relay output
Relay output SPDT relay, 16A 24VDC, 16A 250VAC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 110 × 155 × 31 mm
Weight 272 g
Tamper-proof Front and Rear
Installation method Wall mount
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
