IPC-HDW3549H-AS-PV-S5 WizSense 3 series camera is an advanced video surveillance solution equipped with 2.8mm lens, ideal for large areas. It offers a 5MP resolution and includes TiOC (Three-in-One Camera) technology with active light and integrated siren to discourage intrusions. Thanks to the Full-color sensor, it provides clear images even at night, while artificial intelligence allows precise detection of people and vehicles. The integrated microphone and two-way audio improve interaction, and the PoE connection simplifies installation. Perfect for residential and professional environments. Dahua
referencia : IPC-HDW3549H-AS-PV-S5
brand : Dahua
EAN: 6923172526069
Disponibilità: 24

DAHUA: DEBAJO DEL COSTE×
DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

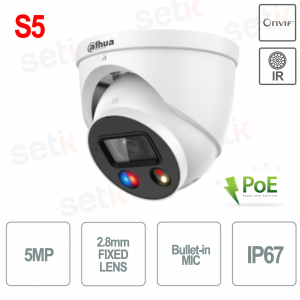

IPC-HDW3549H-AS-PV-S5 | OUTDOOR ONVIF IP CAMERA 2.8mm FIXED LENS SMART DUAL LIGHT - S5 VERSION

The Dahua IPC-HDW3549H-AS-PV-S5 is an outdoor IP camera from the WizSense 3 series, designed to offer advanced security performance. Equipped with a 5MP sensor and 2.8mm fixed lens, this dome camera guarantees clear images even in low-light conditions thanks to Full-Color technology. It supports AI functions such as intelligent classification of people and vehicles, as well as having a microphone, speaker and active light for the TiOC (Three-in-One Camera) function. Perfect for residential and commercial applications that require high reliability.
Main specifications:
- 2.8mm optics: wide vision for complete surveillance of the environment
- 5MP Full-Color Resolution: Detailed images day and night
- TiOC technology: combination of active light, siren and AI for proactive prevention
- AI WizSense: Intelligent detection with classification of people and vehicles
- Built-in microphone and speaker: two-way communication and active alarms
- IP67 protection: total resistance to dust and water for outdoor installations
Further details
✅ Smart Dual Light: Automatically switches between IR and visible light when detecting motion.

Technical data sheet
Model | IPC-HDW3549H-AS-PV-S5 |
Room | |
Image Sensor | 1/2.7" CMOS |
Max. Resolution | 2960 (H) × 1668 (V) |
ROM | 256 MB |
RAM | 1 GB |
Scanning System | Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
Y/N Ratio | ﹥56dB |
Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 1 (IR LED) 1 (warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed focal |
Mount Type | M12 |
Focal Length | 2.8mm |
Field of View | Horizontal: H: 97°; V: 70°; D: 128° |
Iris Type | Fixed |
Close Focus Distance | 1.5 m (4.92 ft) |
Professional, Intelligent | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
SMD | SMD4.0 |
SmartSearch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
TO THE SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
AI Coding | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) |
Video Frame Rate |
Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) |
Stream Capability |
3 streams |
Resolution | 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048×1536); 1080p (1920×1080); 1.3M (1280×960); 720P(1280×720); D1 (704×576/704×480); VGA(640 × 480); CIF (352×288/352×240) |
Bitrate Control |
CBR/VBR/ABR |
Video Bitrate | H.264: 3 kbps–16384 kbps; H.265: 3kbps–16384kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120dB |
Scene Slef-adaptation | Yes |
White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Car |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Smart IR | Yes |
Defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
LDC | Yes |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Built-in speaker | Yes, built-in speaker |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Audio | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
SDK and API | Yes |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability | ONVIF (Profile S;Profile G;Profile T); CGI |
User/Host | 20 (Total bandwidth: 64M) |
Storage |
FTP; SFTP; Micro SD card (Support max. 256G); NAS |
Browser | IE: IE8/9/11 Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Smartphone | iOS; Android |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Certifications | |
Certifications |
CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
AlarmOutput | 1 channel out: wet contact, 300 mA 12 VDC |
Power | |
Power Supply | 12VDC/PoE (802.3af) |
Power Consumption |
Basic: 3.7W (12VDC); 4.8W (PoE) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage | ≤95% |
Ingress Protection | IP67 |
Structure | |
Casing | Metal |
Dimensions | Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
Net Weight | 0.75 kg (1.65 lb) |
Gross Weight | 0.92 kg (2.03 lb) |
