IPC-HDW3549H-AS-PV-S5 Telecamera della serie WizSense 3 è una soluzione di videosorveglianza avanzata dotata di ottica da 2.8mm, ideale per ampie aree. Offre una risoluzione da 5MP e include la tecnologia TiOC (Three-in-One Camera) con luce attiva e sirena integrata per scoraggiare intrusioni. Grazie al sensore Full-color, fornisce immagini nitide anche di notte, mentre l’intelligenza artificiale consente una rilevazione precisa di persone e veicoli. Il microfono integrato e l’audio bidirezionale migliorano l’interazione, e la connessione PoE ne semplifica l’installazione. Perfetta per ambienti residenziali e professionali. Dahua
Riferimento: IPC-HDW3549H-AS-PV-S5
Marca: Dahua
EAN: 6923172526069
Disponibilità: 13
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

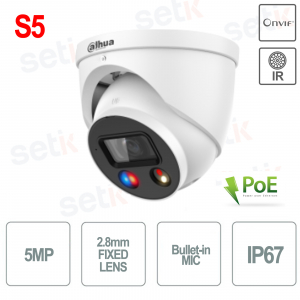

IPC-HDW3549H-AS-PV-S5 | TELECAMERA IP ONVIF DA ESTERNO OTTICA FISSA 2.8mm SMART DUAL LIGHT - VERSIONE S5

La Dahua IPC-HDW3549H-AS-PV-S5 è una telecamera IP da esterno della serie WizSense 3, progettata per offrire prestazioni di sicurezza avanzate. Dotata di un sensore da 5MP e ottica fissa da 2.8mm, questa dome camera garantisce immagini nitide anche in condizioni di scarsa illuminazione grazie alla tecnologia Full-Color. Supporta funzionalità AI come la classificazione intelligente di persone e veicoli, oltre a disporre di microfono, speaker e luce attiva per la funzione TiOC (Three-in-One Camera). Perfetta per applicazioni residenziali e commerciali che richiedono alta affidabilità.
Specifiche principali:
- Ottica 2.8mm: ampia visione per una sorveglianza completa dell’ambiente
- Risoluzione 5MP Full-Color: immagini dettagliate giorno e notte
- Tecnologia TiOC: combinazione di luce attiva, sirena e AI per prevenzione proattiva
- AI WizSense: rilevamento intelligente con classificazione di persone e veicoli
- Microfono e speaker integrati: comunicazione bidirezionale e allarmi attivi
- Protezione IP67: resistenza totale a polvere e acqua per installazioni esterne
Ulteriori dettagli
✅ Smart Dual Light: passa automaticamente da IR a luce visibile quando rileva un movimento.

Scheda tecnica
| Model | IPC-HDW3549H-AS-PV-S5 |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2960 (H) × 1668 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed |
 Auto/Manual 1/3 s–1/100,000 s  |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)  |
| S/N Ratio | ﹥56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (warm light)  |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR LED) 1 (warm light)  |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°  |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: H: 97°; V: 70°; D: 128° |
| Iris Type | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Professional, Intelligent | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.  |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%)  |
| Video Frame Rate |
 Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)   |
| Stream Capability |
 3 streams  |
| Resolution | 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240) |
| Bit Rate Control |
 CBR/VBR/ABR  |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps  |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Slef-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Audio | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol |
 IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P  |
| Interoperability | ONVIF (Profile S;Profile G;Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage |
 FTP; SFTP; Micro SD card (Support max. 256 G); NAS  |
| Browser | IE: IE8/9/11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphone | iOS; Android |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Certifications | |
| Certifications |
 CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14  |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption |
 Basic: 3.7 W (12 VDC); 4.8 W (PoE)  |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage | ≤95% |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
| Net Weight | 0.75 kg (1.65 lb) |
| Gross Weight | 0.92 kg (2.03 lb) |
