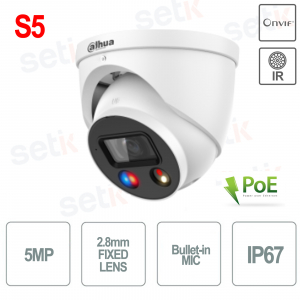

Dahua 5MP TiOC Full-Color Camera with 2.8mm Lens and Integrated Audio

Dahua 5MP TiOC Full-Color Camera with 2.8mm Lens and Integrated Audio
BEST PRICE -58%

IPC-HDW3549H-AS-PV-S5 WizSense 3 series camera is an advanced video surveillance solution equipped with 2.8mm lens, ideal for large areas. It offers a 5MP resolution and includes TiOC (Three-in-One Camera) technology with active light and integrated siren to discourage intrusions. Thanks to the Full-color sensor, it provides clear images even at night, while artificial intelligence allows precise detection of people and vehicles. The integrated microphone and two-way audio improve interaction, and the PoE connection simplifies installation. Perfect for residential and professional environments. Dahua

Technical Data Sheet

Reference: IPC-HDW3549H-AS-PV-S5

Brand: Dahua

EAN: 6923172526069

Disponibilità: 24

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDW3549H-AS-PV-S5 | OUTDOOR ONVIF IP CAMERA 2.8mm FIXED LENS SMART DUAL LIGHT - S5 VERSION

Dahua

The Dahua IPC-HDW3549H-AS-PV-S5 is an outdoor IP camera from the WizSense 3 series, designed to offer advanced security performance. Equipped with a 5MP sensor and 2.8mm fixed lens, this dome camera guarantees clear images even in low-light conditions thanks to Full-Color technology. It supports AI functions such as intelligent classification of people and vehicles, as well as having a microphone, speaker and active light for the TiOC (Three-in-One Camera) function. Perfect for residential and commercial applications that require high reliability.

Main specifications:

- 2.8mm optics: wide vision for complete surveillance of the environment

- 5MP Full-Color Resolution: Detailed images day and night

- TiOC technology: combination of active light, siren and AI for proactive prevention

- AI WizSense: Intelligent detection with classification of people and vehicles

- Built-in microphone and speaker: two-way communication and active alarms

- IP67 protection: total resistance to dust and water for outdoor installations

Further details

2.8mm optics: wide field of view for complete control of monitored areas.
5MP Resolution: High definition images with precise details.
Active Deterrence: Combination of active light and siren to deter intruders.

Smart Dual Light: Automatically switches between IR and visible light when detecting motion.
Artificial Intelligence Functions: Accurate classification of people and vehicles.
Network Connectivity: simple management via network for smart and integrated installations.

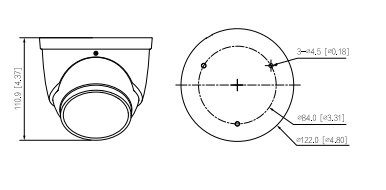

IPC-HDW3849H-AS-PV-S5 Camera Dimension Diagram

Technical data sheet

Model IPC-HDW3549H-AS-PV-S5
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
Y/N Ratio ﹥56dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8mm
Field of View Horizontal: H: 97°; V: 70°; D: 128°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Professional, Intelligent
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD4.0
SmartSearch Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and
motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)
Video Frame Rate

Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048×1536); 1080p (1920×1080); 1.3M (1280×960); 720P(1280×720); D1 (704×576/704×480); VGA(640 × 480); CIF (352×288/352×240)
Bitrate Control

CBR/VBR/ABR

Video Bitrate H.264: 3 kbps–16384 kbps;
H.265: 3kbps–16384kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Slef-adaptation Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in speaker Yes, built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Audio
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability ONVIF (Profile S;Profile G;Profile T); CGI
User/Host 20 (Total bandwidth: 64M)
Storage

FTP; SFTP; Micro SD card (Support max. 256G); NAS

Browser IE: IE8/9/11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Smartphone iOS; Android
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
AlarmOutput 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12VDC/PoE (802.3af)
Power Consumption

Basic: 3.7W (12VDC); 4.8W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8W (PoE)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage ≤95%
Ingress Protection IP67
Structure
Casing Metal
Dimensions Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")
Net Weight 0.75 kg (1.65 lb)
Gross Weight 0.92 kg (2.03 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
