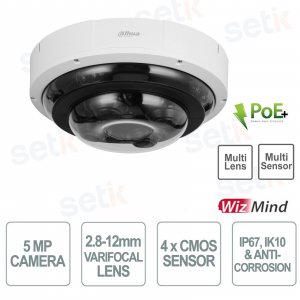

Dahua 4×5MP Anti-Corrosion AI Panoramic Camera with 360° View and Intelligent Detection

Dahua 4×5MP Anti-Corrosion AI Panoramic Camera with 360° View and Intelligent Detection
-57% nuevo

IPC-PDBW82041-B360-ATC-S2 - The panoramic camera offers 360° surveillance with four 5 MP CMOS sensors and a 2.8–12 mm vari-focal motorized lens, ensuring a horizontal field of view from 100° to 42°. Equipped with advanced AI functions such as facial detection, people counting and perimeter protection, it ensures high-definition images even in low light conditions. The IP67 and IK10 protection structure, combined with the anti-corrosion treatment, makes it ideal for outdoor environments exposed to atmospheric agents. Thanks to FlexStream technology, it allows you to view multiple directions in a single video stream, optimizing bandwidth and storage. Ideal for warehouses, stations and campuses, it guarantees reliable security and professional performance. Dahua

Technical Data Sheet

referencia : IPC-PDBW82041-B360-ATC-S2

brand : Dahua

EAN: 6923172547460

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-PDBW82041-B360-ATC-S2 | PANORAMIC DOME MULTI-LENS CAMERA - 4X5MP MULTI-SENSOR - SMART IR 30M - IVS - ANTI-CORROSION


Dahua

The Dahua IPC-PDBW82041-B360-ATC-S2 panoramic camera offers 360° surveillance with four 5 MP CMOS sensors and a 2.8–12 mm varifocal motorized lens, ensuring clear images even in low-light conditions. Equipped with advanced AI for facial detection, people counting, and perimeter protection, it features IP67, IK10 protection, and anti-corrosion treatment to withstand the elements, making it ideal for outdoor environments such as warehouses, stations, and campuses.

Main specifications:

- 360° panoramic view with 4 x 5 MP sensors

- Motorized optics 2.8–12 mm (field of view H: 100°–42°)

- AI functions: face detection, people counting, perimeter protection

- IR illuminator up to 30m

- IP67, IK10 and anti-corrosion resistance

Further details

Resolution:
Equipped with four 1/2.7” 5MP CMOS sensors, the camera offers a maximum resolution of 2592 × 1944 pixels per channel, ensuring sharp and detailed images even in low light conditions.
Optics :
2.8–12mm vari-focal motorized lens with F1.7 aperture, which ensures a wide horizontal field of view from 100° to 42°, vertical from 74° to 32° and diagonal from 133° to 53°, allowing flexible coverage of the areas to be monitored.
Perimeter Protection :
Using deep learning algorithms, the perimeter protection function accurately distinguishes between people and vehicles, reducing false alarms in sensitive areas and supporting detection of tripwires, intrusions, fast movement, abandoned or missing objects, loitering, crowds, and unauthorized parking.

People Counting:
Advanced technology for counting people in transit and within specific areas, with the ability to generate daily, monthly, and annual reports; ideal for monitoring flows in commercial and public spaces.
Face Detection:
Facial detection system with tracking, capture and shot optimization, including attribute analysis (gender, age, glasses, expressions, mask, beard) and recognition of 8 types of expressions, ensuring the best image for identification.
Network camera:
Multi-sensor IP camera with a single address for managing multiple video streams, compatible with ONVIF protocols and NVR recording platforms, optimized for secure transmissions thanks to encryption and anti-intrusion protection.
Anti-corrosion:
IP67 and IK10 rated construction, with optional anti-corrosion coating making it suitable for harsh, long-term outdoor environments such as ports, industrial zones and coastal areas.
WizMind:
Part of the Dahua WizSense range, designed to provide precise and reliable AI solutions thanks to deep learning algorithms, optimizing security in professional scenarios with intelligent video analytics functions.
Dahua Wizmind 4x5MP Panoramic Dome Multi-Lens Camera

Technical data sheet

ROOM
Model IPC-PDBW82041-B360-ATC-S2
Image Sensor 1/2.7”5Megapixel progressive CMOS
Effective Pixels 2592 (H) × 1944 (V)
ROM

8 GB

RAM 4 GB
Scanning System Progressive
Electronic Shutter Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination

0.005 Lux@F1.7(Color,30IRE)

0.0005 Lux@F1.7(B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft) (IR LED)
Illuminator On/Off Control Auto / Manual
Illuminator Number 8 (IR LED)
Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–80°

Rotation: 0°–355°

LENS
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.8 mm–12 mm
Max Openings

F1.7

Field of View

H: 100°–42°; V: 74°–32°; D: 133°–53°

Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
SMART EVENT
IVS Abandoned object; missing object
PROFESSIONAL, INTELLIGENT
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
VIDEO
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate

Single Stream:
Main stream: 2592 × 1944@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480
(1–30fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Flex Stream:
Main stream: 1600 × 1200@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 3296 × 2472@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 3 streams
Resolution

Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240);
Flex Stream: 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280×960); D1 (704 × 576/704 × 480); VGA (640 × 480; CIF (352 × 288/352 × 240)

Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–17152 kbps
H.265: 12 kbps–10240 kbps
Day/Night Auto (ICR)/Color/B/W
BLC

Yes

HLC

Yes

WDR DWDR
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Defog Yes
Image Rotation Yes
Mirror Yes
Privacy Masking 8 areas
AUDIO
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
ALARM
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception
NETWORK
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF®(Profile S/Profile G/Profile T); CGI; Milestones; Genetec; RTMP; P2P
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 256G); NAS
Browser

IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later

Management Software Smart PSS, DSS
Cyber Security Configuration encryption; trusted execution; Digests; security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
CERTIFICATIONS
Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC:47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

PORT
RS485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input

1 channel (RCA port)

Audio Output 1 channel (RCA port)
Alarm Input 3 channels in: 5mA 3V–5V DC
Alarm Output 2 channel out: 300mA 12V DC
POWER
Power Supply 12V DC/POE+(802.3at)
Power Consumption

Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE)
Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7W (PoE+)

ENVIRONMENT
Operating Conditions –30°C to +60°C (–22°F to +140°F)
Operating Humidity ≤95%
Storage Conditions –30°C to +60°C (–22°F to +140°F)
Protection Grade IP67; IK10; anti-corrosion protection
STRUCTURE
Casing Metal+Plastic
Dimensions 286.1 mm × 111.3 mm (11.3" × 4.4")
Net Weight 2.75 kg (8.9 lb)
Gross Weight 4.5 kg (11.0 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
