IPC-PDBW82041-B360-ATC-S2 | TELECAMERA MULTI-LENTE DOME PANORAMICA - 4X5MP MULTI-SENSORE - SMART IR 30M - IVS - ANTI-CORROSIONE

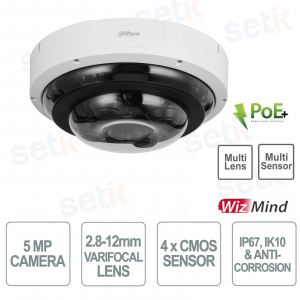

La telecamera panoramica Dahua IPC-PDBW82041-B360-ATC-S2 offre sorveglianza a 360° con quattro sensori CMOS da 5 MP e ottica motorizzata vari-focale 2.8–12 mm, garantendo immagini nitide anche in condizioni di scarsa illuminazione. Dotata di AI avanzata per rilevamento facciale, conteggio persone e protezione perimetrale, dispone di protezione IP67, IK10 e trattamento anti-corrosione per resistere agli agenti atmosferici, ideale per ambienti esterni come magazzini, stazioni e campus.
Specifiche principali:
- Visione panoramica 360° con 4 sensori 5 MP
- Ottica motorizzata 2.8–12 mm (campo visivo H: 100°–42°)
- Funzioni AI: face detection, people counting, perimeter protection
- Illuminatore IR fino a 30 m
- Resistenza IP67, IK10 e anti-corrosione
Ulteriori dettagli
✅ People Counting:

Scheda tecnica
CAMERA | |
Model | IPC-PDBW82041-B360-ATC-S2 |
Image Sensor | 1/2.7”5Megapixel progressive CMOS |
Effective Pixels | 2592 (H) × 1944 (V) |
ROM |
8 GB |
RAM | 4 GB |
Scanning System | Progressive |
Electronic Shutter | Auto/Manual 1/3 s–1/100,000 s |
Minimum Illumination |
0.005 Lux@F1.7(Color,30IRE) 0.0005 Lux@F1.7(B/W,30IRE) 0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | 30 m (98.4 ft) (IR LED) |
Illuminator On/Off Control | Auto / Manual |
Illuminator Number | 8 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–80° Rotation: 0°–355° |
LENS | |
Lens Type | Motorized vari-focal |
Mount Type | φ14 |
Focal Length | 2.8 mm–12 mm |
Max Aperture |
F1.7 |
Field of View |
H: 100°–42°; V: 74°–32°; D: 133°–53° |
Iris Type | Fixed |
Close Focus Distance | 0.8 m (2.6 ft) |
SMART EVENT | |
IVS | Abandoned object; missing object |
PROFESSIONALE, INTELLIGENT | |
IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
VIDEO | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+/Smart H.264+ |
Video Frame Rate |
Single Stream: |
Stream Capability | 3 streams |
Resolution |
Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps–17152kbps H.265: 12 kbps–10240 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR | DWDR |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Image Stabilization | Electronic Image Stabilization (EIS) |
Defog | Yes |
Image Rotation | Yes |
Mirror | Yes |
Privacy Masking | 8 areas |
AUDIO | |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
ALARM | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception |
NETWORK | |
Network | RJ-45 (10/100/1000 Base-T) |
SDK and API | Yes |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability | ONVIF®(Profile S/Profile G/Profile T); CGI; Milestone; Genetec; RTMP; P2P |
User/Host | 20 |
Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE9 and later |
Management Software | Smart PSS, DSS |
Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
CERTIFICATIONS | |
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
PORT | |
RS485 | 1 (baud rate range: 1200 bps–115200 bps) |
Audio Input |
1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 3 channel in: 5mA 3V–5V DC |
Alarm Output | 2 channel out: 300mA 12V DC |
POWER | |
Power Supply | 12V DC/POE+( 802.3at ) |
Power Consumption |
Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE) |
ENVIRONMENT | |
Operating Conditions | –30°C to +60°C (–22°F to +140°F) |
Operating Humidity | ≤95% |
Storage Conditions | –30°C to +60°C (–22°F to +140°F) |
Protection Grade | IP67; IK10; anti-corrosion protection |
STRUCTURE | |
Casing | Metal+Plastic |
Dimensions | 286.1 mm × 111.3 mm (11.3" × 4.4") |
Net Weight | 2.75 kg (8.9 lb) |
Gross Weight | 4.5 kg (11.0 lb) |
