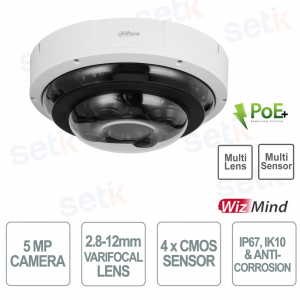

Dahua 4×5MP Anti-Corrosion AI Panoramic Camera with 360° View and Intelligent Detection

Dahua 4×5MP Anti-Corrosion AI Panoramic Camera with 360° View and Intelligent Detection
-57% New

IPC-PDBW82041-B360-ATC-S2 - The panoramic camera offers 360° surveillance with four 5 MP CMOS sensors and a 2.8–12 mm vari-focal motorized lens, ensuring a horizontal field of view from 100° to 42°. Equipped with advanced AI functions such as facial detection, people counting and perimeter protection, it ensures high-definition images even in low light conditions. The IP67 and IK10 protection structure, combined with the anti-corrosion treatment, makes it ideal for outdoor environments exposed to atmospheric agents. Thanks to FlexStream technology, it allows you to view multiple directions in a single video stream, optimizing bandwidth and storage. Ideal for warehouses, stations and campuses, it guarantees reliable security and professional performance. Dahua

Technical Data Sheet

Reference: IPC-PDBW82041-B360-ATC-S2

Brand: Dahua

EAN: 6923172547460

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-PDBW82041-B360-ATC-S2 | PANORAMIC DOME MULTI-LENS CAMERA - 4X5MP MULTI-SENSOR - SMART IR 30M - IVS - ANTI-CORROSION


Dahua

The Dahua IPC-PDBW82041-B360-ATC-S2 panoramic camera offers 360° surveillance with four 5 MP CMOS sensors and a 2.8–12 mm varifocal motorized lens, ensuring clear images even in low-light conditions. Equipped with advanced AI for facial detection, people counting, and perimeter protection, it features IP67, IK10 protection, and anti-corrosion treatment to withstand the elements, making it ideal for outdoor environments such as warehouses, stations, and campuses.

Main specifications:

- 360° panoramic view with 4 x 5 MP sensors

- Motorized optics 2.8–12 mm (field of view H: 100°–42°)

- AI functions: face detection, people counting, perimeter protection

- IR illuminator up to 30m

- IP67, IK10 and anti-corrosion resistance

Further details

Resolution:
Equipped with four 1/2.7” 5MP CMOS sensors, the camera offers a maximum resolution of 2592 × 1944 pixels per channel, ensuring sharp and detailed images even in low light conditions.
Optics :
2.8–12mm vari-focal motorized lens with F1.7 aperture, which ensures a wide horizontal field of view from 100° to 42°, vertical from 74° to 32° and diagonal from 133° to 53°, allowing flexible coverage of the areas to be monitored.
Perimeter Protection :
Using deep learning algorithms, the perimeter protection function accurately distinguishes between people and vehicles, reducing false alarms in sensitive areas and supporting detection of tripwires, intrusions, fast movement, abandoned or missing objects, loitering, crowds, and unauthorized parking.

People Counting:
Advanced technology for counting people in transit and within specific areas, with the ability to generate daily, monthly, and annual reports; ideal for monitoring flows in commercial and public spaces.
Face Detection:
Facial detection system with tracking, capture and shot optimization, including attribute analysis (gender, age, glasses, expressions, mask, beard) and recognition of 8 types of expressions, ensuring the best image for identification.
Network camera:
Multi-sensor IP camera with a single address for managing multiple video streams, compatible with ONVIF protocols and NVR recording platforms, optimized for secure transmissions thanks to encryption and anti-intrusion protection.
Anti-corrosion:
IP67 and IK10 rated construction, with optional anti-corrosion coating making it suitable for harsh, long-term outdoor environments such as ports, industrial zones and coastal areas.
WizMind:
Part of the Dahua WizSense range, designed to provide precise and reliable AI solutions thanks to deep learning algorithms, optimizing security in professional scenarios with intelligent video analytics functions.
Dahua Wizmind 4x5MP Panoramic Dome Multi-Lens Camera

Technical data sheet

ROOM
Model IPC-PDBW82041-B360-ATC-S2
Image Sensor 1/2.7”5Megapixel progressive CMOS
Effective Pixels 2592 (H) × 1944 (V)
ROM

8 GB

RAM 4 GB
Scanning System Progressive
Electronic Shutter Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination

0.005 Lux@F1.7(Color,30IRE)

0.0005 Lux@F1.7(B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft) (IR LED)
Illuminator On/Off Control Auto / Manual
Illuminator Number 8 (IR LED)
Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–80°

Rotation: 0°–355°

LENS
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.8 mm–12 mm
Max Openings

F1.7

Field of View

H: 100°–42°; V: 74°–32°; D: 133°–53°

Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
SMART EVENT
IVS Abandoned object; missing object
PROFESSIONAL, INTELLIGENT
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
VIDEO
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate

Single Stream:
Main stream: 2592 × 1944@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480
(1–30fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Flex Stream:
Main stream: 1600 × 1200@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 3296 × 2472@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 3 streams
Resolution

Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240);
Flex Stream: 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280×960); D1 (704 × 576/704 × 480); VGA (640 × 480; CIF (352 × 288/352 × 240)

Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–17152 kbps
H.265: 12 kbps–10240 kbps
Day/Night Auto (ICR)/Color/B/W
BLC

Yes

HLC

Yes

WDR DWDR
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Defog Yes
Image Rotation Yes
Mirror Yes
Privacy Masking 8 areas
AUDIO
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
ALARM
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception
NETWORK
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF®(Profile S/Profile G/Profile T); CGI; Milestones; Genetec; RTMP; P2P
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 256G); NAS
Browser

IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later

Management Software Smart PSS, DSS
Cyber Security Configuration encryption; trusted execution; Digests; security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
CERTIFICATIONS
Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC:47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

PORT
RS485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input

1 channel (RCA port)

Audio Output 1 channel (RCA port)
Alarm Input 3 channels in: 5mA 3V–5V DC
Alarm Output 2 channel out: 300mA 12V DC
POWER
Power Supply 12V DC/POE+(802.3at)
Power Consumption

Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE)
Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7W (PoE+)

ENVIRONMENT
Operating Conditions –30°C to +60°C (–22°F to +140°F)
Operating Humidity ≤95%
Storage Conditions –30°C to +60°C (–22°F to +140°F)
Protection Grade IP67; IK10; anti-corrosion protection
STRUCTURE
Casing Metal+Plastic
Dimensions 286.1 mm × 111.3 mm (11.3" × 4.4")
Net Weight 2.75 kg (8.9 lb)
Gross Weight 4.5 kg (11.0 lb)
