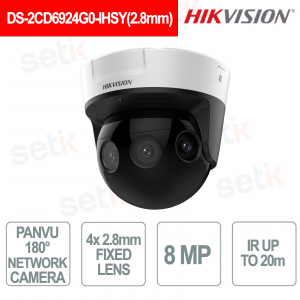

DS-2CD6924G0-IHSY PanoVu 8MP 180° 2.8mm Lens IR 20m PoE IP67 IK10 IP Camera - Hikvision

DS-2CD6924G0-IHSY PanoVu 8MP 180° 2.8mm Lens IR 20m PoE IP67 IK10 IP Camera - Hikvision

 
Optic calculation
TOUS DEHORS nuevo

DS-2CD6924G0-IHSY(2.8mm) - is an 8MP PanoVu panoramic IP camera designed to provide complete 180° video coverage, thanks to four 2.8mm fixed lenses with a wide field of view. It supports a panoramic resolution of up to 3840 × 2160 , Panorama + ePTZ mode and IR illumination up to 20 meters for effective surveillance even in low light conditions. DS-2CD6924G0-IHS
H.265+ compression, 3D DNR, Defog, and Digital WDR technologies, and a microSD slot up to 256 GB optimize video quality and storage. The IP67 and IK10 resistant construction, 802.3at PoE support, and operation down to -40°C make it suitable for professional video surveillance systems in both indoor and outdoor environments. Hikvision

Technical Data Sheet

referencia : DS-2CD6924G0-IHSY(2.8mm)

brand : Hikvision

EAN: 6942160437095

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2CD6924G0-IHSY(2.8mm) – 2.8mm FIXED LENS PTZ CAMERA 8MP - IR UP TO 15M

Hikvision

The Hikvision DS-2CD6924G0-IHSY 2.8 mm is an 8 MP PanoVu panoramic IP camera with 180° horizontal coverage, ideal for monitoring large areas with a single solution. It integrates four 2.8 mm fixed lenses, panoramic resolution up to 3840 × 2160 and IR illumination up to 20 meters . It supports Panorama, Original and Panorama + ePTZ modes, H.265+ compression and image enhancement functions such as 3D DNR, Defog and Digital WDR . The IP67 and IK10 protected structure, 802.3at PoE power supply and microSD slot up to 256 GB make it suitable for professional video surveillance systems even in outdoor environments.

Main features:

  • Resolution: 8 MP, 3840 × 2160
  • Lens: 2.8 mm, FOV 180°
  • IR: up to 20m
  • Compression: H.265+
  • Memory: microSD up to 256 GB
  • Protection: IP67, IK10
  • Power: PoE 802.3at

Further details

✅ Optics :
 It uses four 2.8mm fixed lenses with F1.4 aperture, designed to obtain a panoramic view with a 180° horizontal and 90° vertical field of view , ideal for monitoring very large areas by reducing blind spots.
✅ Resolution:
 The 1/1.8" Progressive Scan CMOS sensor allows you to acquire panoramic images up to 3840 × 2160 pixels (8 MP) ; Original modes at 1920 × 1080 and Panorama + ePTZ with channels up to 1920 × 1080 are also available.
✅ PTZ Camera :
The camera supports Panorama + ePTZ mode, which combines panoramic viewing with a digital ePTZ channel up to 1920 × 1080 , allowing you to digitally explore and zoom into specific areas of the scene while maintaining panoramic coverage.
✅ Audio :
It integrates 1 audio input and 1 audio output via 3.5 mm connectors and supports G.711, G.722.1, G.726, MP2L2 and PCM compression, as well as ambient noise filtering for more effective audio management in video surveillance systems.
✅ Deep Learning Function :
 It integrates the People Density analysis function, available in Panorama mode for versions without suffix (D) , allowing an intelligent analysis of crowding in the monitored areas.
✅ Network Camera :
As a PanoVu IP camera , it offers a 10/100/1000 Mbps RJ45 Gigabit Ethernet port, ONVIF Profile S and G compatibility, advanced network protocols, and up to 20 channels of simultaneous live viewing; it also supports NAS storage and ANR function.

Technical data sheet

DS-2CD6924G0-IHSY(2.8mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920×1080
Panorama mode: 3840 × 2160
Original mode: 1920 × 1080
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/100,000 s
Day & Night IR cut filter. Blue glass module to reduce ghost phenomenon.
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°
Lens
Lens Type Fixed focal lens, 2.8 mm four lenses
Focal Length & FOV horizontal FOV 180°, vertical FOV 90°
Lens Mount M16
Focus Manual, semi-automatic
Openings F1.4
Illuminator
Supplement Light Type IR, four IR LEDs
Supplement Light Range Up to 25 m
IR Wavelength 850 nm
Video
Main Stream Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)
Panorama mode: 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920× 1080), 60Hz: 30fps (3840 × 2160, 2560 × 1440, 1920× 1080)
Original mode: 50Hz: 25fps (1920×1080), 60Hz: 30fps (1920×1080)
Sub-Stream

Panorama mode: 50Hz: 25fps (1280 × 720, 640 × 360), 60Hz: 30fps (1280 × 720, 640 × 360)
Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Substream: H.265/H.264/MJPEG
Video Bit Rate

32 Kbps to 65 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Target Cropping

Yes (only panorama mode supports)
Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering

Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour
Simultaneous Live View

Up to 20 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
User/Host

Up to 32 users. 3 user levels: administrator, operator and user
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client

iVMS-4200
Web Browser IE8+
Image Settings

Rotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)

Digital WDR
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Interface
Ethernet Interface 1 RJ45 10M/100M/1000M Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256GB
Audio 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Event
Basic Event Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Deep Learning Function
People Density Yes (only panorama mode supports)
General
Power

12 VDC, 1.6 A, max. 24W, three-core terminal block
PoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A
Material

Aluminum alloy
Dimension

189.5 × 207.63 × 206.62 mm (7.46" × 8.17" × 8.13")
Package Dimension

340 × 261 × 293 mm (13.4" × 10.3" × 11.5")
Weight

Approx. 3 kg (6.6 lb.)
With Package Weight

Approx. 5 kg (11 lb.)
Storage Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

English
General Function

Anti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only original mode supports), password protection, watermark, IP address filter, pixel counter
Heater

Yes
Approval
EMC FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4);
RCM (AS/NZS CISPR 32:2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL: UL 62368-1,
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Environment

CE-RoHS (2011/65/EU)
REACH (Regulation (EC) No 1907/2006);
WEEE (2012/19/EU)
Protection

IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
