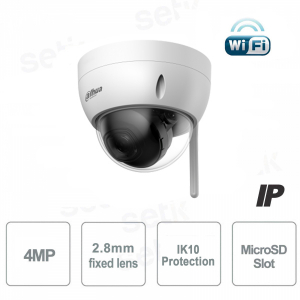

IPC-HDBW1430DE-SW | 2.8mm FIXED LENS IP CAMERA 4MP WI-FI MOTION DETECTION

The Dahua IPC-HDBW1430DE-SW 4 Megapixel IP camera combines advanced wireless connectivity and compact design, ideal for indoor environments where high-definition surveillance is required. Equipped with a 2.8 mm fixed lens, infrared up to 30 meters and a built-in microphone, it guarantees clear images and clear audio even in low-light conditions. The IP67 protection and IK10 housing ensure maximum resistance against water, dust and vandalism.
Main specifications:
- 2.8mm lens: wide visual coverage ideal for indoor environments
- 4MP resolution (2688×1520): detailed and sharp images
- Built-in Wi-Fi: easy installation without complex wiring
- Smart IR 30m: Automatic and intelligent night vision
- Built-in microphone: real-time ambient audio monitoring
- IP67 and IK10 protection: weatherproof and shockproof
Further details
✅ Alarm events:
✅ Built-in Wi-Fi connectivity:
✅ IP67 and IK10 protection:

Technical data sheet
Model | IPC-HDBW1430DE-SW |
Room | |
Image Sensor | 1/3” CMOS |
Max Resolution | 2560 (H) × 1440 (V) |
ROM/RAM | 16MB/64MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Minimum illumination | 0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
Y/N Ratio | >56dB |
Illumination Distance | 30m (98.43ft) (IR LED) |
Illuminator On/Off Control | Auto; Manual |
Illuminator Number | 3 (IR LEDs) |
Pan/Tilt/Rotation Range | Pan: 0–355° Tilt: 0–75° Rotation: 0–355° |
Lens | |
Lens Type | Fixed focal |
Mount Type | M12 |
Focal Length | 2.8mm |
Max Openings | F2.0 |
FOV-H | Horizontal: 90°; Vertical: 50°; Diagonal: 107° |
Iris Type | Fixed |
Close focus distance | 1.0 m (3.28 ft) |
Video | |
Compression | H.264B; H.264; H.264H; H.265 |
Smart Codec | Smart H.265+;Smart H.264+ |
Frame Rate | Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 704 × 576@ (1–25 fps) 704 × 480@ (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 2 streams |
Resolution | 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280×960); 720p (1280×720) |
Bitrate Control | CBR/VBR |
Video Bitrate | H264: 24kbps–4096kbps H265: 9kbps–4096kbps |
Day/Night | Auto (ICR)/Color/B/W |
Backlight Compensation | Yes |
WDR | DWDR |
White balance | Car; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Car |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region Of interest | Yes (4 areas) |
Smart Lighting | Yes |
Image Rotation | 0°/180° |
Mirror | Yes |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human) |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Wi-Fi |
Yes |
Wireless Range |
Up to 80 m (The performance varies based on actual environment) |
SDK and API |
Yes |
Cyber Security |
Video encryption; configuraton encryption; Digests; WSSE; account lockout; security logs; generating and importing of X.509 certfcaton; HTTPS; trusted boot; trusted execution; trusted upgrade |
Network Protocol | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP |
Interoperability | ONVIF® (Profile S/Profile G); CGI; P2P |
User/Host | 6 (Total bandwidth: 36M) |
Storage | Micro SD card (support max. 256 GB, sold separately) |
Browser | IE Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Client | iOS; Android |
Certifications | |
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
Electrical | |
Power Supply | 12V DC |
Power Consumption | Basic: 2W (12VDC); Max. (H.265+IR intensity): 4.9 W (12 VDC) |
Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% |
Storage conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
Ingress Protection | IP67; IK10 |
Casing | Metal |

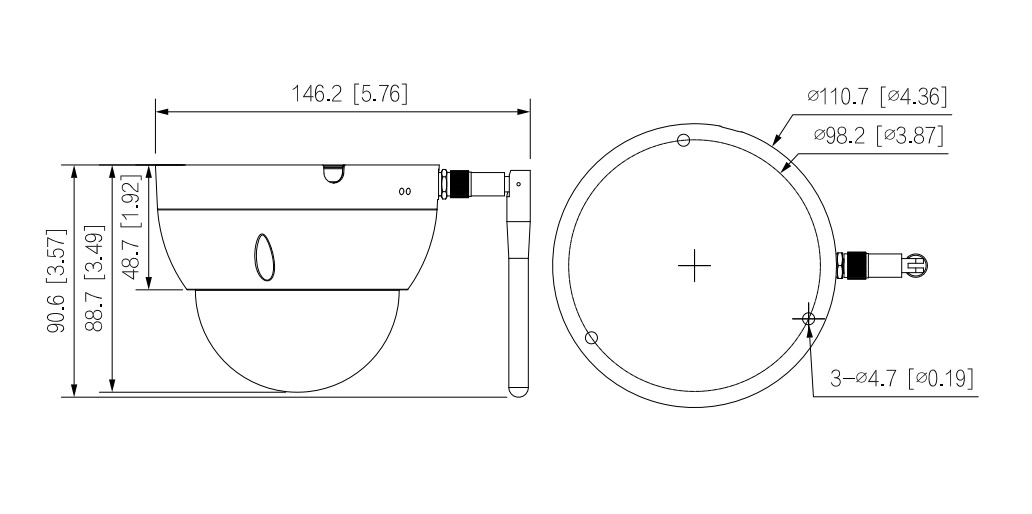

Dimensions | Φ110.7 mm × 88.7 mm (Φ4.33" × 3.49") |
Net Weight | 414g (0.91lb) |
Gross Weight | 592g (1.31lb) |
