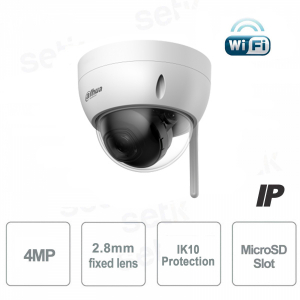

Dahua 4MP Dome Indoor/Outdoor Wi-Fi Camera with Night Vision

Dahua 4MP Dome Indoor/Outdoor Wi-Fi Camera with Night Vision
BEST PRICE -57%

IPC-HDBW1430DE-SW - is a 4MP Wi-Fi dome camera, ideal for indoor and outdoor surveillance. Equipped with a 1/3" CMOS sensor, it offers a maximum resolution of 2560×1440 pixels at 20 fps, ensuring clear and detailed images. The 2.8 mm fixed lens ensures a wide viewing angle, while the integrated IR illuminator allows effective night vision up to 30 meters . 2.4 GHz Wi-Fi connectivity allows for simple and flexible installation, without the need for complex wiring. The camera supports H.265+ video compression, reducing bandwidth consumption and storage space. In addition, it is equipped with a MicroSD card slot up to 256 GB for local recording. IP67 and IK10 protection guarantees resistance to atmospheric agents and vandalism, making it suitable for various security applications. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-HDBW1430DE-SW

Marke: Dahua

EAN: 6923172539984

Disponibilità: 38

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA: UNTER DEM EINSTANDSPREIS×


 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDBW1430DE-SW | 2.8mm FIXED LENS IP CAMERA 4MP WI-FI MOTION DETECTION

Dahua

The Dahua IPC-HDBW1430DE-SW 4 Megapixel IP camera combines advanced wireless connectivity and compact design, ideal for indoor environments where high-definition surveillance is required. Equipped with a 2.8 mm fixed lens, infrared up to 30 meters and a built-in microphone, it guarantees clear images and clear audio even in low-light conditions. The IP67 protection and IK10 housing ensure maximum resistance against water, dust and vandalism.

Main specifications:

- 2.8mm lens: wide visual coverage ideal for indoor environments

- 4MP resolution (2688×1520): detailed and sharp images

- Built-in Wi-Fi: easy installation without complex wiring

- Smart IR 30m: Automatic and intelligent night vision

- Built-in microphone: real-time ambient audio monitoring

- IP67 and IK10 protection: weatherproof and shockproof

Further details

2.8mm fixed optics:
It offers a wide viewing angle, ideal for monitoring indoor spaces such as offices, entrances or common rooms.
4MP Resolution:
Sharp and detailed images, perfect for recognizing faces, movements and objects even in variable lighting conditions.
Intelligent functions (Intelligence) :
Motion detection, behavioral analytics, and event management for active and reactive surveillance.

Alarm events:
Send immediate notifications in case of suspicious movements or intrusions detected, increasing the safety of the environment.

Built-in Wi-Fi connectivity:
Simple installation without the need for complex wiring, ideal for those who want flexibility and speed.
Motion Detection:
Automatic surveillance with intelligent recording activation.

IP67 and IK10 protection:
Maximum resistance against dust, water and vandalism, for safe and long-lasting use even in demanding contexts.

IPC-HDBW1430DE-SW dimensions

Technical data sheet

Model IPC-HDBW1430DE-SW
Room
Image Sensor 1/3” CMOS
Max Resolution 2560 (H) × 1440 (V)
ROM/RAM 16MB/64MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum illumination 0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on)
Y/N Ratio >56dB
Illumination Distance 30m (98.43ft) (IR LED)
Illuminator On/Off Control Auto; Manual
Illuminator Number 3 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0–355°
Tilt: 0–75°
Rotation: 0–355°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8mm
Max Openings F2.0
FOV-H Horizontal: 90°; Vertical: 50°; Diagonal: 107°
Iris Type Fixed
Close focus distance 1.0 m (3.28 ft)
Video
Compression H.264B; H.264; H.264H; H.265
Smart Codec Smart H.265+;Smart H.264+
Frame Rate Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 704 × 576@ (1–25 fps) 704 × 480@ (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280×960); 720p (1280×720)
Bitrate Control CBR/VBR
Video Bitrate H264: 24kbps–4096kbps H265: 9kbps–4096kbps
Day/Night Auto (ICR)/Color/B/W
Backlight Compensation Yes
WDR DWDR
White balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region Of interest Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/180°
Mirror Yes
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human)
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi

Yes

Wireless Range

Up to 80 m (The performance varies based on actual environment)

SDK and API

Yes

Cyber Security

Video encryption; configuraton encryption; Digests; WSSE; account lockout; security logs; generating and importing of X.509 certfcaton; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP
Interoperability ONVIF® (Profile S/Profile G); CGI; P2P
User/Host 6 (Total bandwidth: 36M)
Storage Micro SD card (support max. 256 GB, sold separately)
Browser IE Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certifications
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
Electrical
Power Supply 12V DC
Power Consumption Basic: 2W (12VDC); Max. (H.265+IR intensity): 4.9 W (12 VDC)
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage conditions –30 °C to +60 °C (–22 °F to +140 °F)
Ingress Protection IP67; IK10
Casing Metal
Dimensions Φ110.7 mm × 88.7 mm (Φ4.33" × 3.49")
Net Weight 414g (0.91lb)
Gross Weight 592g (1.31lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
