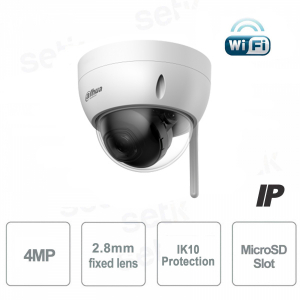

IPC-HDBW1430DE-SW - è una telecamera dome Wi-Fi da 4MP, ideale per la sorveglianza di ambienti interni ed esterni. Dotata di un sensore CMOS da 1/3", offre una risoluzione massima di 2560×1440 pixel a 20 fps, garantendo immagini nitide e dettagliate. L'ottica fissa da 2.8 mm assicura un ampio angolo di visione, mentre l'illuminatore IR integrato consente una visione notturna efficace fino a 30 metri. La connettività Wi-Fi 2.4 GHz permette un'installazione semplice e flessibile, senza la necessità di cablaggi complessi. La telecamera supporta la compressione video H.265+, riducendo il consumo di banda e spazio di archiviazione. Inoltre, è dotata di slot per scheda MicroSD fino a 256 GB per la registrazione locale. La protezione IP67 e IK10 garantisce resistenza agli agenti atmosferici e agli atti vandalici, rendendola adatta a diverse applicazioni di sicurezza. Dahua
Riferimento: IPC-HDBW1430DE-SW
Marca: Dahua
EAN: 6923172539984
Disponibilità: 31
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
IPC-HDBW1430DE-SW | TELECAMERA IP OTTICA FISSA 2.8mm 4MP WI-FI MOTION DETECTION

La telecamera IP Dahua IPC-HDBW1430DE-SW da 4 Megapixel combina connettività wireless avanzata e design compatto, ideale per ambienti interni dove è richiesta una sorveglianza ad alta definizione. Dotata di lente fissa da 2.8 mm, infrarossi fino a 30 metri e microfono integrato, garantisce immagini nitide e audio chiaro anche in condizioni di scarsa illuminazione. La protezione IP67 e l'alloggiamento IK10 assicurano massima resistenza contro acqua, polvere e atti vandalici.
Specifiche principali:
- Obiettivo 2.8mm: ampia copertura visiva ideale per ambienti interni
- Risoluzione 4MP (2688×1520): immagini dettagliate e nitide
- Wi-Fi integrato: installazione semplice e senza cablaggi complessi
- Smart IR 30m: visione notturna automatica e intelligente
- Microfono incorporato: monitoraggio audio ambientale in tempo reale
- Protezione IP67 e IK10: resistente a intemperie e urti
Ulteriori dettagli
✅ Eventi di allarme:
✅ Connettività Wi-Fi integrata:
✅ Protezione IP67 e IK10:

Scheda tecnica
| Model | IPC-HDBW1430DE-SW |
| Camera | |
| Image Sensor | 1/3” CMOS |
| Max Resolution | 2560 (H) × 1440 (V) |
| ROM/RAM | 16 MB/64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum illumination | 0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0–355° Tilt: 0–75° Rotation: 0–355° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max Aperture | F2.0 |
| FOV-H | Horizontal: 90°; Vertical: 50°; Diagonal: 107° |
| Iris Type | Fixed |
| Close focus distance | 1.0 m (3.28 ft) |
| Video | |
| Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+;Smart H.264+ |
| Frame Rate | Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 704 × 576@ (1–25 fps) 704 × 480@ (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| Backlight Compensation | Yes |
| WDR | DWDR |
| White balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region Of interest | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Wi-Fi |
Yes |
| Wireless Range |
Up to 80 m (The performance varies based on actual environment) |
| SDK and API |
Yes |
| Cyber Security |
Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade |
| Network Protocol | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP |
| Interoperability | ONVIF® (Profile S/Profile G); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | Micro SD card (support max. 256 GB, sold separately) |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certifications | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
| Electrical | |
| Power Supply | 12V DC |
| Power Consumption | Basic: 2 W (12 VDC); Max. (H.265+IR intensity): 4.9 W (12 VDC) |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
| Ingress Protection | IP67; IK10 |
| Casing | Metal |

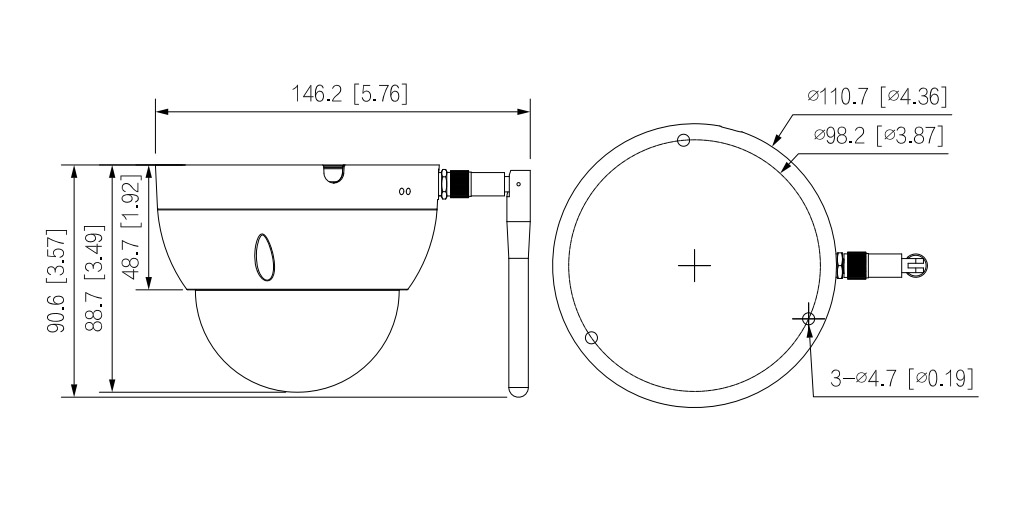

| Dimensions | Φ110.7 mm × 88.7 mm (Φ4.33" × 3.49") |
| Net Weight | 414 g (0.91 lb) |
| Gross Weight | 592 g (1.31 lb) |
