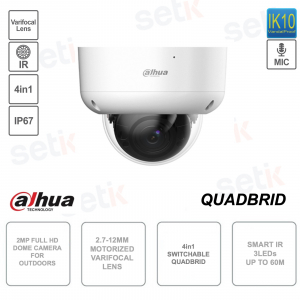

Dahua 2MP HDCVI Dome Camera with Motorized Lens and Night Vision

Dahua 2MP HDCVI Dome Camera with Motorized Lens and Night Vision
BEST PRICE -57%

HAC-HDBW1200RA-Z-S6 - is a 2MP HDCVI dome camera designed to provide high definition images even in difficult environments. Equipped with a 2.7–12 mm motorized lens, it allows flexible and precise framing. Thanks to Starlight technology and the integrated IR illuminator up to 30 m, it ensures visibility even in low light conditions. It supports the main video technologies (CVI / TVI / AHD / CVBS) for maximum compatibility and is ideal for outdoor installations thanks to IP67 protection and IK10 resistance. A solid and efficient solution for professional video surveillance. Dahua

Technical Data Sheet

referencia : HAC-HDBW1200RA-Z-S6

brand : Dahua

EAN: 6923172596659

Disponibilità: 25

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA: DEBAJO DEL COSTE×


 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HDBW1200RA-Z-S6 | 4IN1 OUTDOOR CAMERA - 2.7-13.5mm 2MP VARIFOCAL LENS S6 VERSION

Dahua

The Dahua HAC-HDBW1200RA-Z-S6 is a 2MP HDCVI dome camera designed to provide high-definition images in indoor and outdoor environments. With 2.7–12 mm varifocal motorized lens and Smart IR night vision technologies up to 60 meters, it ensures clear surveillance even in low-light conditions. The compact design and IP67 and IK10 resistant body make it ideal for residential, commercial and industrial applications.

Main specifications:

- Full HD 1080p resolution (2 Megapixel)

- 2.7–12 mm motorized varifocal lens

- Smart IR night vision up to 60m

- Compatible with CVI/CVBS/AHD/TVI (switchable)

- IP67 (waterproof) and IK10 (vandal-proof) rugged case

- Image functions: DWDR, BLC, HLC, 2D DNR

- PoE function: simplified power supply and data transmission with a single cable

- Quick installation with support for coaxial cable up to 800m in 1080p

Further details

Motorized 2.7–12 mm varifocal lens:
It allows you to automatically adjust the viewing angle directly remotely, adapting the framing based on the distance of the area to be monitored, without having to physically intervene on the camera.
Resolution 2MP (1080p):
The 1/2.7” CMOS sensor delivers high-definition images (1920x1080), ideal for recognizing important details such as faces and license plates, even in complex lighting conditions.
4in1 technology: CVI / CVBS / AHD / TVI switchable :
Compatibility with major video transmission standards allows the camera to be connected to different DVRs, making it perfect for new systems or for upgrading existing systems.

IP67 & IK10 Protection:
The camera is fully dustproof and can withstand strong jets of water (IP67), as well as offering IK10 certified shock protection, making it ideal for installations in outdoor or public environments at risk of vandalism.

Built-in Microphone:
Records ambient audio in sync with video, helping you get a more complete record of the events you're monitoring without the need for separate audio devices.

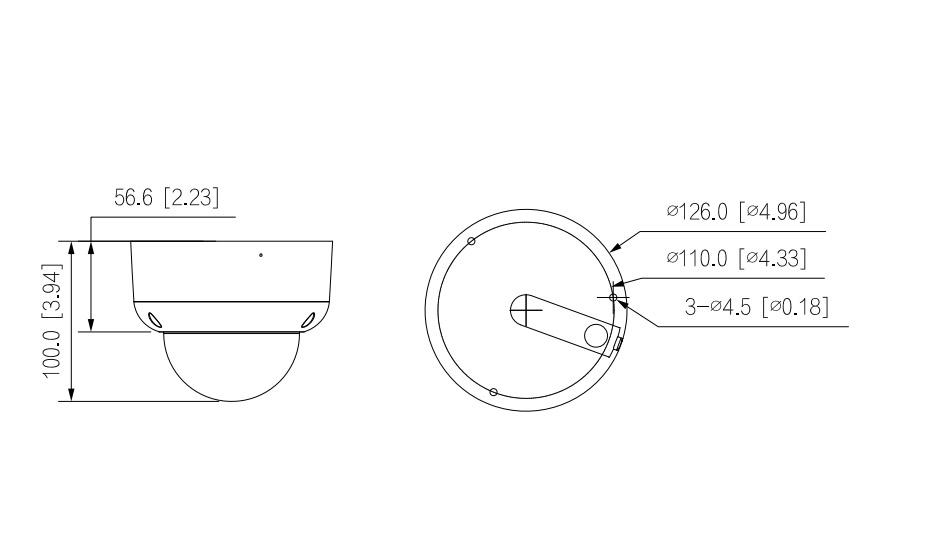

HAC-HDBW1200RA-Z-S6 dimensions

Technical data sheet

Model HAC-HDBW1200RA-Z-S6
Room
Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination 0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
Y/N Ratio >65dB
Illumination Distance 60 m (196.85 ft)
Illuminator On/Off Control Car
Illuminator Number 3 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7mm–12mm
Max. Openings F1.6
Field of View H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
Video
Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR DWDR
White Balance Auto; White balance area
Gain Control Car
Gain Control 3D NR
Image Rotation Smart IR
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12VDC ±30%
Power Consumption

Max 4.1W (12VDC, IR on)

Environment
Operating Conditions –30 °C to +60 °C (–22 °F to 140 °F)
Operating Humidity <95% (RH), non-condensing
Storage conditions –30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Ingress Protection IP67; IK10
Anti-corrosion Level Basic Protection
Structure
Casing Metal
Dimensions φ126mm × 100mm (φ4.96" × 3.94")
Net Weight 0.63 kg (1.38 lb)
Gross Weight 0.81 kg (1.78 lb)
Installation Wall mount; ceiling mount; vertical pole mount
